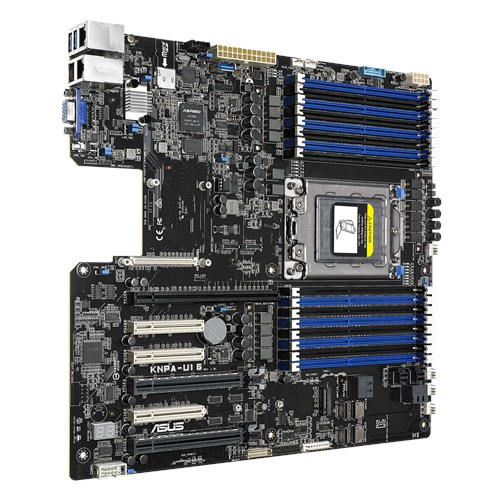

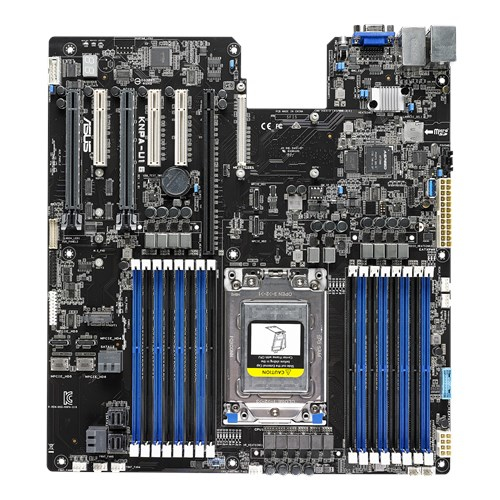

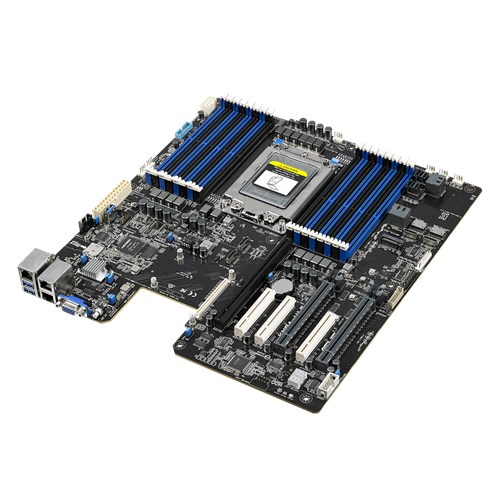

ASUS KNPA-U16(+ASMB9-IKVM) System on Chip Socket SP3
Model KNPA-U16(+ASMB9-IKVM)Part no. 90SB06V0-M0UAY0EAN 4718017102667
38 specifications
- Weight1.4 kg
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSerial Attached SCSI (SAS)
- On-board graphics card memory64 MB
- USB 2.0 connectors0
Overview
- Weight
- 1.4 kg
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- Serial Attached SCSI (SAS)
- On-board graphics card memory
- 64 MB
- USB 2.0 connectors
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- KNPA-U16(+ASMB9-IKVM)
- Part number
- 90SB06V0-M0UAY0
- EAN / UPC
- 4718017102667
- Also known as
- ASUS KNPA-U16(+ASMB9-IKVM) System on Chip Socket SP3
Specifications
38 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD EPYC |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 2 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 8 |

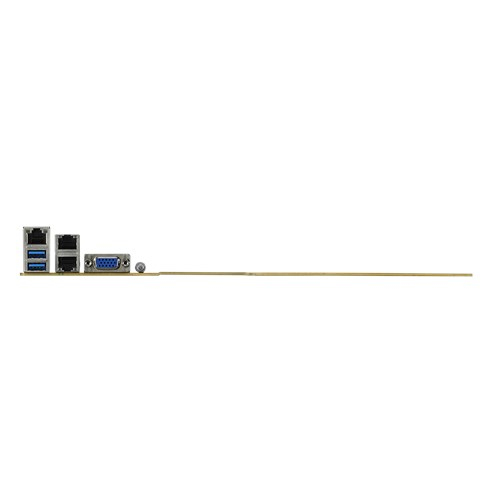

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Motherboard chipset | System on Chip |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128MB |
| Weight | 1.4 kg |
| Number of DIMM slots | 16 |
| Number of processors supported | 1 |
