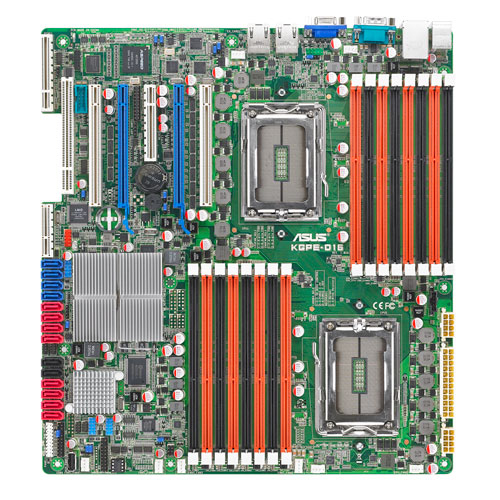

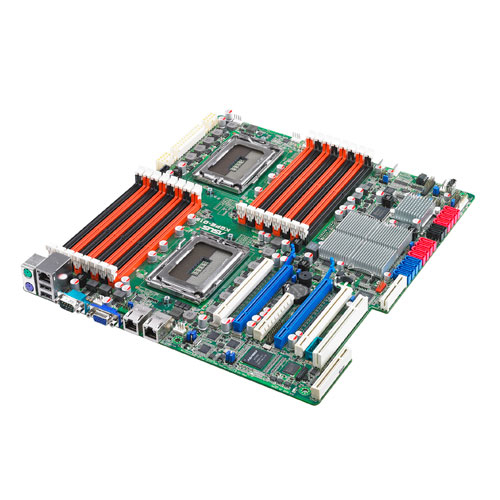

ASUS KGPE-D16-G0UAY00Z AMD SR5690 Socket G34 SSI EEB
Model KGPE-D16-G0UAY00ZPart no. 90-MSVD10-G0UAY00Z
28 specifications
- Processor manufacturerAMD
- Supported memory clock speeds800,1066,1333 MHz
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- LAN controllerIntel® 82574L
Overview
- Processor manufacturer
- AMD
- Supported memory clock speeds
- 800,1066,1333 MHz
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82574L
- Brand
- ASUS
- Category
- Motherboard
- Model
- KGPE-D16-G0UAY00Z
- Part number
- 90-MSVD10-G0UAY00Z
- Also known as
- ASUS KGPE-D16-G0UAY00Z AMD SR5690 Socket G34 SSI EEB
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket G34 |
Memory
| Specification | Value |
|---|---|
| Supported memory clock speeds | 800,1066,1333 MHz |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | AMD SR5690 |
| Certification | CE, FCC |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 330.2 mm |
