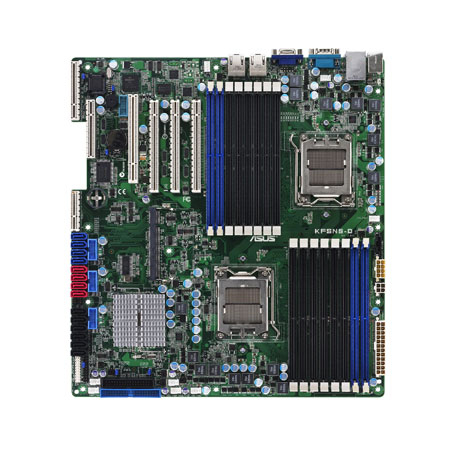

ASUS KFSN5-D NVIDIA nForce Pro 3600 Socket F (1207) SSI EEB
Model KFSN5-DPart no. 90-MSVCA0-G0UAY00ZEAN 610839165407
46 specifications
- Processor manufacturerAMD
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesSATA II
- On-board graphics card memory32 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- SATA II
- On-board graphics card memory
- 32 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- KFSN5-D
- Part number
- 90-MSVCA0-G0UAY00Z
- EAN / UPC
- 610839165407, 4719543165409, 6108391654070
- Also known as
- ASUS KFSN5-D NVIDIA nForce Pro 3600 Socket F (1207) SSI EEB
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
| Processor number of cores supported | 2, 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 533,667,800 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 32 MB |
| On-board graphics card model | XGI Z9S |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 8 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Marvell 88E1116 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | NVIDIA nForce Pro 3600 |
| Certification | - FCC, CFR47 Part 15, Class A, Class B - CE, EN55022 & EN55024 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| PCI slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 1GB, 2GB, 4GB, 512MB |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
