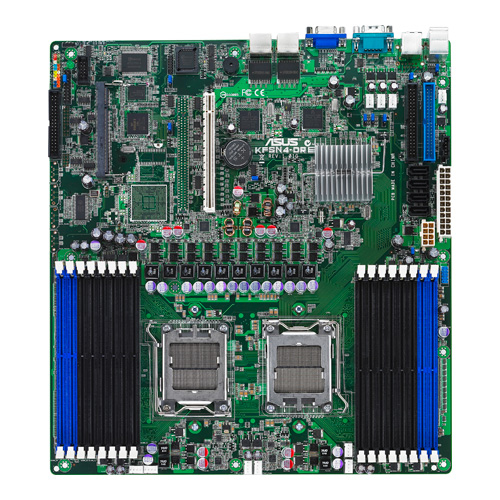

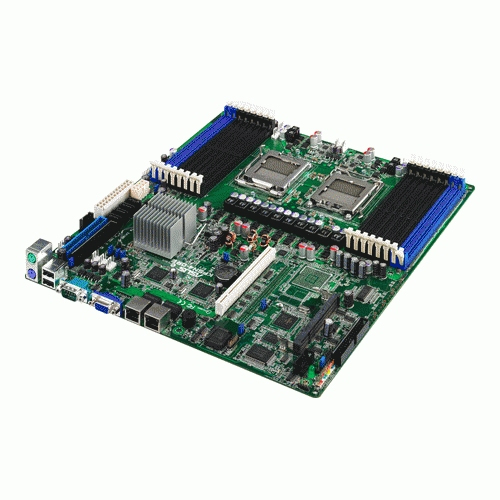

ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB
Model KFSN4-DRE/IKVM/ISTEAN 4719543173114
22 specifications
- Processor manufacturerAMD
- Maximum internal memory64 GB
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors2
- LAN controllerBroadcom BCM5721
- Motherboard form factorSSI EEB
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 64 GB
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 2
- LAN controller
- Broadcom BCM5721
- Motherboard form factor
- SSI EEB
- Brand
- ASUS
- Category
- Motherboard
- Model
- KFSN4-DRE/IKVM/IST
- Part numbers
- KFSN4-DRE/IKVM/IST, 90-MSVBSU-G0UAY00Z
- EAN / UPC
- 4719543173114
- Also known as
- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB
Specifications
22 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Certification | US (FCC, CFR47 Part 15, Cl. B) Europe (CE, EN55022 & EN55024) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
What people say
Reviews & ratings
ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB
No reviews yet
Be the first to tell others how ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB
All motherboard comparisons- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsASUS KFSN5-D/IST Socket F (1207) SSI EEBCompare specs
- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATXCompare specs

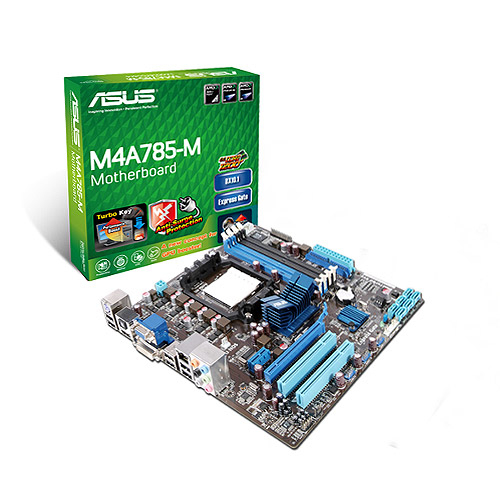

- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsASUS M4A785-M AMDCompare specs

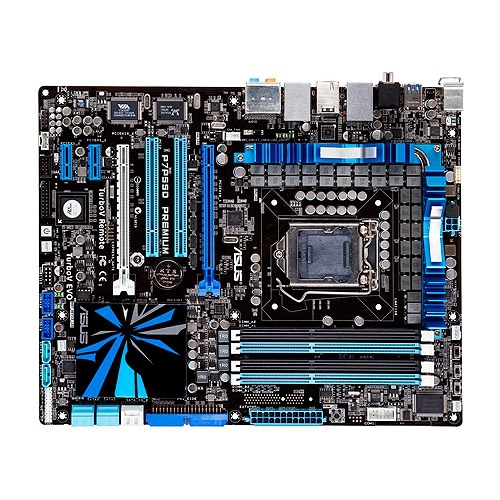

- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsASUS P7P55D PremiumCompare specs
- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsMSI NF520T-C35 motherboard Socket AM2 ATXCompare specs
- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsMSI 770T-C45 motherboard AMD 770 Socket AM2 ATXCompare specs

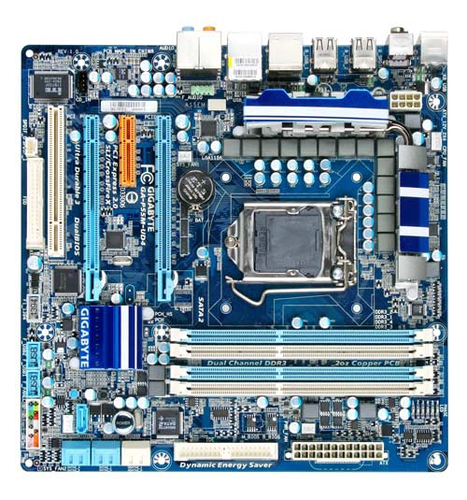

- ASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEB vsGIGABYTE GA-P55M-UD4 motherboard Intel® P55 LGA 1156 (Socket H) micro ATXCompare specs
