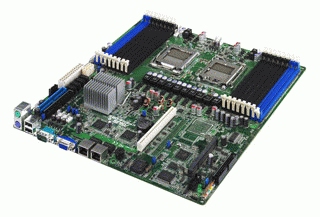

ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB
Model KFSN4-DREPart no. 90-MSVBS0-G0UAY00ZEAN 610839156719
23 specifications
- Processor manufacturerAMD
- ECC сompatibilityECC
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- LAN controllerBroadcom BCM5721
Overview
- Processor manufacturer
- AMD
- ECC сompatibility
- ECC
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- LAN controller
- Broadcom BCM5721
- Brand
- ASUS
- Category
- Motherboard
- Model
- KFSN4-DRE
- Part numbers
- 90-MSVBS0-G0UAY00Z, KFSN4-DRE
- EAN / UPC
- 610839156719, 4719543156711
- Also known as
- ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB
Specifications
23 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Broadcom BCM5721 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | NVIDIA nForce Pro 2200 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| RAID controller type | SATA |
What people say
Reviews & ratings
ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB
No reviews yet
Be the first to tell others how ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB

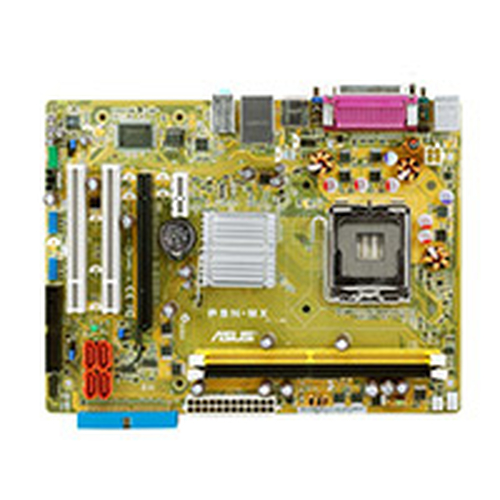

All motherboard comparisons- ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB vsASUS P5N-MX - uATX, LGA775Compare specs

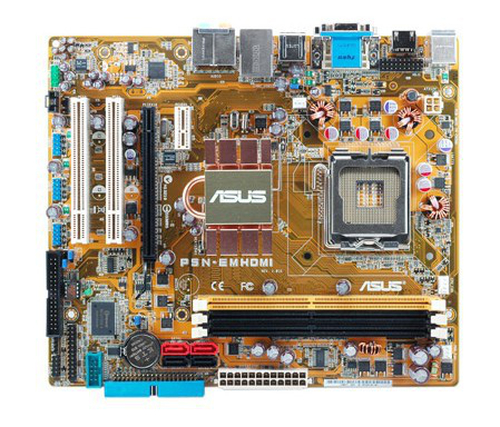

- ASUS KFSN4-DRE NVIDIA nForce Pro 2200 Socket F (1207) SSI EEB vsASUS P5N-EM HDMICompare specs
