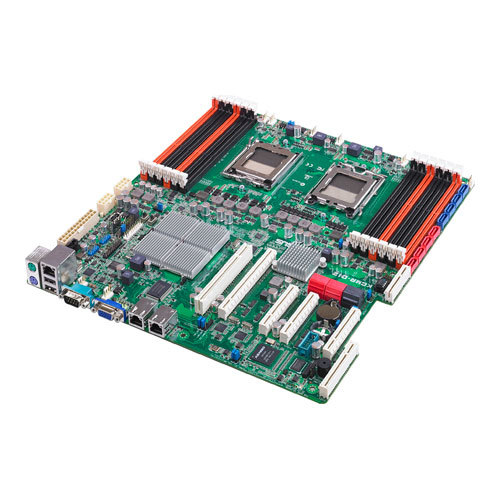

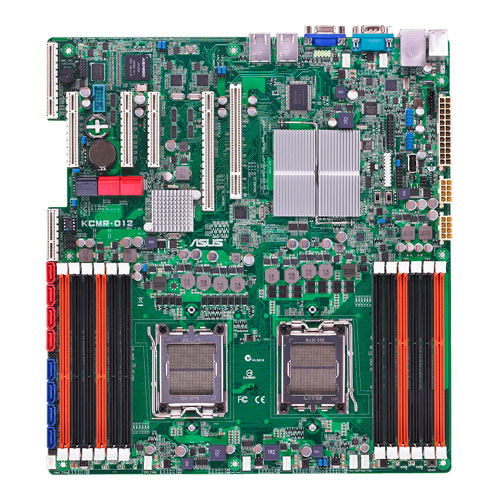

ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB
Model KCMR-D12EAN 610839177561
26 specifications
- Processor socketSocket F (1207)
- Memory channelsDual-channel
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- LAN controllerIntel® 82574L
- Motherboard form factorSSI EEB
Overview
- Processor socket
- Socket F (1207)
- Memory channels
- Dual-channel
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- LAN controller
- Intel® 82574L
- Motherboard form factor
- SSI EEB
- Brand
- ASUS
- Category
- Motherboard
- Model
- KCMR-D12
- Part numbers
- KCMR-D12, 90-MSVD81-G0UAY0YZ, 90-MSVD81-G0UAY00Z
- EAN / UPC
- 610839177561, 4719543177563
- Also known as
- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB
Specifications
26 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | Socket F (1207) |
Memory
| Specification | Value |
|---|---|
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 667,800,1066,1333 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | AMD SR5670 |
| Certification | FCC, CE |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM |
Other features
| Specification | Value |
|---|---|
| Supported RDIMM module capacity | 16GB, 2GB, 4GB, 8GB |
| Number of DIMM slots | 12 |
What people say
Reviews & ratings
ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB
No reviews yet
Be the first to tell others how ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB
All motherboard comparisons- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsASUS P6X58-E WSCompare specs

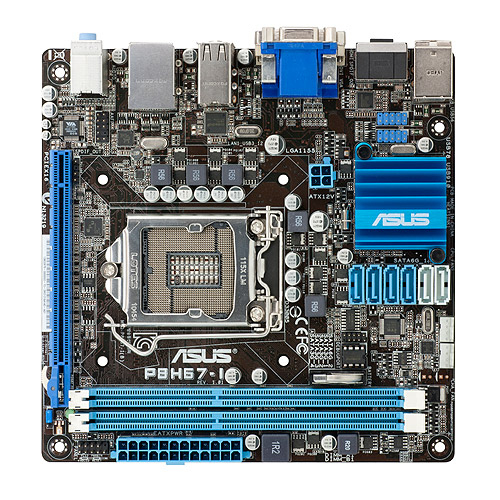

- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsASUS P8H67-I R3.0Compare specs
- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsASUS P8Q67-M DO R3Compare specs
- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsASUS P8P67 DELUXE Rev.3.0Compare specs
- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsGIGABYTE GA-870A-USB3 motherboard Socket AM3 ATXCompare specs

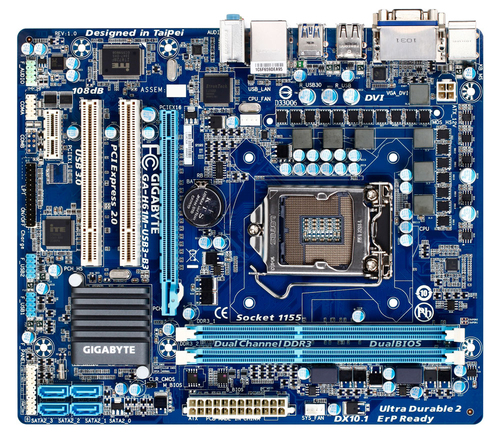

- ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB vsGIGABYTE GA-H61M-USB3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
