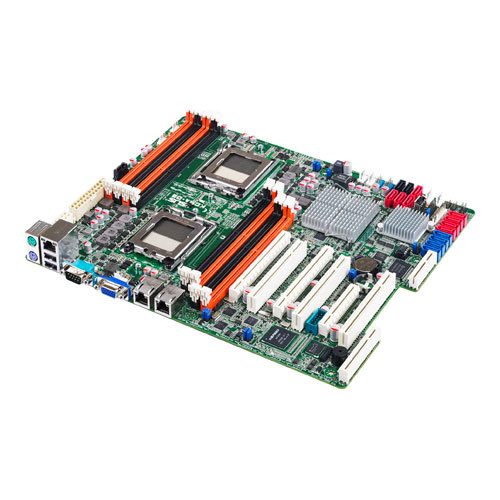

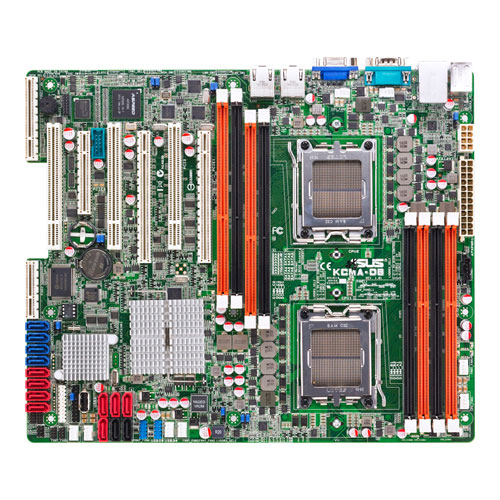

ASUS KCMA-D8 motherboard AMD SR5670 Socket F (1207) Extended ATX
Model KCMA-D8Part no. 90-MSVD92-G1UAY0YZEAN 5711045728693
38 specifications
- Processor manufacturerAMD
- Number of memory slots8
- RAID levels0, 1, 10
- Maximum graphics card memory8 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity1
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 8
- RAID levels
- 0, 1, 10
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- KCMA-D8
- Part numbers
- 90-MSVD92-G1UAY0YZ, KCMA-D8, 90-MSVD92-G0UAY0YZ
- EAN / UPC
- 5711045728693, 198586222722, 610839177646, 5052584597624 +3 more
- Also known as
- ASUS KCMA-D8 motherboard AMD SR5670 Socket F (1207) Extended ATX
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket F (1207) |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 8 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 16GB, 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 12 |
| Power fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Motherboard chipset | AMD SR5670 |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Linux |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 254 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
