ASUS K8V-MX VIA K8M800 Socket 754 micro ATX
Model K8V-MXPart no. 90-M9B0CT-G0EAYKZEAN 4719543134122
13 specifications
- Processor manufacturerAMD
- Maximum internal memory2 GB
- Motherboard form factormicro ATX
- Expansion slots1 x AGP8X 3 x PCI
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 2 GB
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x AGP8X 3 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- K8V-MX
- Part number
- 90-M9B0CT-G0EAYKZ
- EAN / UPC
- 4719543134122
- Also known as
- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX
Specifications
13 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Flash memory | 4 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8201CL 10/100M LAN PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA K8M800 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X 3 x PCI |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe Anti-Virus Software ASUS LiveUpdate |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 245 x 245 |
| Audio output | ADI AD1988 SoundMAX 6-channel CODEC |
| I/O ports | Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connector supports additional 4 USB ports 24-pin ATX Power connector 4-pin ATX 12V Power connector CD / AUX audio in Chassis Intrusion CPU / Chassis FA |
What people say
Reviews & ratings
ASUS K8V-MX VIA K8M800 Socket 754 micro ATX
No reviews yet
Be the first to tell others how ASUS K8V-MX VIA K8M800 Socket 754 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS K8V-MX VIA K8M800 Socket 754 micro ATX

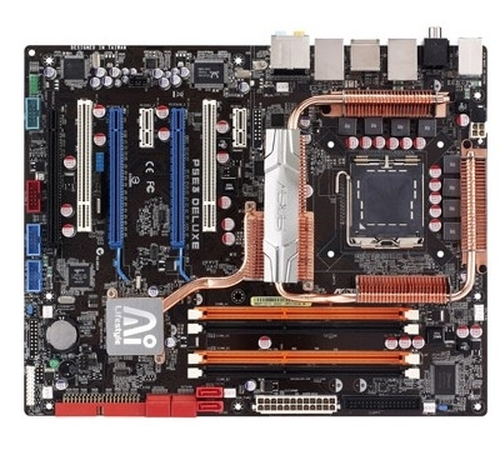

All motherboard comparisons- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsASUS P5E3 Deluxe / DDR3Compare specs
- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsASUS P5GC-VM PROCompare specs
- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsASUS P5E3 DeluxeCompare specs

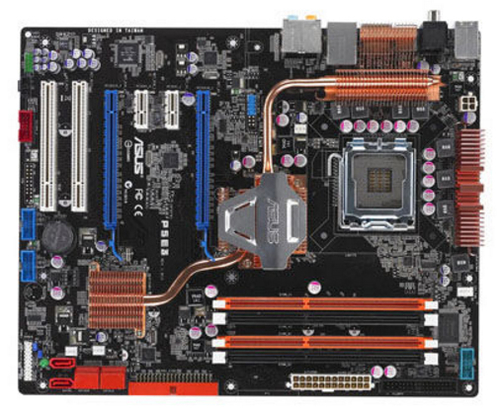

- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsASUS P5E3 LGA 775 (Socket T) ATXCompare specs

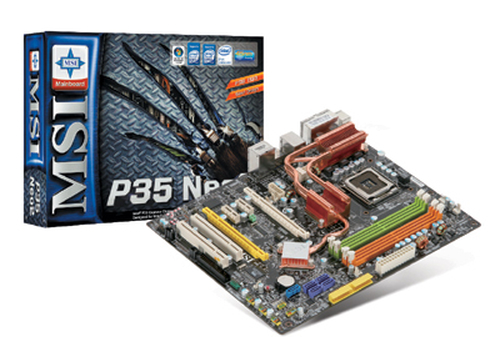

- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsMSI P35 Neo2-FIRCompare specs
- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsMSI 945GT Speedster-A4V - u-ATXCompare specs

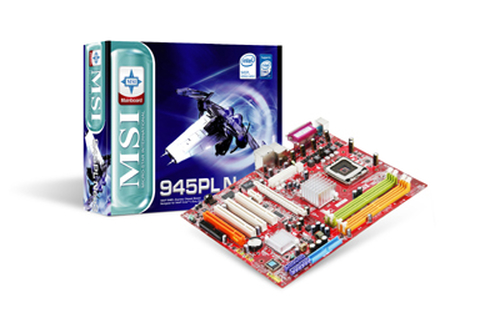

- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsMSI 945PL Neo3-FCompare specs

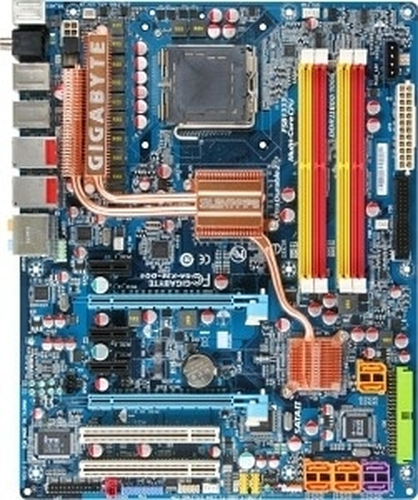

- ASUS K8V-MX VIA K8M800 Socket 754 micro ATX vsGIGABYTE GA-X38-DQ6, Intel® X38 + ICH9R ChipsetCompare specs
