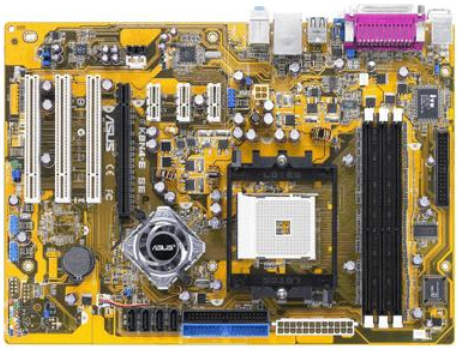

ASUS K8N4-E motherboard Socket 754 ATX
Model K8N4-EEAN 4719543129647
53 specifications
- Processor manufacturerAMD
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesSATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- K8N4-E
- Part number
- K8N4-E
- EAN / UPC
- 4719543129647
- Also known as
- ASUS K8N4-E motherboard Socket 754 ATX
Specifications
53 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
| Compatible processor series | AMD Athlon, AMD Sempron |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speeds | 266,333,400 MHz |
| Maximum internal memory | 3 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| WiFi-AP antenna jack | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E81111Gigabit LAN PHY |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
| Expansion slots | 1 x PCI Express x16 slot for discrete graphics card 3 x PCI Express x1 3 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | Phoenix |
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| I/O ports | Back Panel I/O Ports 1 x Parallel 1 x Coaxial S/PDIF Output 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x RJ45 4 x USB 2.0/1.1 6-Channel Audio I/O Internal I/O Connectors USB 2.0 connectors supports additional 6 USB 2.0 ports 1 x GAME/MIDI connector CPU / Chassis / Power Fan / Chipset Fan connectors Chassis |
