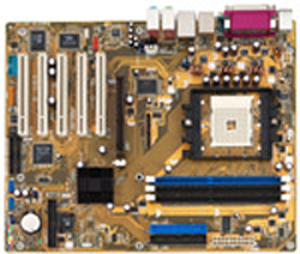

K8N-E DELUXE RETAIL
Model K8N-E DELUXE RETAILPart no. K8N-EDELUXE
10 specifications
- Processor manufacturerAMD
- Maximum internal memory3 GB
- Motherboard form factorATX
- Expansion slots1 x AGP8X (1.5V) 5 x PCI
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 3 GB
- Motherboard form factor
- ATX
- Expansion slots
- 1 x AGP8X (1.5V) 5 x PCI
- Brand
- ASUS
- Category
- Motherboard
- Model
- K8N-E DELUXE RETAIL
- Part number
- K8N-EDELUXE
- Also known as
- ASUS K8N-E DELUXE RETAIL Socket 754 ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Chipset built-in Gigabit MAC with external Marvell PHY supporting - 10/100/1000 BASE-T Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP8X (1.5V) 5 x PCI |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek ALC850, 8-channel CODEC |
| I/O ports | 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x 8-channel Audio I/O 1 x RJ45 1 x Optical S/PDIF Output 1 x Coaxial S/PDIF Output 4 x USB 2.0/1.1 1 x IEEE1394 - 2 x USB 2.0 connector supports additional 4 USB 2.0 ports - CPU / Chassis / Power FAN connectors - 20-pin ATX Power connector - |
