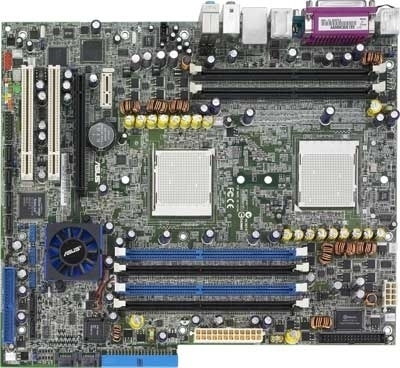

ASUS K8N-DL, Dual AMD Opteron
Model K8N-DL, Dual AMD OpteronPart no. 90-MSVAQ0-G0UAYZ
31 specifications
- Processor manufacturerAMD
- Number of memory slots6
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Networking featuresFast/Gigabit Ethernet
- Motherboard form factorExtended ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 6
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Networking features
- Fast/Gigabit Ethernet
- Motherboard form factor
- Extended ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- K8N-DL, Dual AMD Opteron
- Part number
- 90-MSVAQ0-G0UAYZ
- Also known as
- ASUS K8N-DL, Dual AMD Opteron Socket 940 Extended ATX
Specifications
31 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 940 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 6 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Fast/Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | Extended ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 2000 Professional Microsoft Windows XP Microsoft Windows Server 2003 Linux Operating System (RedHat WS3.0, SuSE v9.2) |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | PCI-E x16 2 x 32-bit/33MHz PCI |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security 2005 |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
