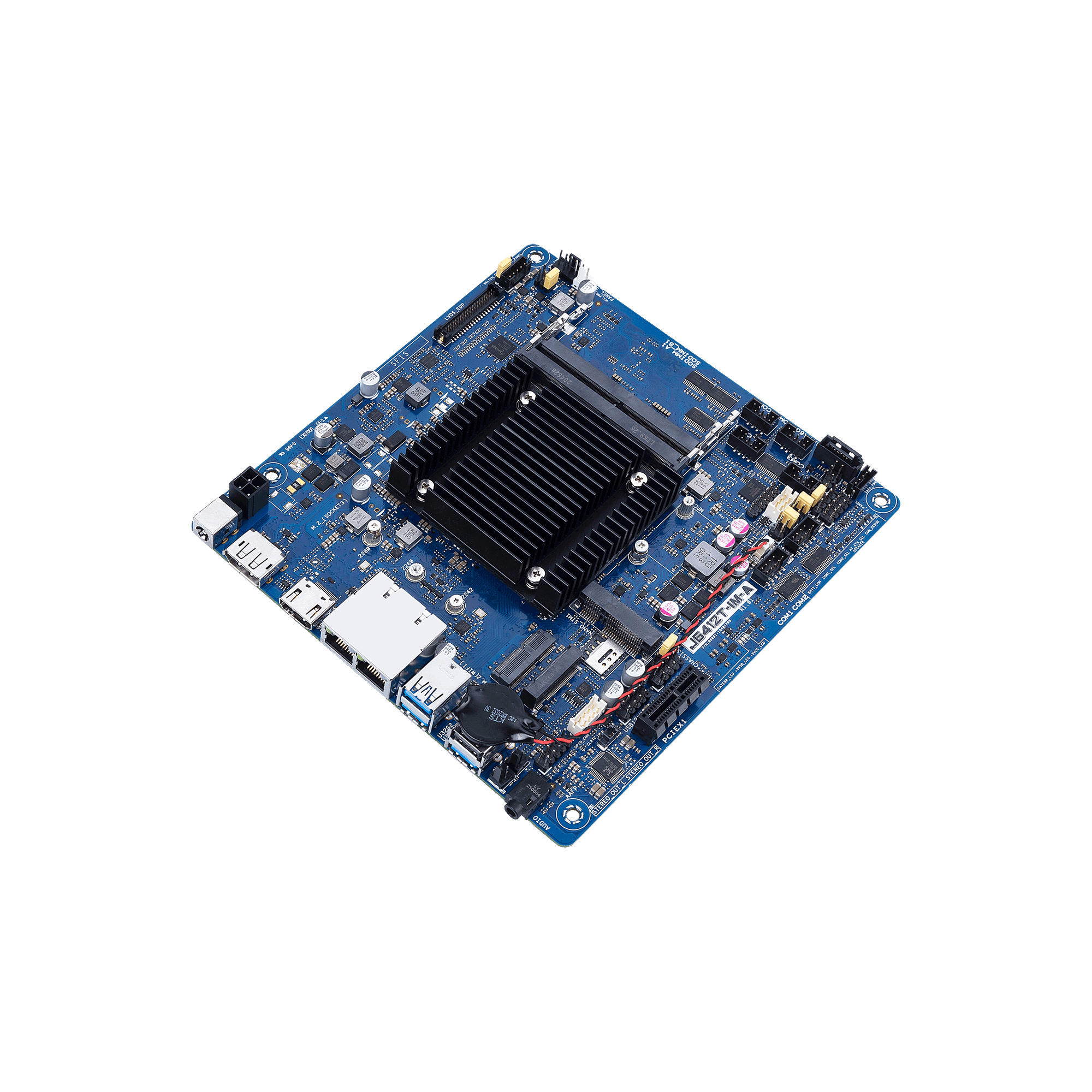

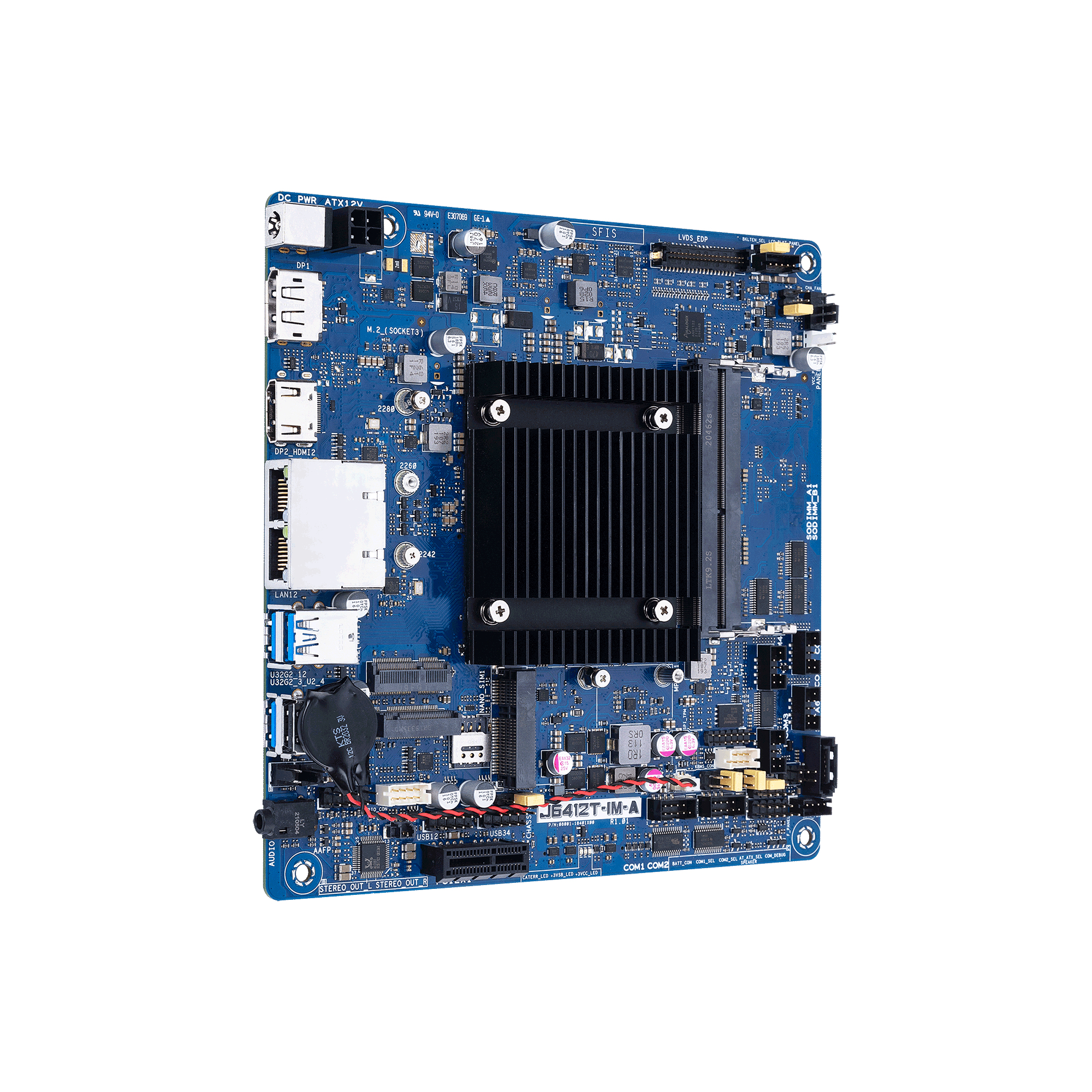

J6412T-IM-A mini ITX
Model J6412T-IM-APart no. 90ME04B0-M0CCY0EAN 195553796293
48 specifications
- ProcessorJ6412
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Maximum resolution4096 x 2160 pixels
- USB 2.0 connectors2
- USB 2.0 ports quantity1
Overview
- Processor
- J6412
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Maximum resolution
- 4096 x 2160 pixels
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- J6412T-IM-A
- Part number
- 90ME04B0-M0CCY0
- EAN / UPC
- 195553796293, 4711081796299
- Also known as
- ASUS J6412T-IM-A mini ITX
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron® |
| Processor model | J6412 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200 MHz |
| Maximum internal memory | 32 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 1 |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 6 |
| TPM connector | Yes |

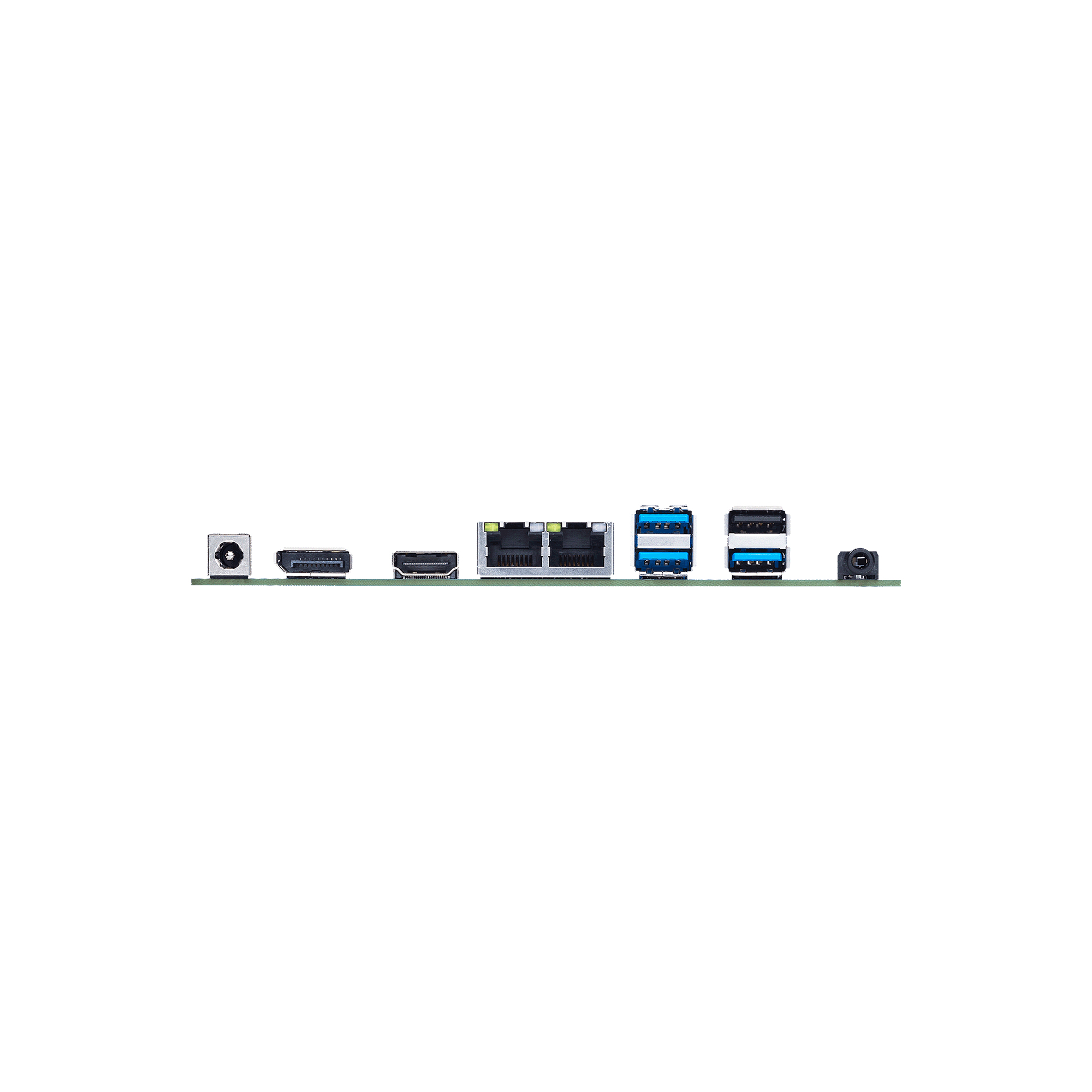

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
| Certification | CE, FCC, VCCI, BSMI, RCM CE-LVD |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
