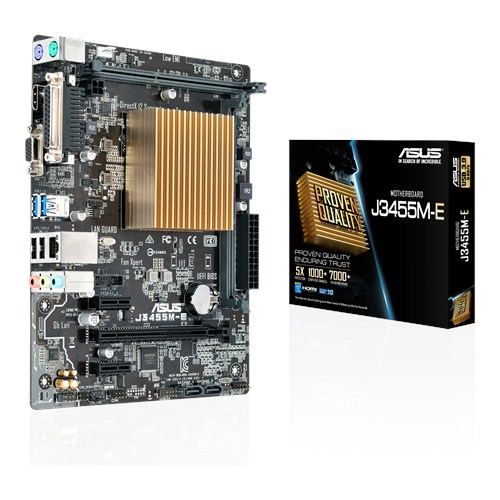

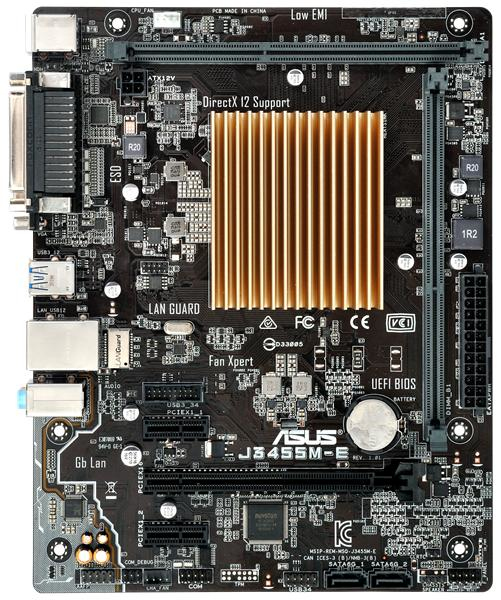

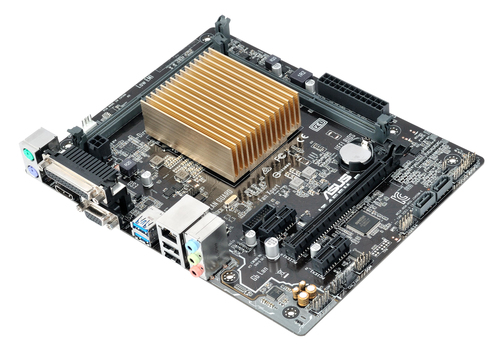

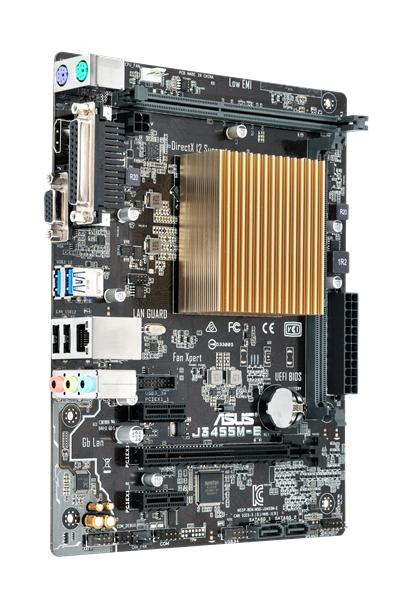

ASUS J3455M-E micro ATX

ASUS J3455M-E micro ATX

Model J3455M-EPart no. 90MB0RS0-M0EAY0EAN 889349539170

63 specifications
  • ProcessorJ3455
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum resolution3840 x 2160 pixels
  • USB 2.0 connectors1
See all specifications

Overview

Processor
J3455
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum resolution
3840 x 2160 pixels
USB 2.0 connectors
1
Brand
ASUS
Category
Motherboard
Model
J3455M-E
Part number
90MB0RS0-M0EAY0
EAN / UPC
889349539170, 4058154198308, 4712900539172
Also known as
ASUS J3455M-E micro ATX

Specifications

63 specifications in 12 groups

Processor

Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®
Processor modelJ3455
Processor cores4

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Maximum resolution3840 x 2160 pixels

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors2
Number of SATA II connectors0
Number of SATA connectors2
Number of Parallel ATA connectors0
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
12V power connectorYes
Number of COM connectors1

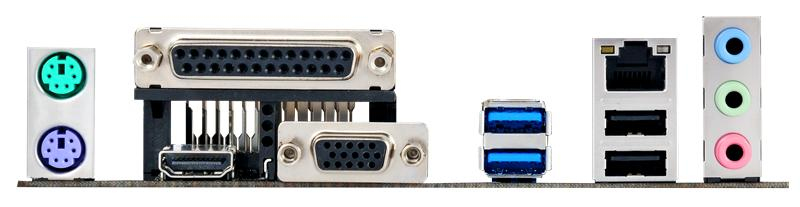

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Modem (RJ-11) ports0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version2.0a

Weight & dimensions

Width226 mm
Depth178 mm

Other features

Dual Link DVINo
