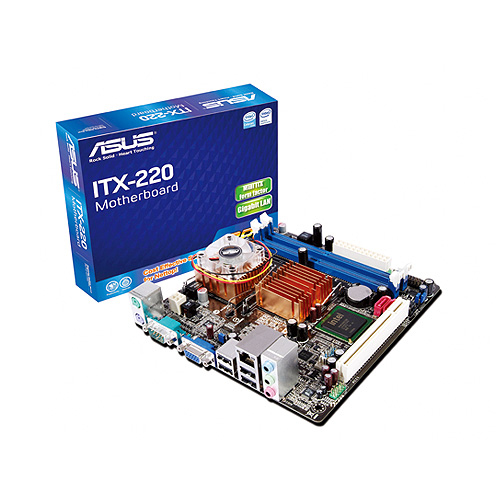

ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX
Model ITX-220EAN 610839171019
37 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory224 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Motherboard form factormini ITX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 224 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- mini ITX
- Brand
- ASUS
- Category
- Motherboard
- Model
- ITX-220
- Part numbers
- ITX-220, 90-MIB8W1-G0EAY0KZ
- EAN / UPC
- 610839171019, 4719543171011
- Also known as
- ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX
Specifications
37 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 224 MB |
| Graphics card | GMA 950 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| COM ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | VIA VT1705 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Certification | RoHS |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 171 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Special features | MyLogo 2 EZ Flash 2 CrashFree BIOS 3 |
What people say
Reviews & ratings
ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX
No reviews yet
Be the first to tell others how ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX
All motherboard comparisons- ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX vsASUS P5KPL-AM SECompare specs
- ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX vsASUS SK8N motherboard Socket 940 ATXCompare specs

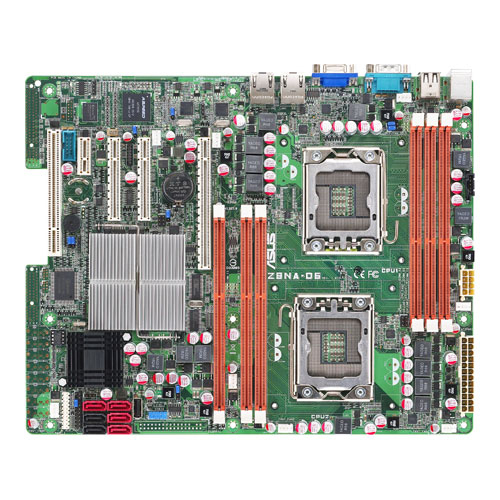

- ASUS ITX-220 motherboard LGA 775 (Socket T) mini ITX vsASUS Z8NA-D6C Intel® 5500 Socket B (LGA 1366) ATXCompare specs
