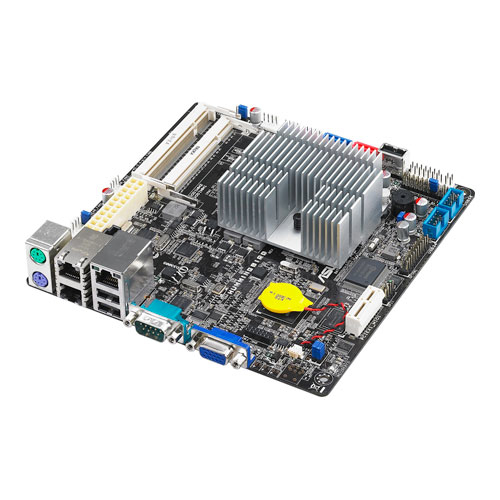

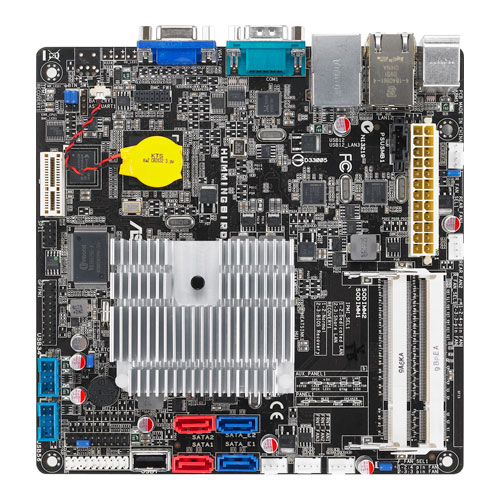

ASUS Hummingbird BGA 559 mini ITX
Model HummingbirdPart no. 90-MSVCZ0-G0UAY00ZEAN 4719543176009
38 specifications
- ProcessorD510
- Processor manufacturerIntel
- Number of memory slots2
- RAID levels0, 1
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
Overview
- Processor
- D510
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- RAID levels
- 0, 1
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- Hummingbird
- Part number
- 90-MSVCZ0-G0UAY00Z
- EAN / UPC
- 4719543176009, 5052179836923
- Also known as
- ASUS Hummingbird BGA 559 mini ITX
Specifications
38 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 559 |
| Processor model | D510 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 667 MHz |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Graphics card | AST2050 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |

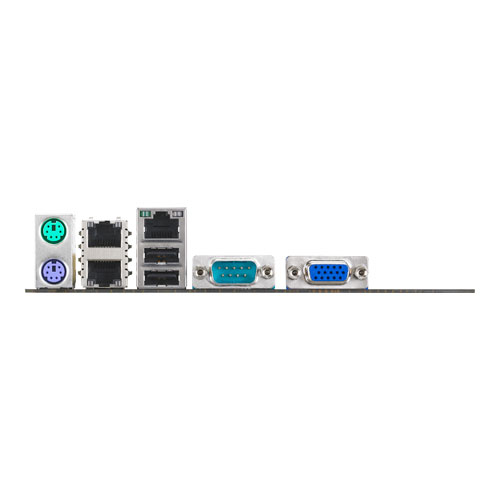

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Power source type | ATX |
| Certification | CE, FCC |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
