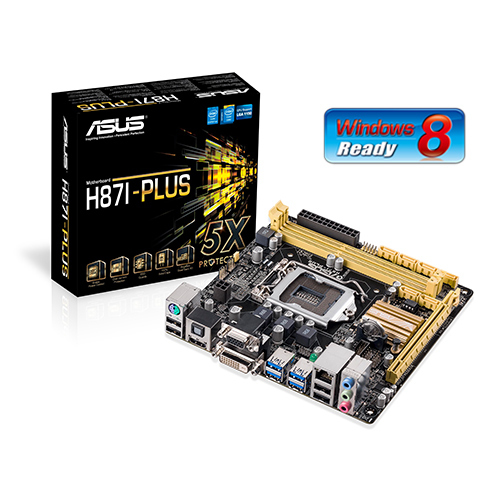

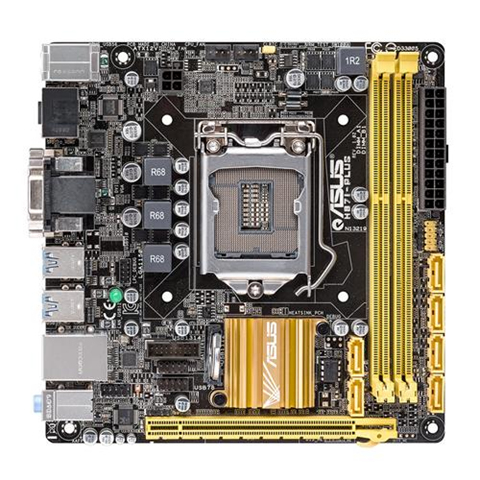

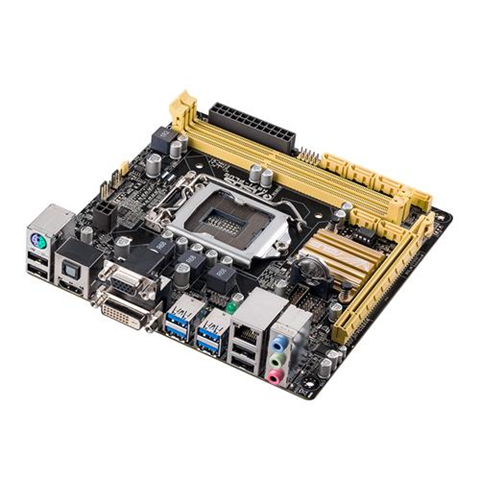

ASUS H87I-PLUS Intel® H87 LGA 1150 (Socket H3) mini ITX

ASUS H87I-PLUS Intel® H87 LGA 1150 (Socket H3) mini ITX

Model H87I-PLUSPart no. 90MB0F30-M0EAY5EAN 4716659553687

53 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
H87I-PLUS
Part numbers
90MB0F30-M0EAY5, 90MB0F30-M0EAY0
EAN / UPC
4716659553687, 132017758435, 886227488759, 886227553686 +1 more
Also known as
ASUS H87I-PLUS Intel® H87 LGA 1150 (Socket H3) mini ITX

Specifications

53 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
Maximum resolution4096 x 2304 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1

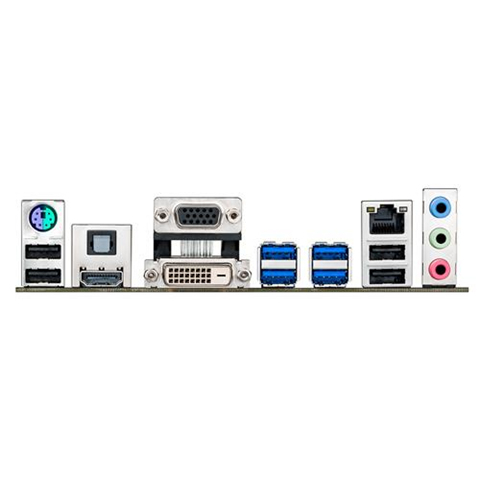

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H87
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 slots1
PCI Express slots version2.0, 3.0

BIOS

BIOS typeAMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
