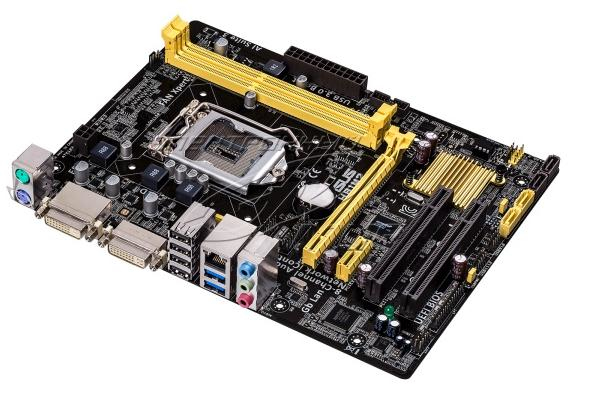

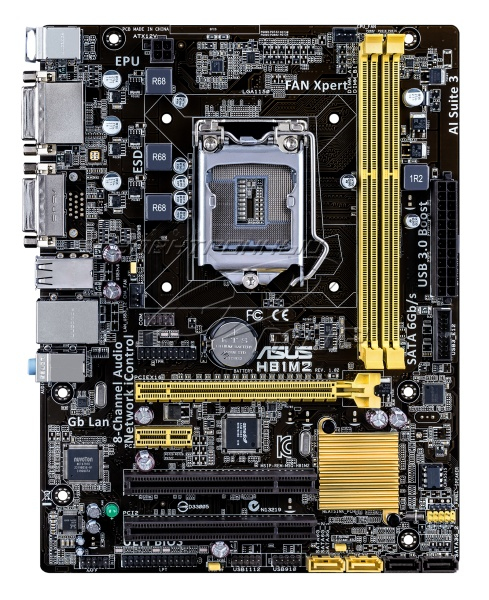

ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX
Model H81M2Part no. 90MB0HJ0-M0ECY0EAN 886227583638
56 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- H81M2
- Part numbers
- 90MB0HJ0-M0ECY0, 90MB0HJ0-M0EAY0
- EAN / UPC
- 886227583638, 4716659583639, 4716659583622
- Also known as
- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX
Specifications
56 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| TPM connector | Yes |

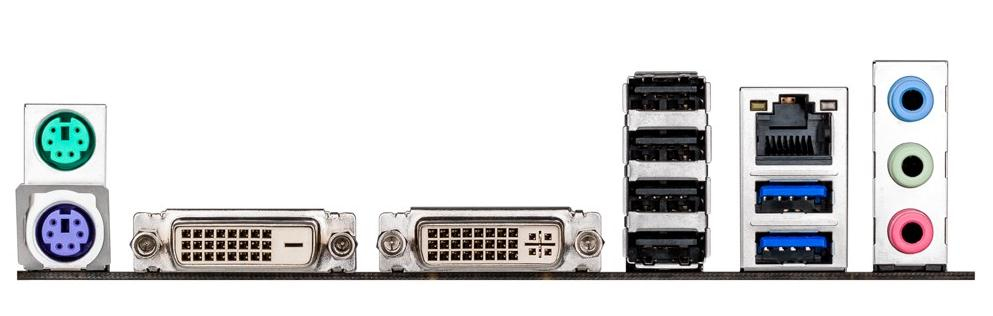

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 198 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX

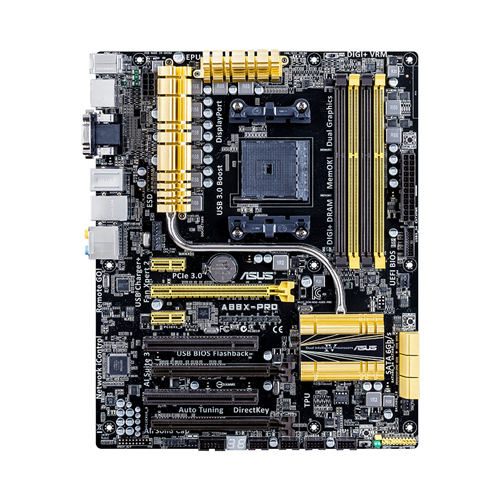

All motherboard comparisons- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsASUS A88X-PRO AMD A88X Socket FM2+ ATXCompare specs

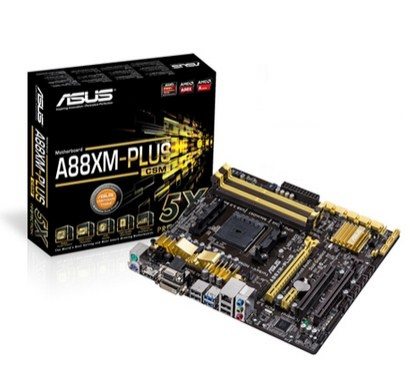

- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsASUS A88XM-PLUS/CSM motherboard AMD A88X Socket FM2+ micro ATXCompare specs

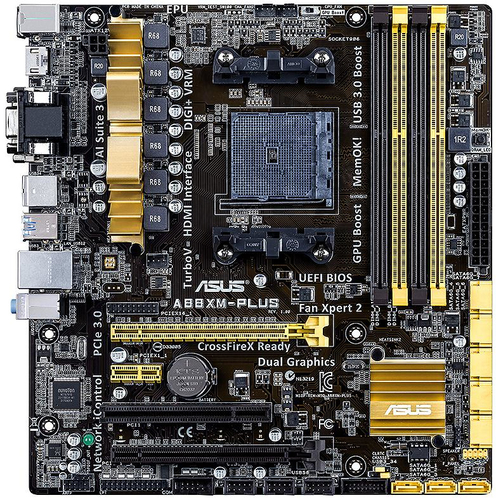

- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsASUS A88XM-PLUS AMD A88X Socket FM2+ micro ATXCompare specs

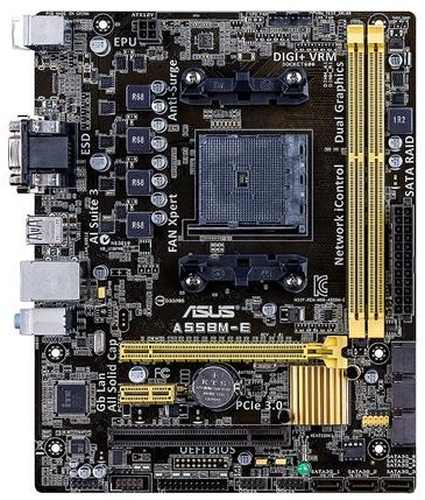

- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsASUS A55BM-E AMD A55 FCH Socket FM2+ micro ATXCompare specs
- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsFujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATXCompare specs
- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATXCompare specs
- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI A88XM-E35 AMD A88X Socket FM2+ micro ATXCompare specs

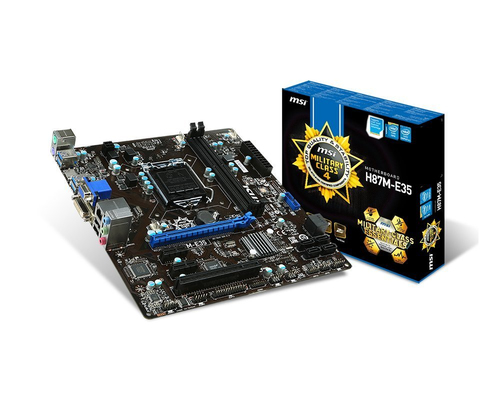

- ASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATX vsMSI H87M-E35 Intel® H87 LGA 1150 (Socket H3) micro ATXCompare specs
