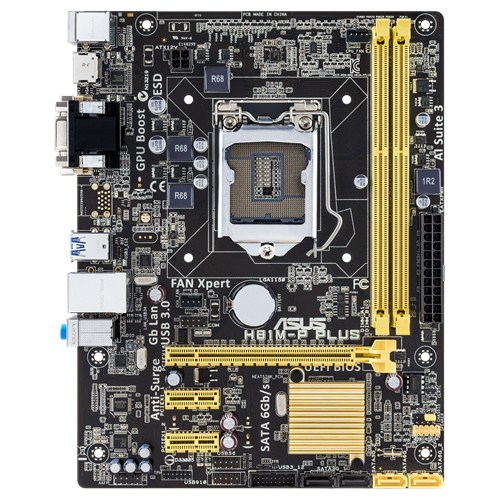

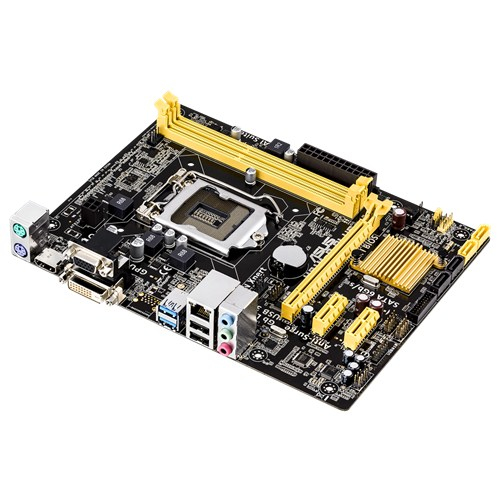

ASUS H81M-P PLUS

ASUS H81M-P PLUS

Model H81M-P PLUSPart no. 90MB0L70-M0UBY0EAN 4716659985273

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
H81M-P PLUS
Part numbers
90MB0L70-M0UBY0, 90MB0L70-M0EAY0, 90MB0L70-M0ECY1
EAN / UPC
4716659985273, 886227985265, 4058154032411, 4716659985266
Also known as
ASUS H81M-P PLUS Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

67 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III

Graphics

Maximum graphics card memory1024 MB
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1

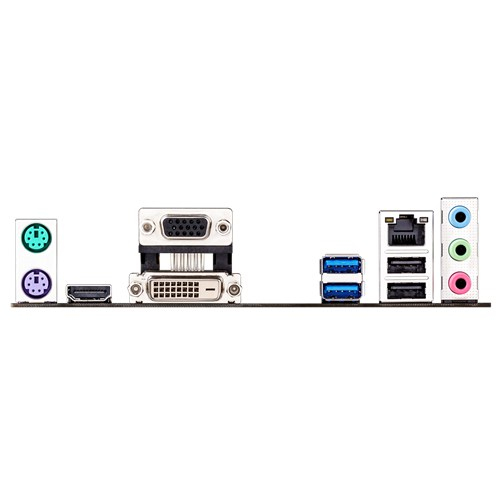

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
LAN controllerIntel® I218-V
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyNo
Intel Stable Image Platform Program (SIPP)No
Intel Trusted Execution TechnologyNo
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost Technology2.0
Processor with Intel Graphics Technology requiredYes

Weight & dimensions

Width226 mm
Depth174 mm

Packaging content

Cables includedSATA

Other features

Intel® vPro™ Platform EligibilityNo
