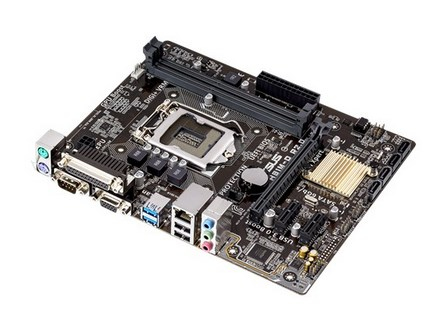

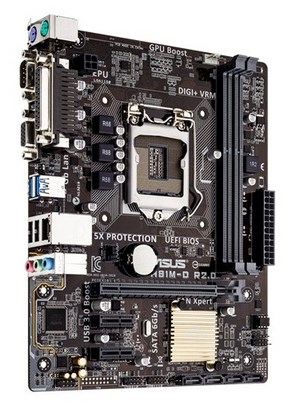

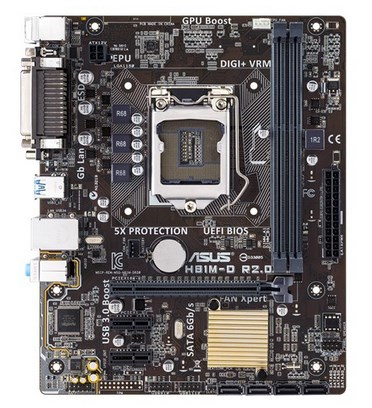

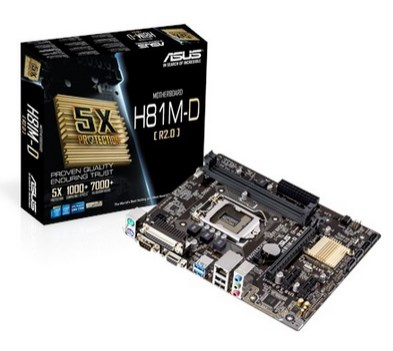

ASUS H81M-D R2.0

ASUS H81M-D R2.0

Model H81M-D R2.0Part no. 90MB0HW0-M0AAY0EAN 8862276460818

56 specifications
  • Memory16 GB
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Memory
16 GB
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
H81M-D R2.0
Part numbers
90MB0HW0-M0AAY0, 90MB0KD0-M0EAY0
EAN / UPC
8862276460818, 4053162745797, 4716659892939
Also known as
ASUS H81M-D R2.0 Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Internal memory16 GB
Supported memory clock speeds1066,1333,1600 MHz
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors2
Number of SATA connectors4
S/PDIF out connectorYes
Number of EATX power connectors1
CPU fan connectorYes

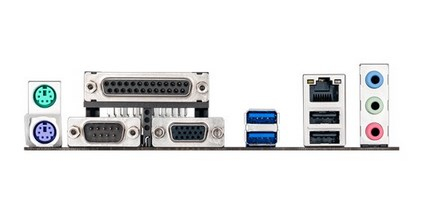

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio output channels7.1 channels
Cooling typeActive
Power source typeATX
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Processor special features

Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Processor with Intel Graphics Technology requiredYes

Weight & dimensions

Width226 mm
Depth183 mm

Packaging content

Cables includedSATA
