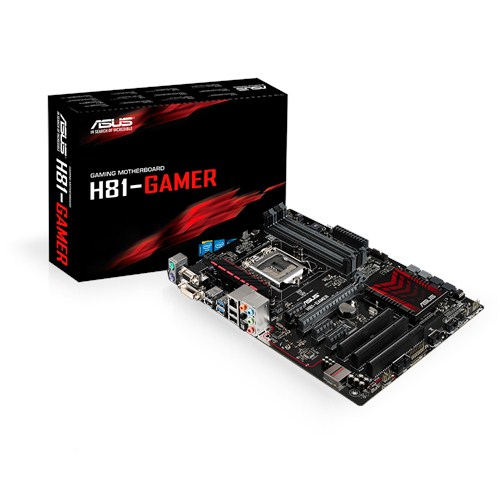

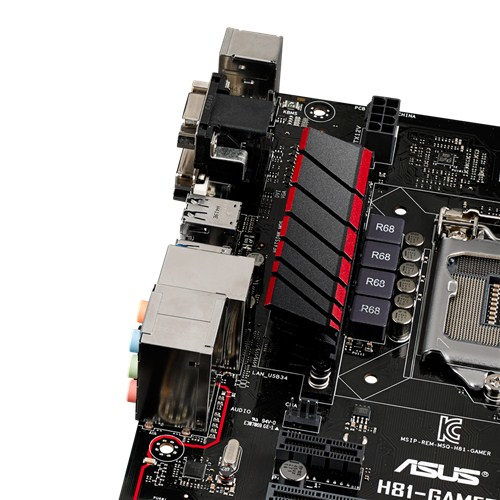

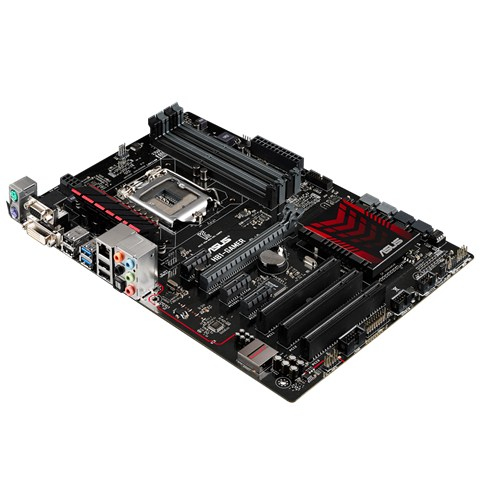

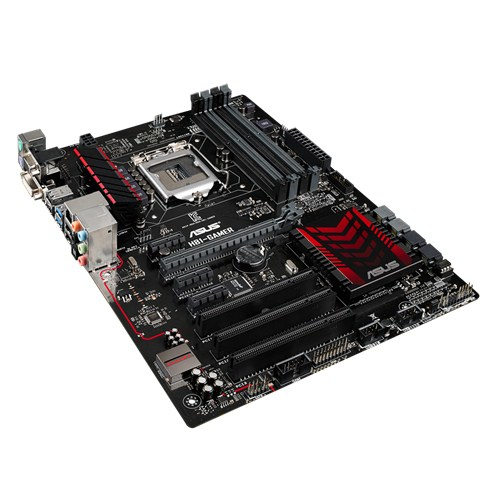

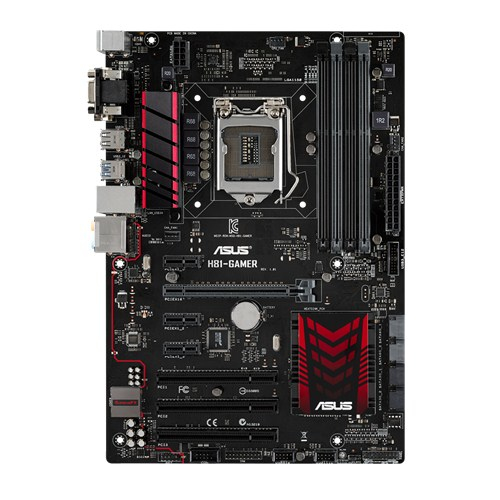

ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX
Model H81-GAMERPart no. 90MB0K20-M0EAY0EAN 4053162745766
45 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum resolution1920 x 1200 pixels
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum resolution
- 1920 x 1200 pixels
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- H81-GAMER
- Part number
- 90MB0K20-M0EAY0
- EAN / UPC
- 4053162745766, 4716659873266
- Also known as
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i5-4xxx, i7-4xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of SATA connectors | 4 |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |

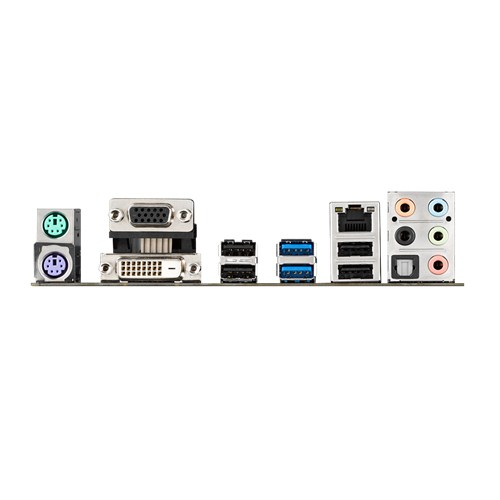

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H81 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 214 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
What people say
Reviews & ratings
ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX
All motherboard comparisons- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsASUS Z97-PRO GAMERCompare specs
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsASUS Z97-E motherboard Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsASUS Maximus VII FormulaCompare specs

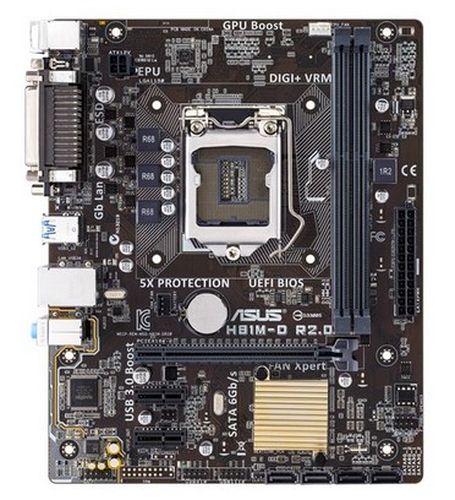

- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsASUS H81M-D R2.0Compare specs
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsMSI X99S MPOWERCompare specs
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE MW50-SV0 motherboard Intel® C612 LGA 2011-v3 ATXCompare specs
- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-J1900M-D2P motherboard NA (integrated CPU) micro ATXCompare specs

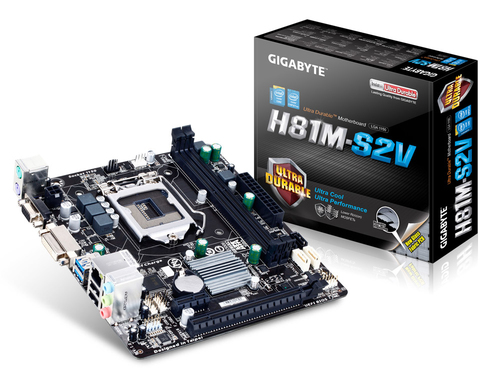

- ASUS H81-GAMER Intel® H81 LGA 1150 (Socket H3) ATX vsGIGABYTE GA-H81M-S2V motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
