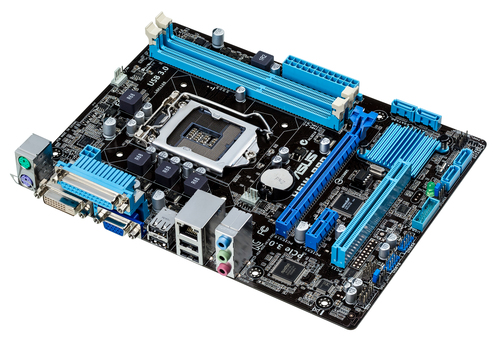

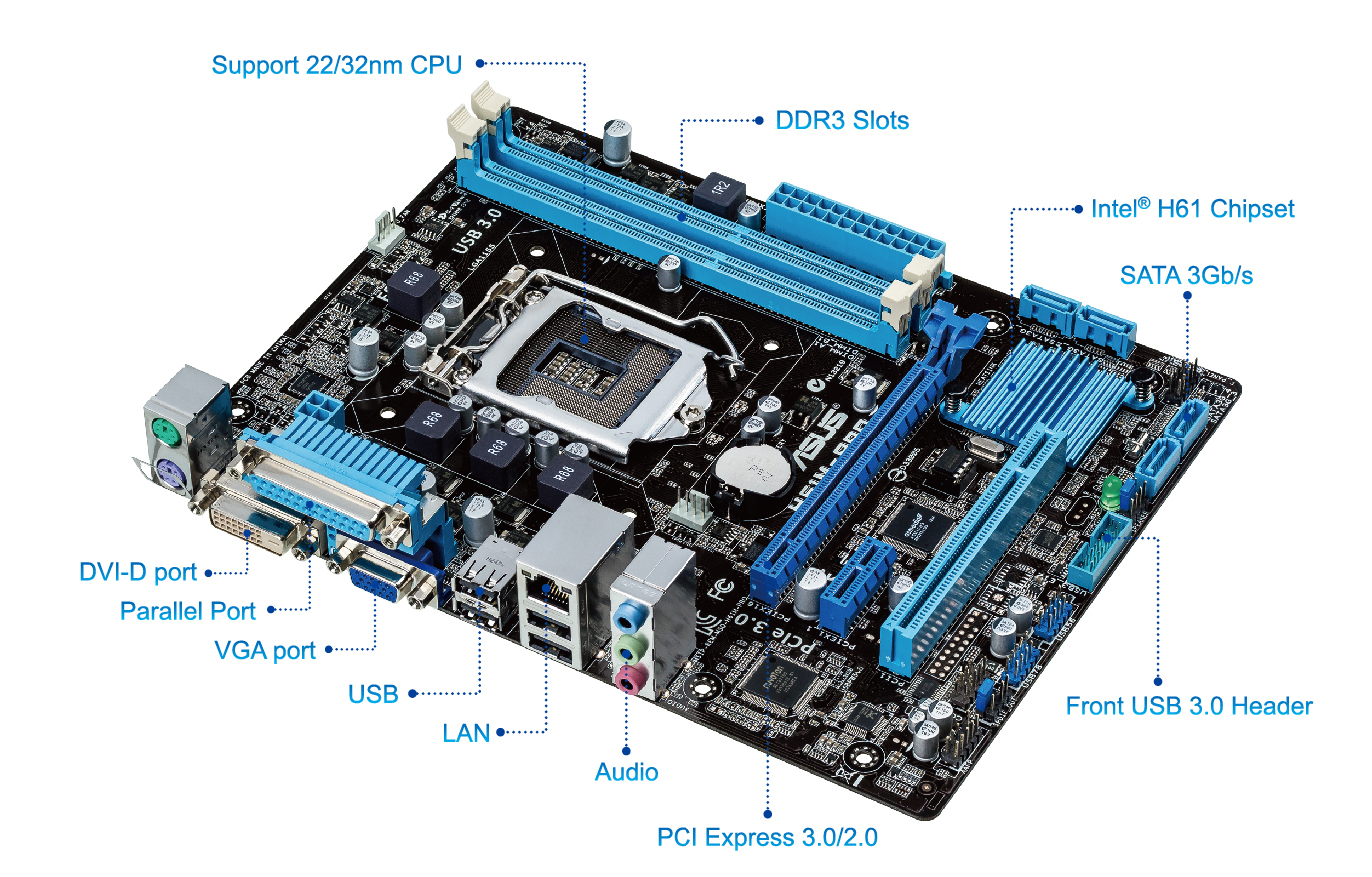

ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX
Model H61M-PROPart no. 90MB0FQ0-M0EAY0EAN 5052184110698
63 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Maximum graphics card memory1042 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Maximum graphics card memory
- 1042 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- H61M-PRO
- Part number
- 90MB0FQ0-M0EAY0
- EAN / UPC
- 5052184110698, 4176659644707, 4716659644705, 5054484567233 +1 more
- Also known as
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-2xxx, i3-3xxx, i5-2xxx, i5-3xxx, i7-2xxx, i7-3xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2000,2133,2200 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 8GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1042 MB |
| Graphics card family | Intel |
| Maximum resolution | 2048 x 1536 pixels |
| DirectX version | 11 |
| Discrete graphics support | Yes |
| Number of displays supported | 2 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |

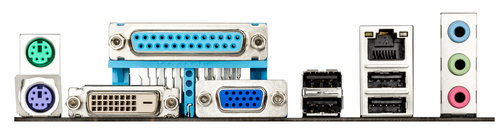

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Processor with Intel Graphics Technology required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 234 mm |
| Depth | 178 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
What people say
Reviews & ratings
ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS RAMPAGE IV BLACK EDITIONCompare specs
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS H81T Intel® H81 LGA 1150 (Socket H3) mini ITXCompare specs
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS CS-B Intel® Q87 LGA 1150 (Socket H3) micro ATXCompare specs
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS Q87T Intel® Q87 LGA 1150 (Socket H3) mini ITXCompare specs
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI H81-P33 Intel® H81 LGA 1150 (Socket H3) ATXCompare specs
- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI A78M-E45 AMD A78 Socket FM2+ micro ATXCompare specs

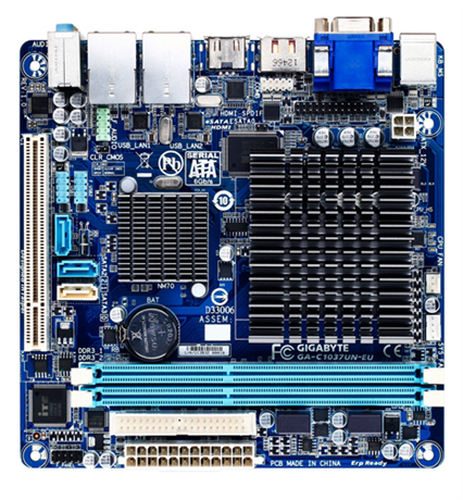

- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-C1037UN-EU motherboard mini ITXCompare specs

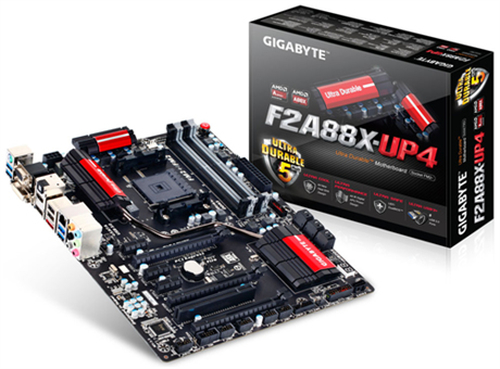

- ASUS H61M-PRO Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-F2A88X-UP4 (rev. 3.0)Compare specs
