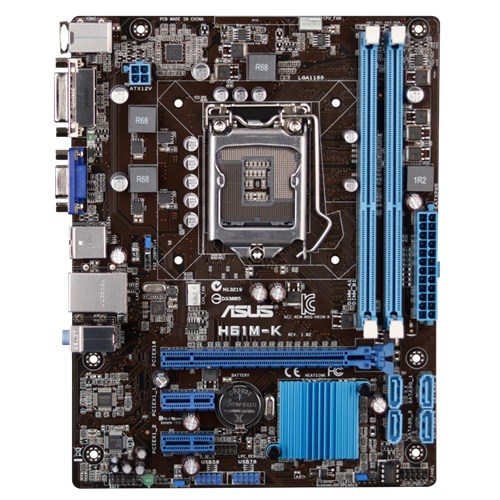

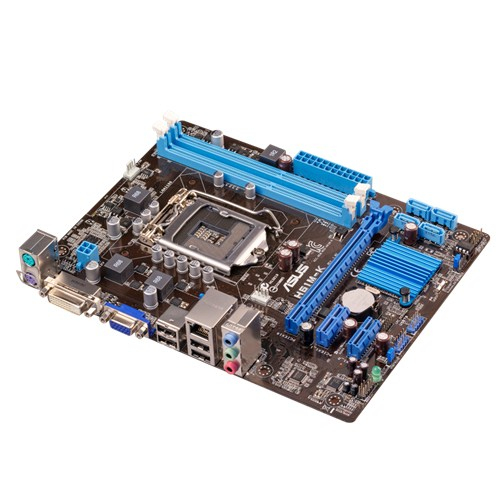

ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX
Model H61M-KPart no. 90MB0FP0-M0UAY0EAN 4716659587590
48 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- H61M-K
- Part numbers
- 90MB0FP0-M0UAY0, 90MB0FP0-M0UBY0, 90MB0FP0-M0EAY0
- EAN / UPC
- 4716659587590, 4053162745155, 4716659436225, 886227587599 +1 more
- Also known as
- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2000,2133,2200 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |

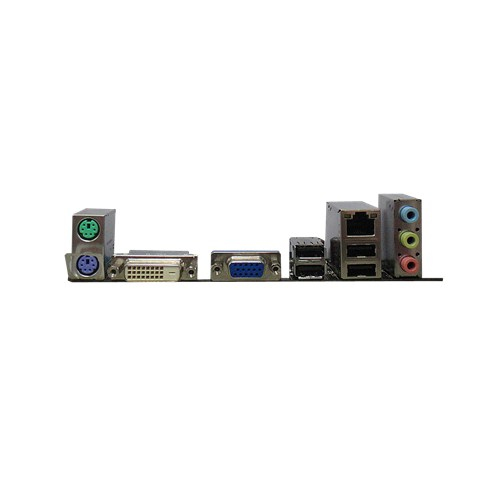

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111F |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 175 mm |
What people say
Reviews & ratings
ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS H81M-E Intel® H81 LGA 1150 (Socket H3)Compare specs
- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS H81M-C Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS H81-PLUS Intel® H81 LGA 1150 (Socket H3) ATXCompare specs

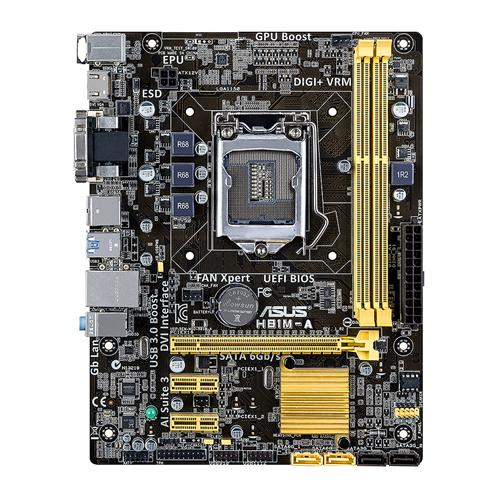

- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS H81M-A Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

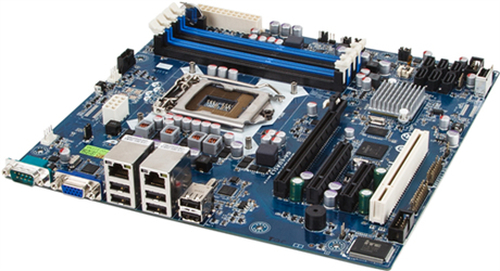

- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-6UASL3 motherboard Intel® C202 LGA 1155 (Socket H2) micro ATXCompare specs

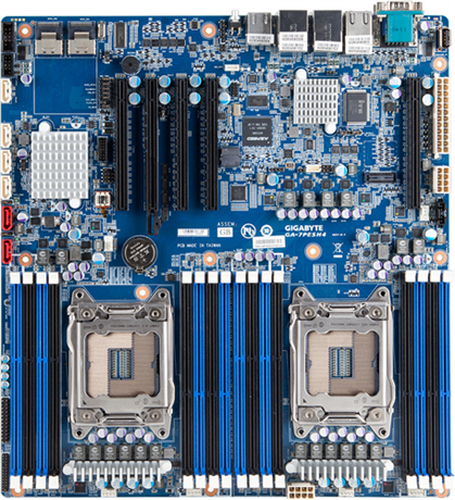

- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-7PESH4 motherboard Intel® C602 LGA 2011 (Socket R)Compare specs
- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsMSI Z87 MPOWER SPCompare specs

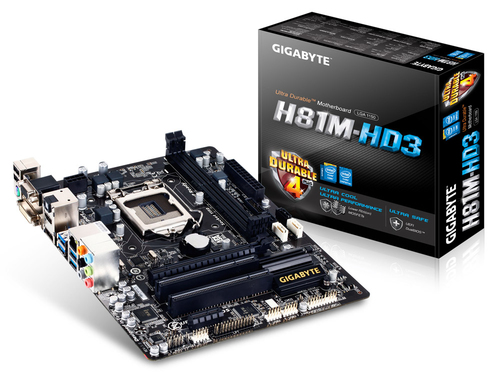

- ASUS H61M-K Intel® H61 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H81M-HD3 motherboard Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs
