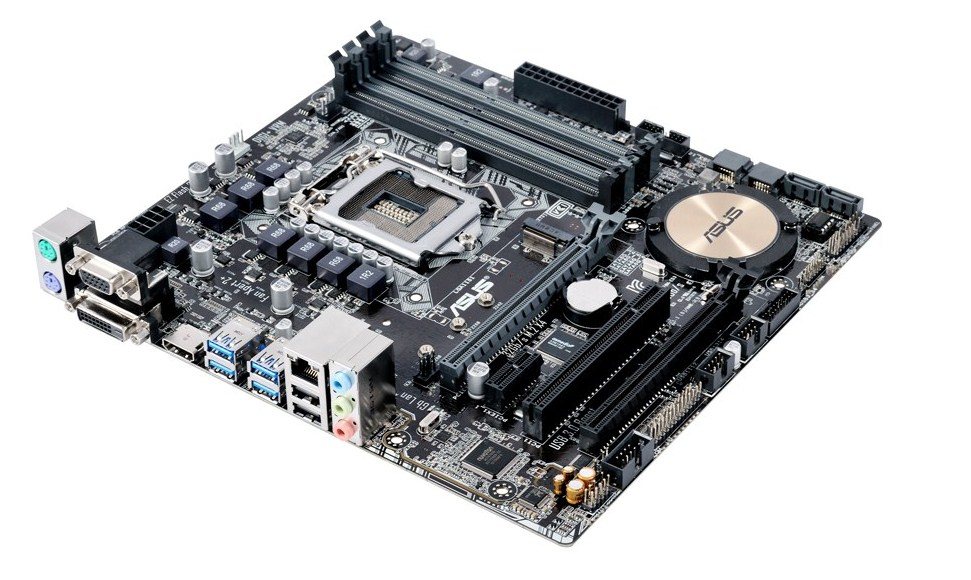

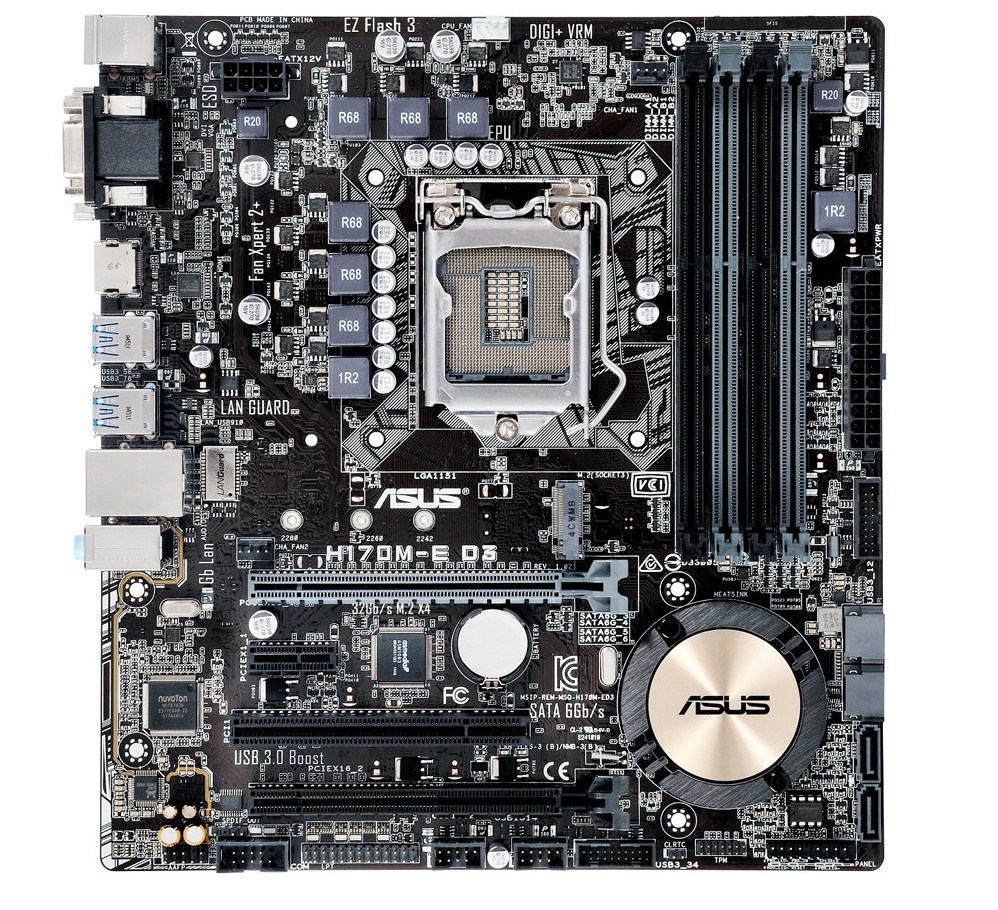

ASUS H170M-E D3

ASUS H170M-E D3

Model H170M-E D3Part no. 90MB0N70-M0EAY0EAN 4680843101186

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III, M.2
  • On-board graphics cardNo
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III, M.2
On-board graphics card
No
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
H170M-E D3
Part number
90MB0N70-M0EAY0
EAN / UPC
4680843101186, 889349115114, 4053162942073, 4712900115116 +1 more
Also known as
ASUS H170M-E D3 Intel® H170 LGA 1151 (Socket H4) micro ATX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,1333,1600 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA III, M.2
RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo
Graphics card familyIntel
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

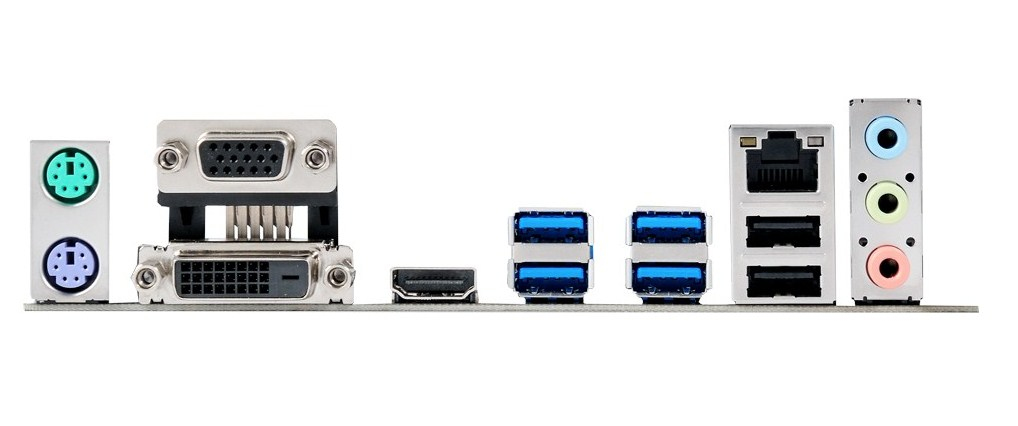

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H170
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0

Weight & dimensions

Width244 mm
Depth224 mm
