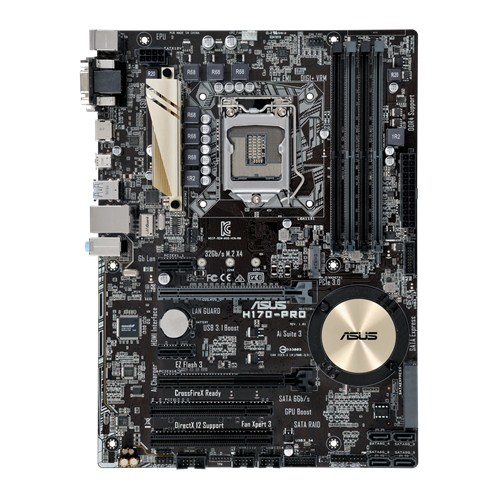

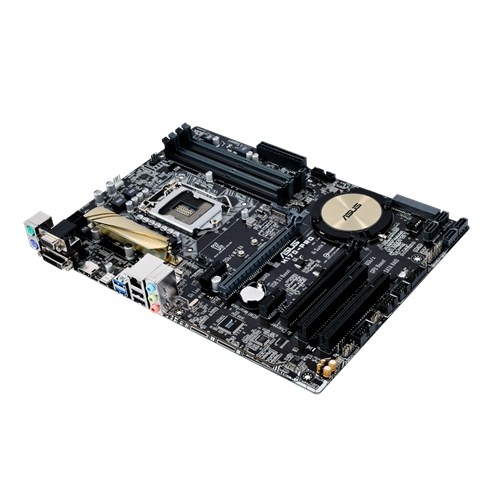

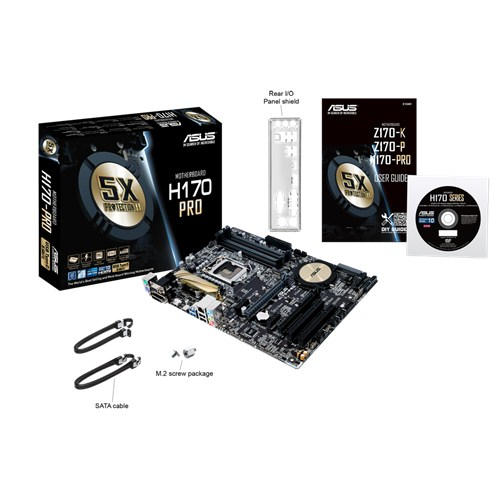

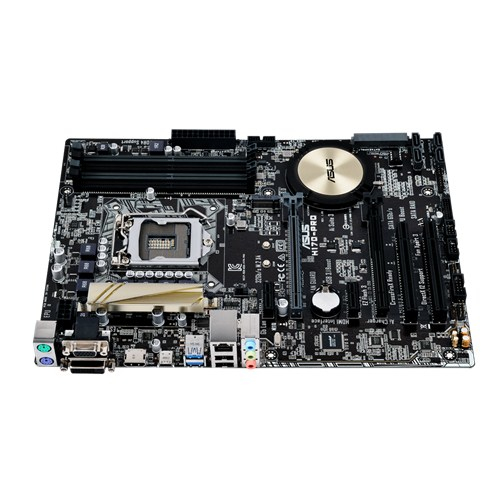

ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX
Model H170-PRO/CSMPart no. 90MB0NC0-M0EAYCEAN 5283566774287
59 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- H170-PRO/CSM
- Part number
- 90MB0NC0-M0EAYC
- EAN / UPC
- 5283566774287, 6081582597809, 6486934956936
- Also known as
- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX
Specifications
59 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | CrossFireX |
| Graphics card family | Intel |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 4 |
| Number of SATA Express connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |

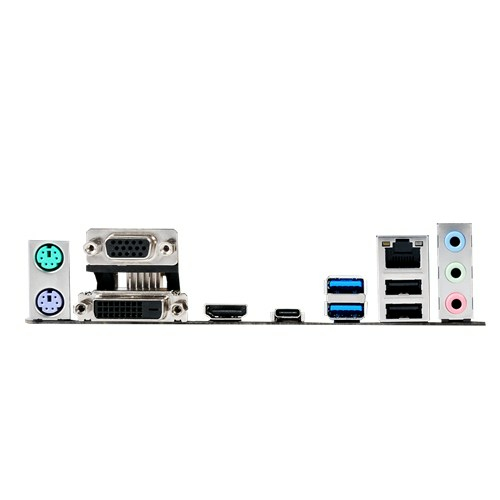

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 6 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H170 |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | Yes |
Other features
| Specification | Value |
|---|---|
| Number of SATA Express ports | 1 |
What people say
Reviews & ratings
ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX
No reviews yet
Be the first to tell others how ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX
All motherboard comparisons- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsASUS B150M-C D3Compare specs
- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsASUS SABERTOOTH Z170 MARK 1Compare specs

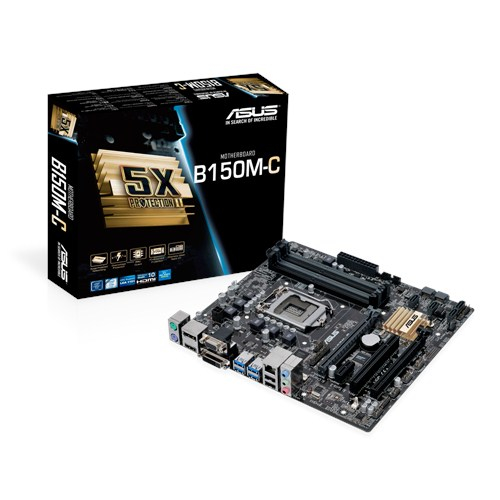

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsASUS B150M-C Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs

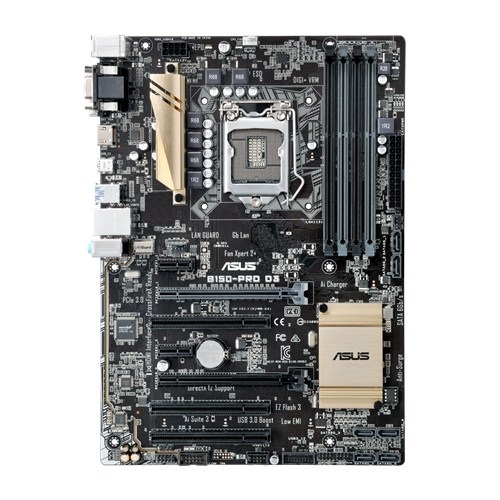

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsASUS B150-PRO D3Compare specs

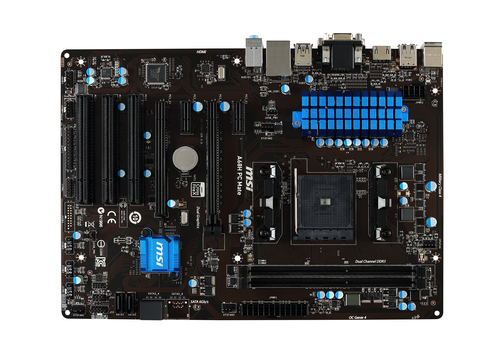

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsMSI A68H PC MateCompare specs

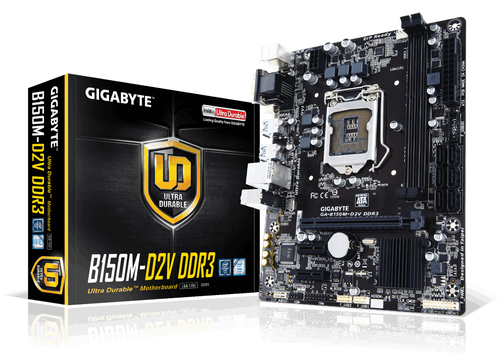

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-B150M-D2V DDR3Compare specs

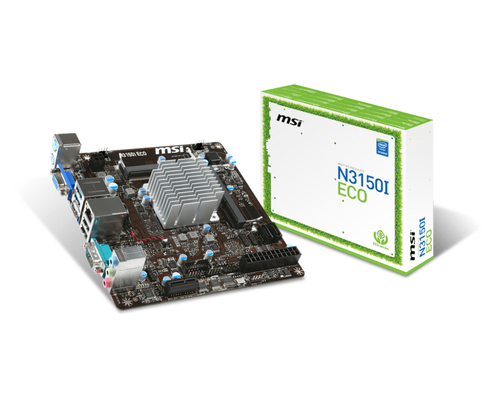

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsMSI N3150I ECOCompare specs

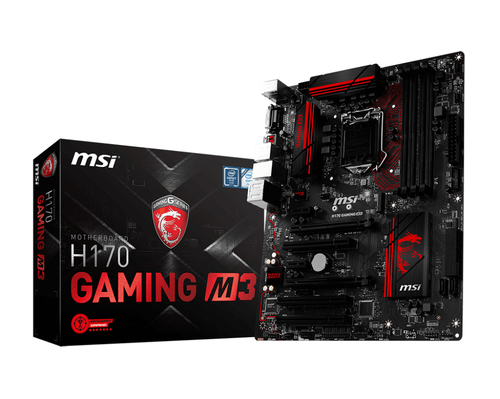

- ASUS H170-PRO/CSM Intel® H170 LGA 1151 (Socket H4) ATX vsMSI H170 Gaming M3Compare specs
