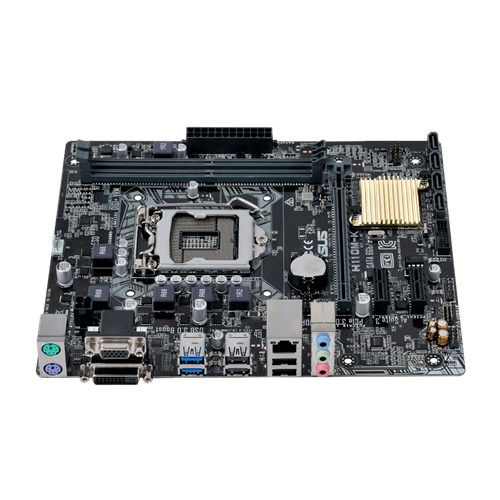

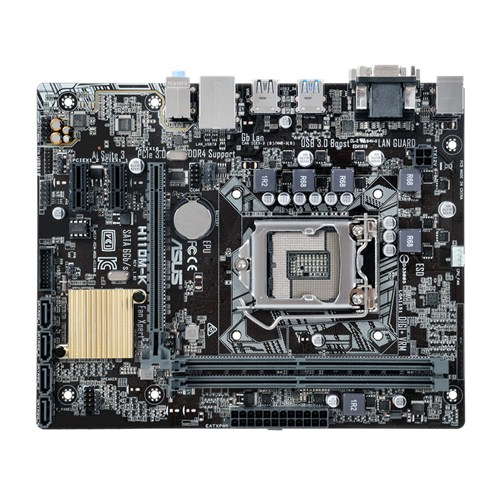

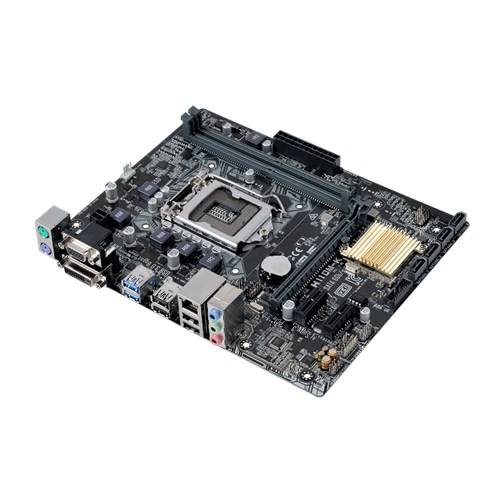

ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX
Model H110M-KPart no. 90MB0PH0-M0EAY0EAN 889349263372
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory1024 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- H110M-K
- Part number
- 90MB0PH0-M0EAY0
- EAN / UPC
- 889349263372, 4058154032442, 4712900263374
- Also known as
- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Supported memory clock speed (max) | 2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |

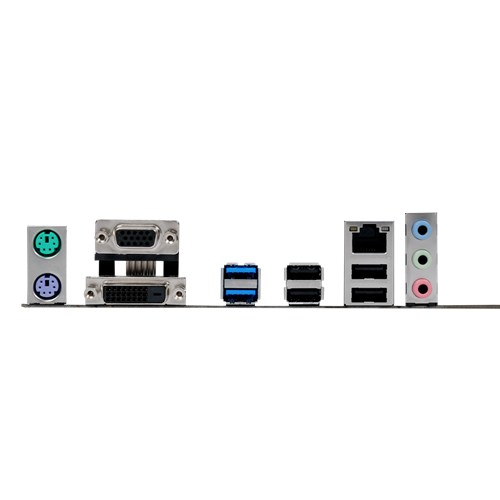

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H110 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Wind |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 183 mm |

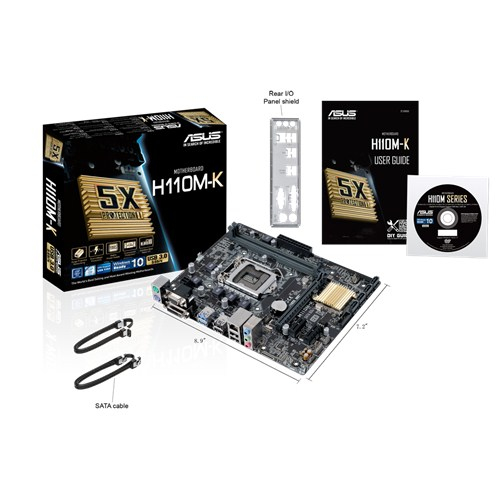

Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX

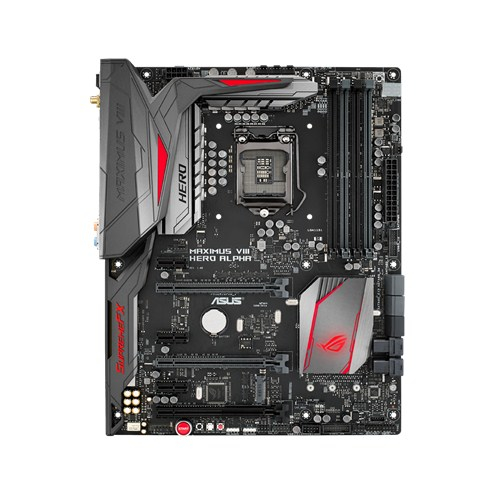

All motherboard comparisons- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsASUS MAXIMUS VIII HERO ALPHACompare specs

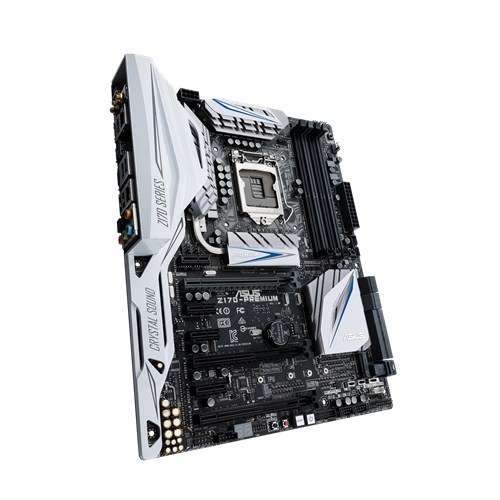

- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsASUS MB Z170-PREMIUMCompare specs

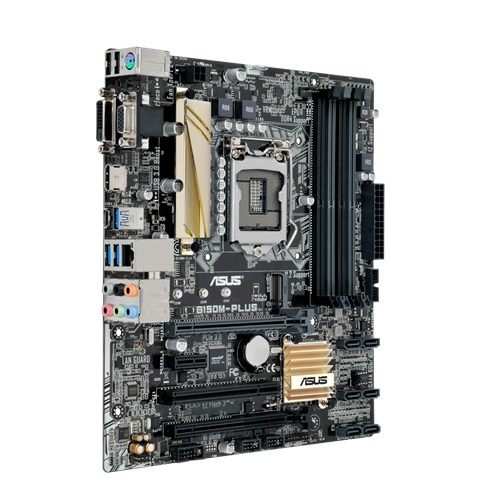

- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsASUS B150M-PLUS Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs

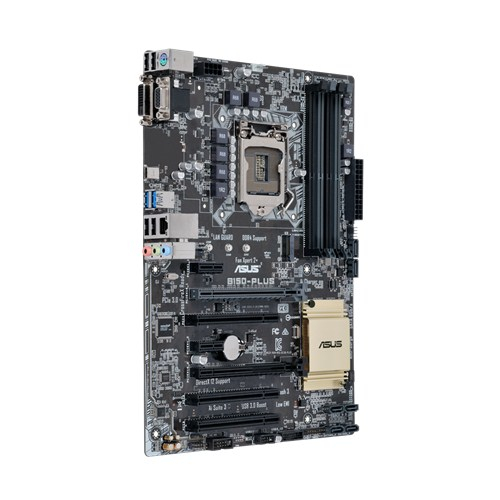

- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsASUS B150-PLUS Intel® B150 LGA 1151 (Socket H4) ATXCompare specs
- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-H170M-HD3 DDR3 (rev. 1.0)Compare specs
- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsFujitsu D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs

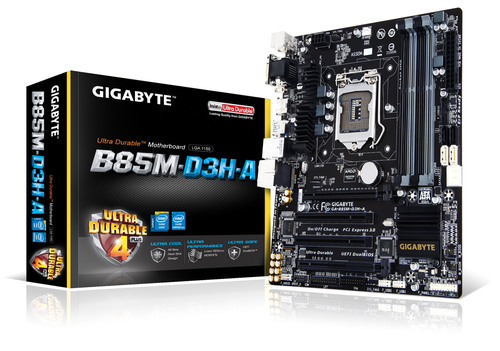

- ASUS H110M-K Intel® H110 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-B85M-D3H-A (rev. 1.0)Compare specs
