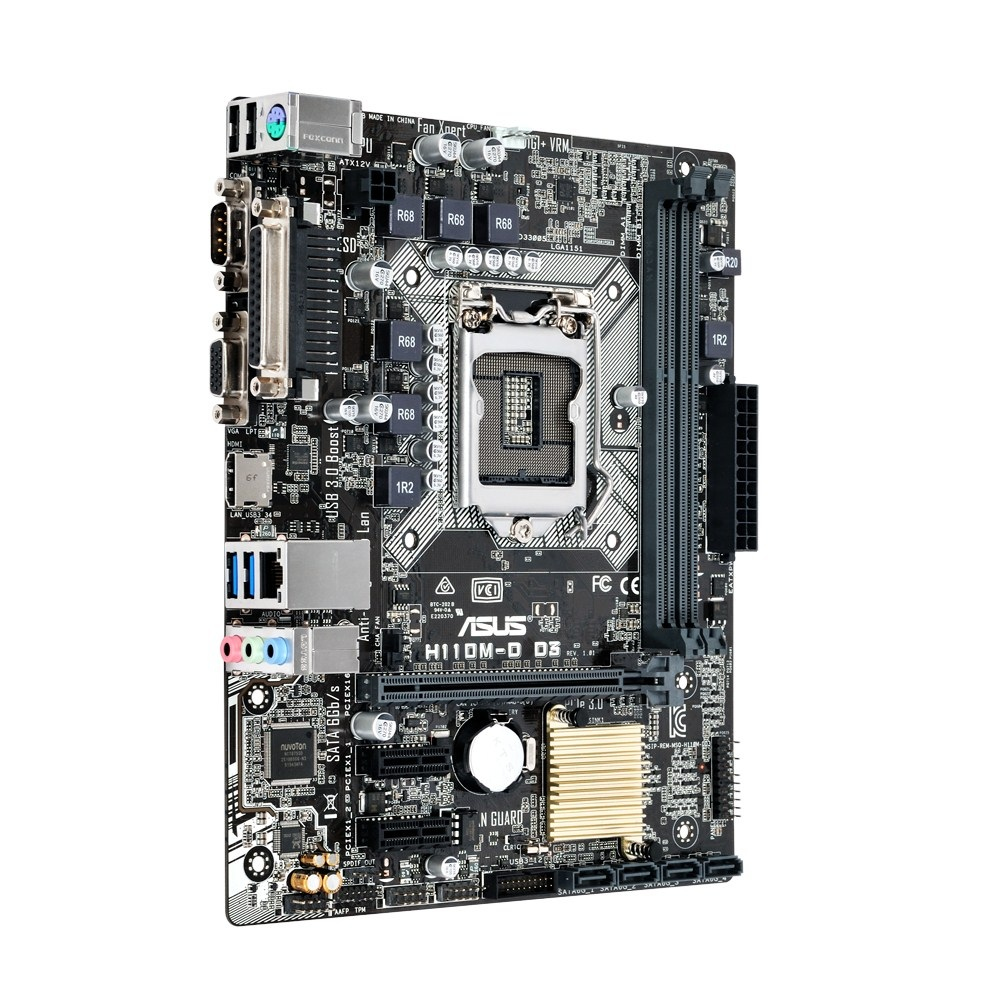

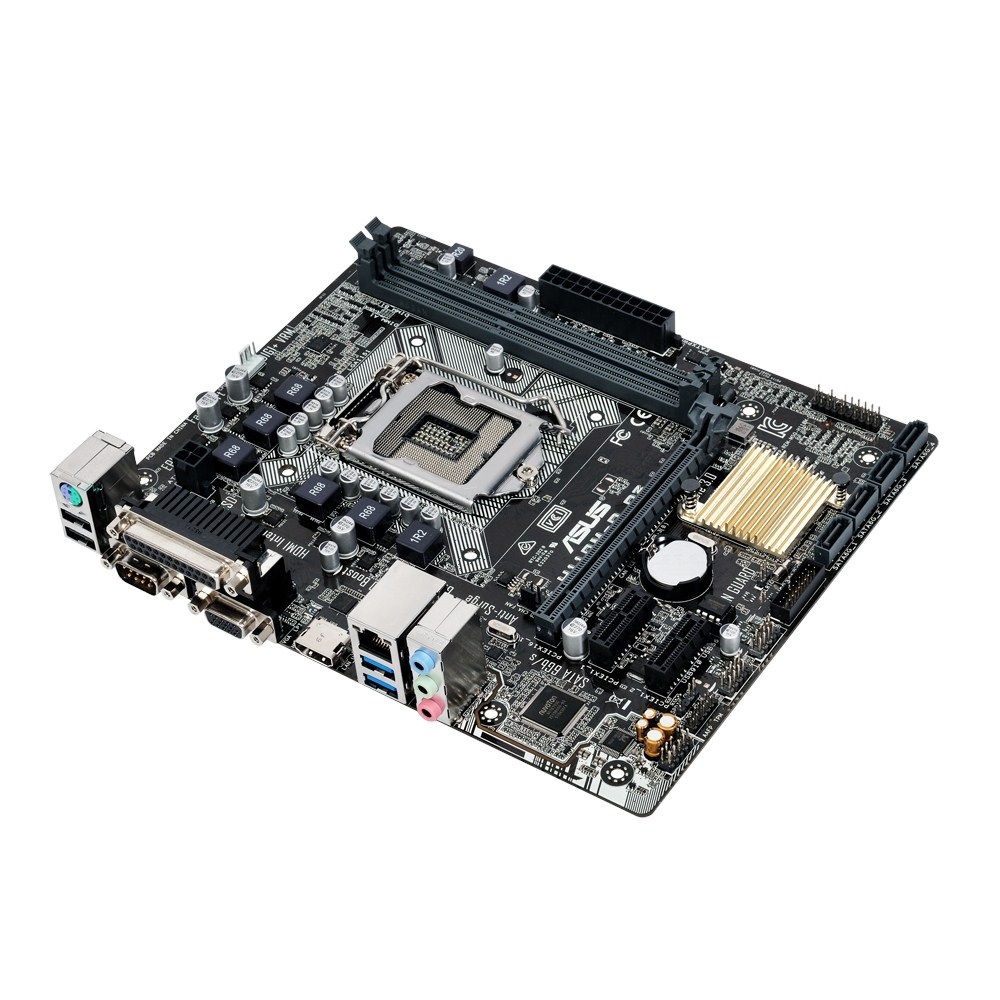

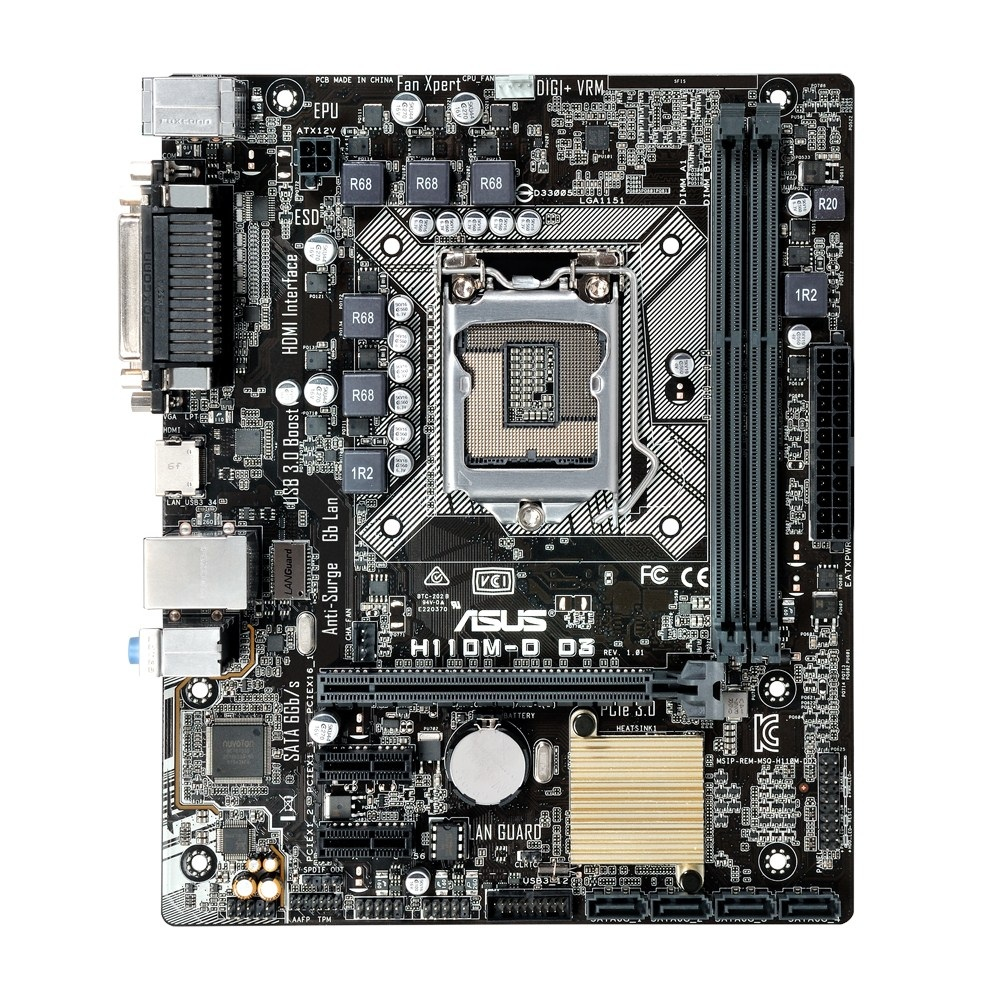

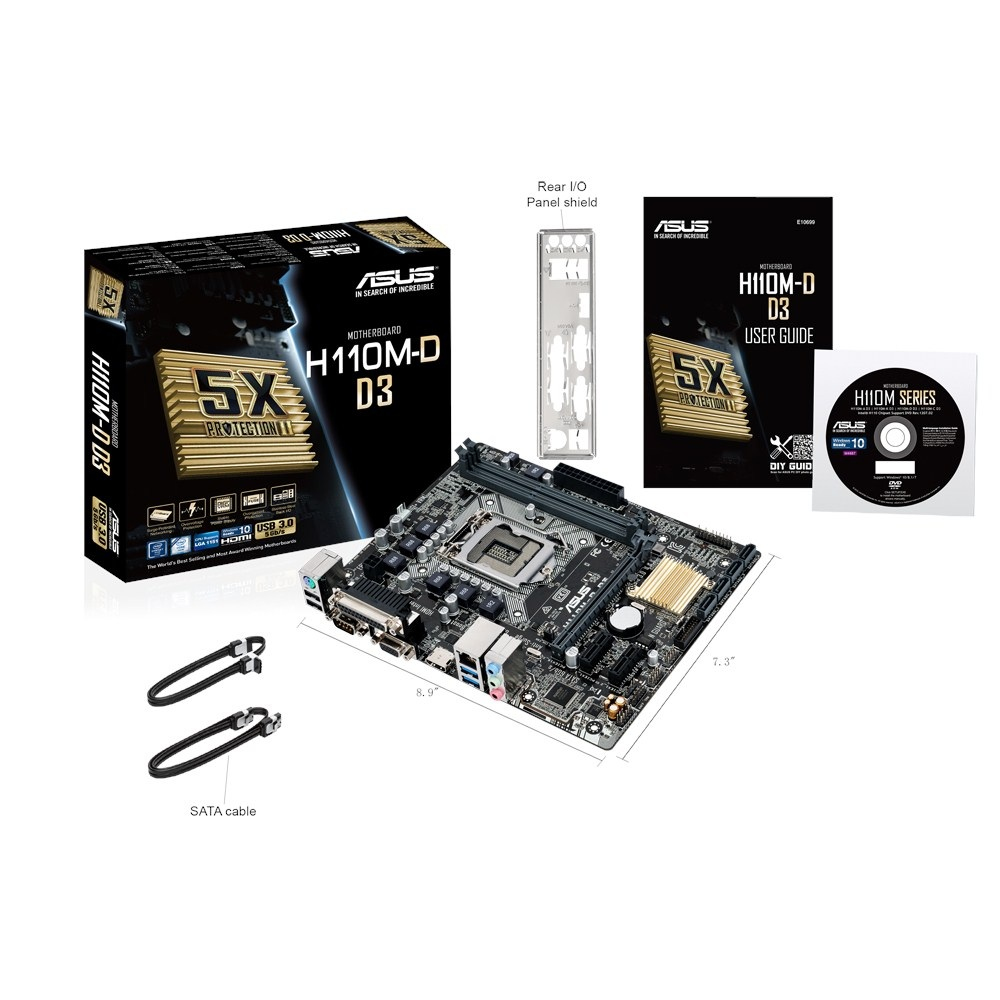

ASUS H110M-D D3

ASUS H110M-D D3

Model H110M-D D3Part no. 90MB0NK0-M0EAY0EAN 889349189115

67 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Maximum graphics card memory
1024 MB
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
H110M-D D3
Part numbers
90MB0NK0-M0EAY0, H110M-D-D3
EAN / UPC
889349189115, 4053162968097, 4712900189117
Also known as
ASUS H110M-D D3 Intel® H110 LGA 1151 (Socket H4) micro ATX

Specifications

67 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA

Graphics

Maximum graphics card memory1024 MB

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

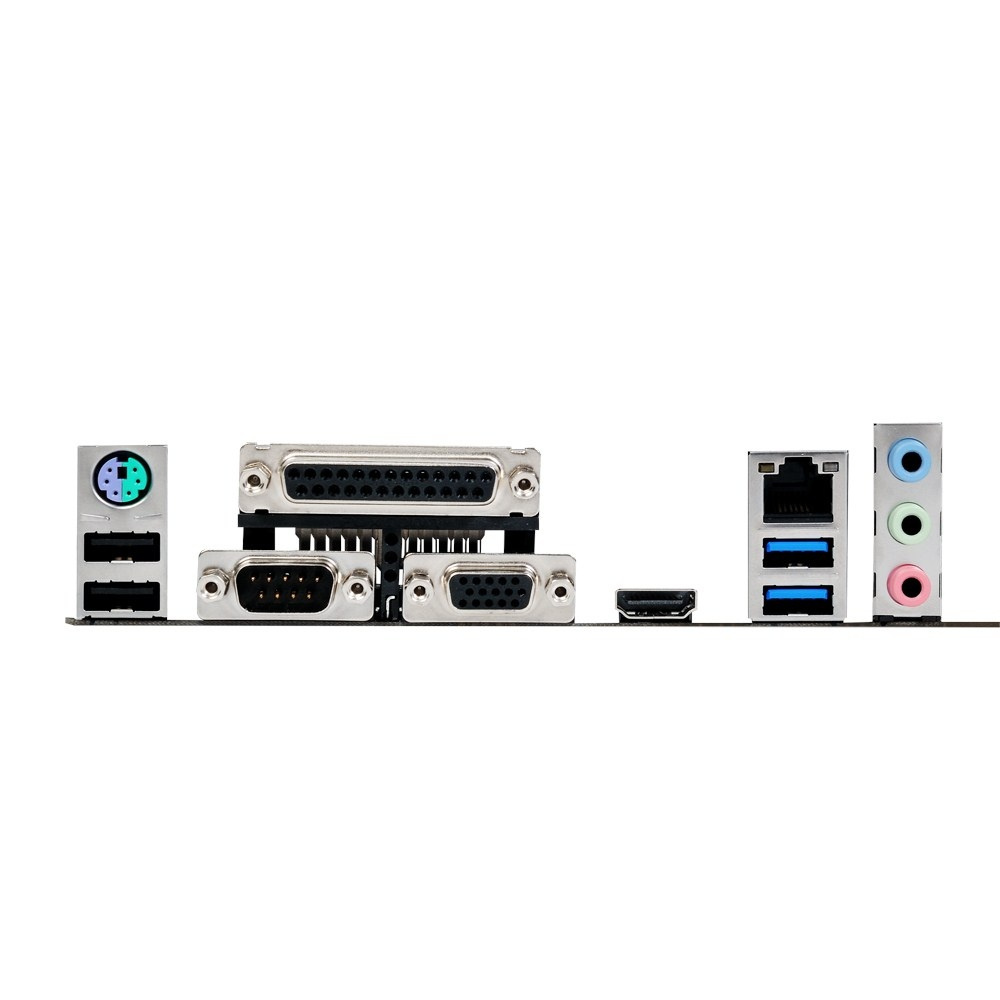

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
COM ports quantity1
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H110
Audio chipRealtek ALC887-VD2
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost Technology2.0
Trusted Platform Module (TPM)Yes

Weight & dimensions

Width226.2 mm
Depth185.5 mm

Packaging content

Cables includedSATA

Other features

S/PDIF in connectorYes
