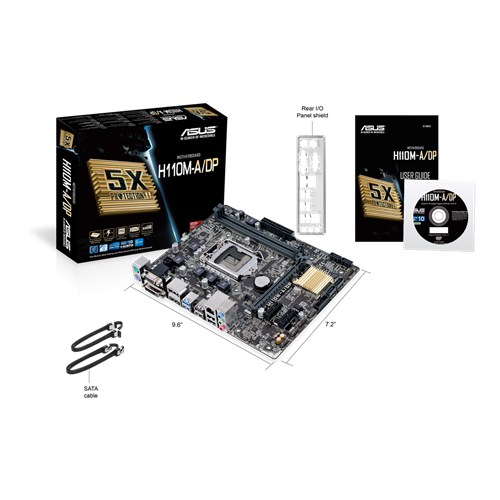

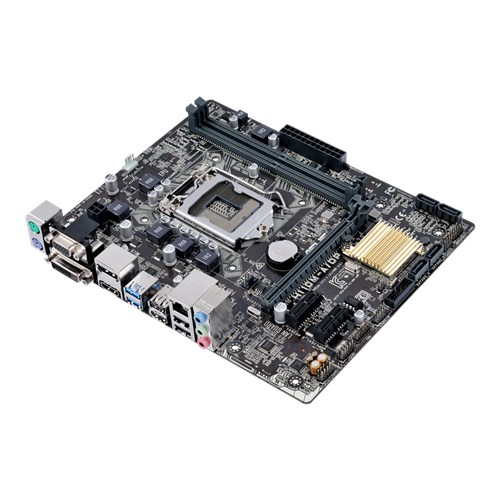

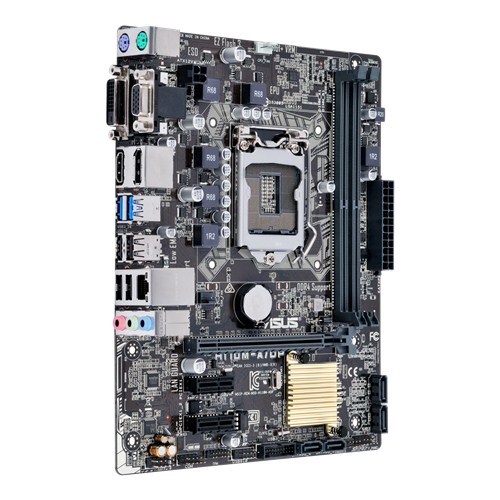

ASUS H110M-A/DP motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX

Model H110M-A/DPEAN 4712900288292

73 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: H110M-A/DP
Part numbers: H110M-A/DP, 90MB0Q10-M0EAY0, 90MB0Q10-M0ECY0
EAN / UPC: 4712900288292, 4712900288308
Also known as: ASUS H110M-A/DP motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX

73 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133 MHz
Maximum internal memory	32 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive interfaces	SATA III

Specification	Value
Maximum graphics card memory	1024 MB
Graphics card family	Intel
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Number of displays supported	2

Specification	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	1
TPM connector	Yes

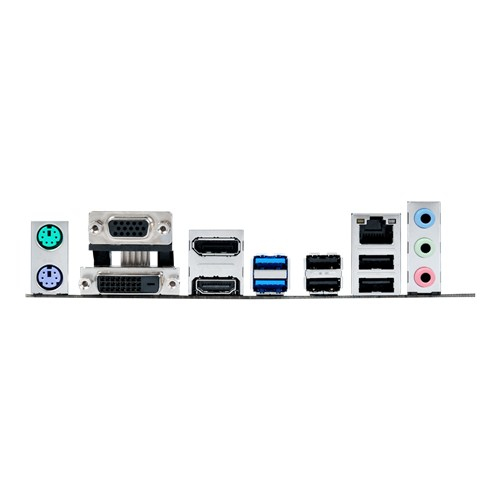

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	1
DisplayPorts quantity	1
S/PDIF out port	No

Specification	Value
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H

Specification	Value
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel® H110
Audio chip	Realtek ALC887
Audio output channels	7.1 channels
Power source type	ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows

Specification	Value
PCI Express x1 (Gen 2.x) slots	2
PCI Express x16 (Gen 3.x) slots	1

Specification	Value
Conflict-Free	Yes
Intel Extreme Memory Profile (XMP)	Yes
Intel ME Firmware Version	11
Intel Rapid Storage Technology	Yes
Intel Rapid Storage Technology enterprise	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-d
Processor with Intel Graphics Technology required	Yes

Specification	Value
Width	226.1 mm
Depth	185.4 mm

Specification	Value
Cables included	SATA

Specification	Value
Intel® vPro™ Platform Eligibility	No
