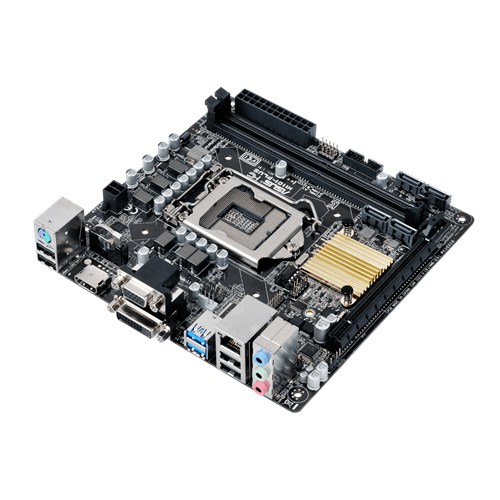

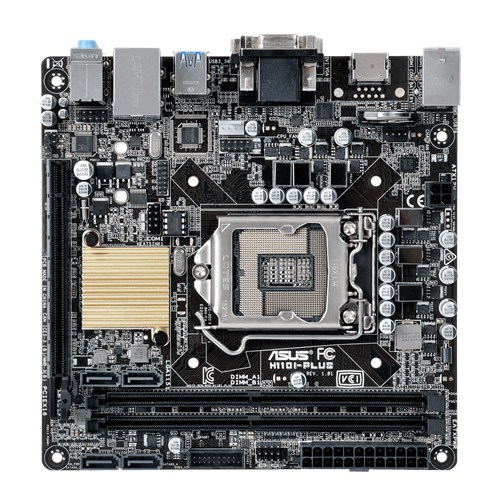

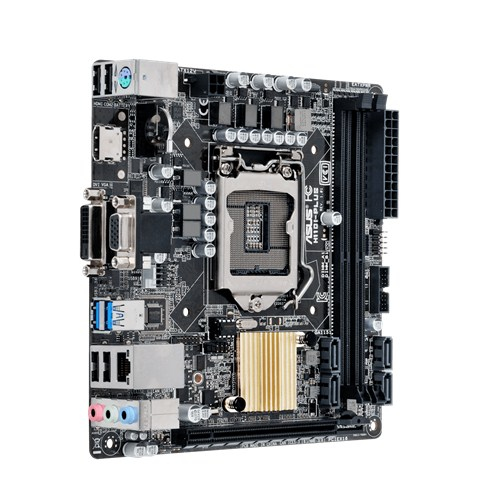

ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX
Model H110I-PLUS/CSMPart no. 90MB0PX0-M0AAY0EAN 889349259580
62 specifications
- Memory32 GB
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- USB 2.0 connectors1
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Memory
- 32 GB
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- H110I-PLUS/CSM
- Part numbers
- 90MB0PX0-M0AAY0, 90MB0PX0-M0EAYC
- EAN / UPC
- 889349259580
- Also known as
- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX
Specifications
62 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Internal memory | 32 GB |
| Supported memory clock speeds | 2133 MHz |
| Unbuffered memory | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

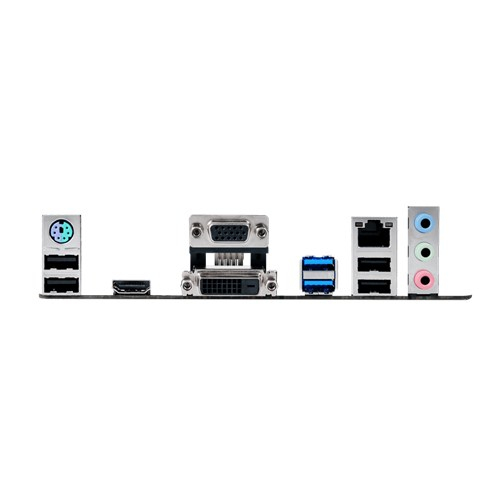

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H110 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Height | 170 mm |

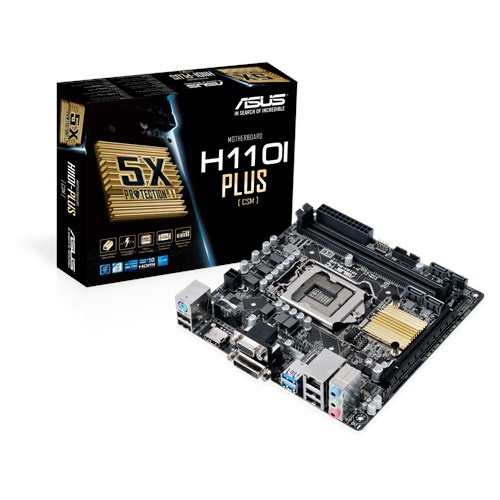

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX
No reviews yet
Be the first to tell others how ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX

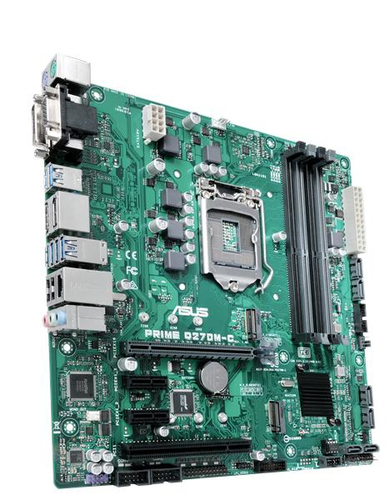

All motherboard comparisons- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsASUS PRIME Q270M-CCompare specs

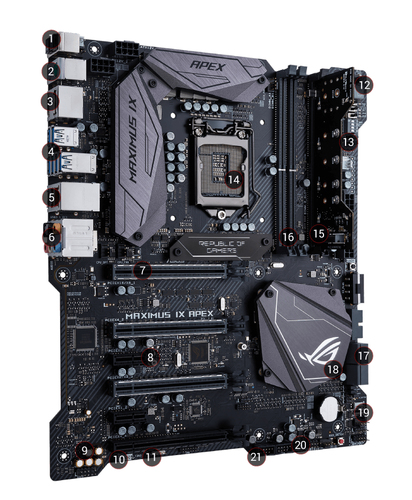

- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsASUS ROG MAXIMUS IX APEXCompare specs
- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsASUS PRIME Z270-ARCompare specs
- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsASUS ROG STRIX B250F GAMINGCompare specs
- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsGIGABYTE GA-Z270MX-GAMING 5Compare specs
- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsGIGABYTE GA-H270M-D3H motherboard Intel® H270 LGA 1151 (Socket H4) micro ATXCompare specs

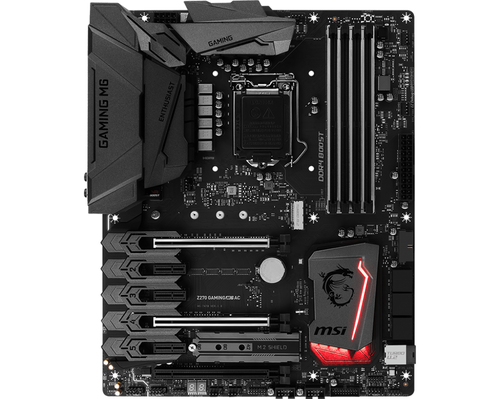

- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsMSI Z270 GAMING M6 ACCompare specs

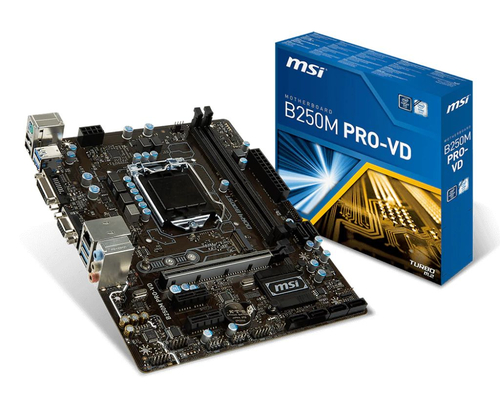

- ASUS H110I-PLUS/CSM Intel® H110 LGA 1151 (Socket H4) mini ITX vsMSI B250M PRO-VDCompare specs
