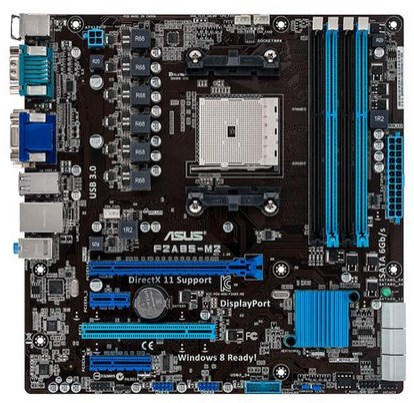

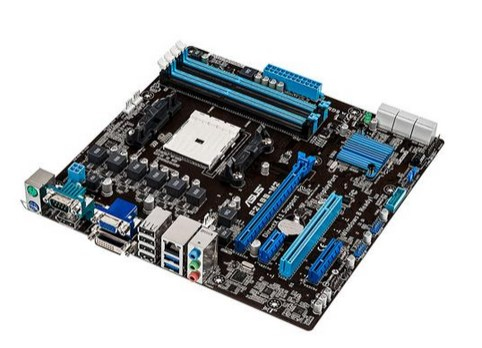

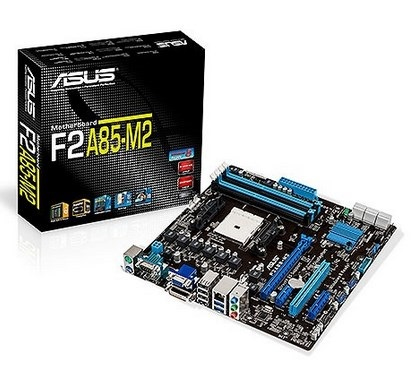

ASUS F2A85-M2 motherboard AMD A85X Socket FM2 micro ATX

ASUS F2A85-M2 motherboard AMD A85X Socket FM2 micro ATX

Model F2A85-M2

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
F2A85-M2
Part number
F2A85-M2
Also known as
ASUS F2A85-M2 motherboard AMD A85X Socket FM2 micro ATX

Specifications

58 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2
Compatible processor seriesAMD A
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 0+1, 5, 10, JBOD

Graphics

On-board graphics cardYes
Graphics card familyAMD
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA connectors6
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
TPM connectorYes

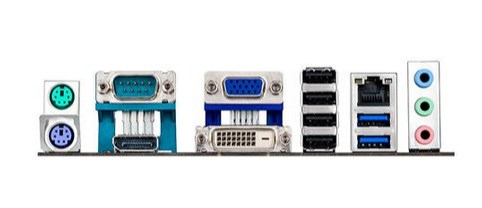

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A85X
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x4 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a

Packaging content

Cables includedSATA
