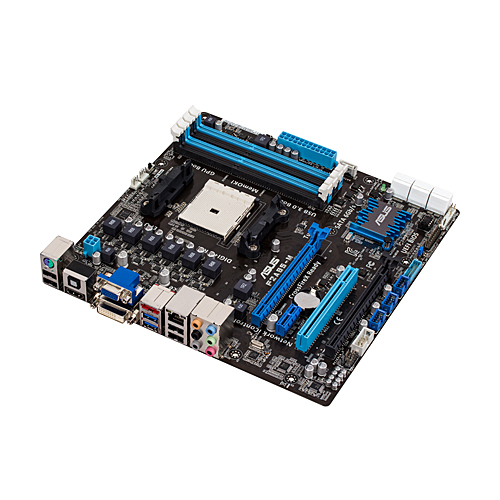

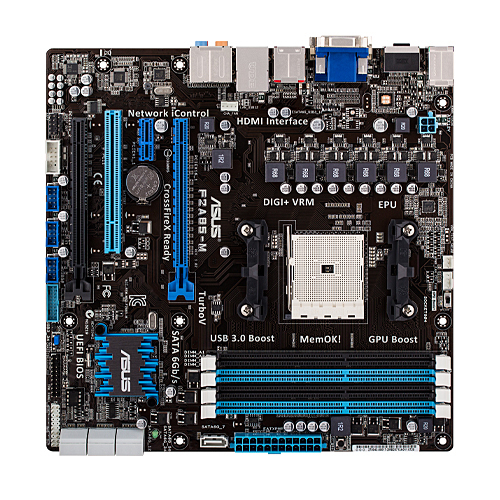

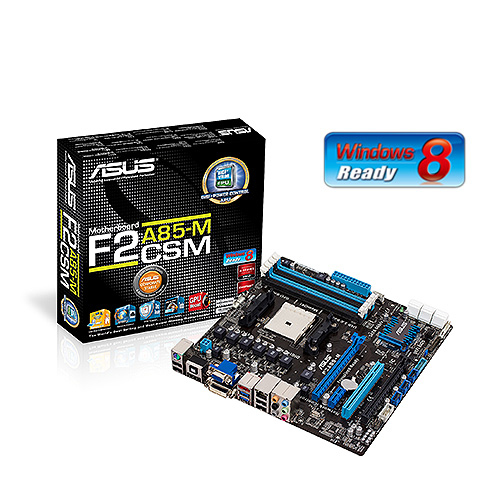

ASUS F2A85-M/CSM motherboard AMD A85X Socket FM2 micro ATX
Model F2A85-M/CSMEAN 886227317370
90 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- F2A85-M/CSM
- Part number
- F2A85-M/CSM
- EAN / UPC
- 886227317370, 8862273173704
- Also known as
- ASUS F2A85-M/CSM motherboard AMD A85X Socket FM2 micro ATX
Specifications
90 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM2 |
| Compatible processor series | AMD A |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1600,1866,2000,2133,2200,2250,2400 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon HD 7000 |
| Maximum resolution | 2560 x 1600 pixels |
| HDCP | Yes |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 7 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | No |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

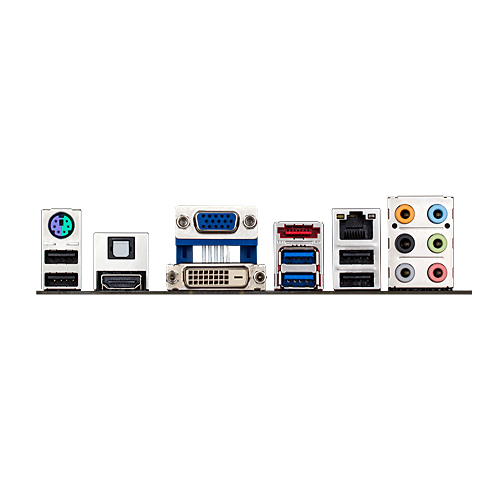

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111F |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A85X |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Compatible operating systems | Windows 8 |
| Overclocking features | ASUS C.P.R. |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express configurations | 1x1, 1x4, 1x16 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Antivirus |
| Bundled software | ASUS utilities ASUS Update |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| Controller interface type | AMD A85X FCH |
| Audio output | 6 |
| Azalia Digital Header (ADH) connector | No |
| Floppy disk drive connector | No |
| IPMI 2.0 slot | No |
| PCI Express slots quantity | 3 |
| Quick installation guide | Yes |
| Mac operating systems supported | No |
