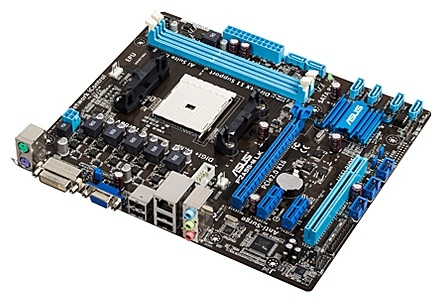

ASUS F2A55-M LK2

ASUS F2A55-M LK2

Model F2A55-M LK2Part no. 90MB0EP0-M0UBY0EAN 4716659380399

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
F2A55-M LK2
Part numbers
90MB0EP0-M0UBY0, F2A55-M LK2, 90MB0EP0-M0EAY0
EAN / UPC
4716659380399, 886227380398, 4716659380429
Also known as
ASUS F2A55-M LK2 AMD A55 FCH Socket FM2 micro ATX

Specifications

62 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2
Compatible processor seriesAMD A
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 10, JBOD

Graphics

Graphics card familyAMD
Maximum resolution2560 x 1600 pixels
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111F
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55 FCH
Audio chipRealtek ALC887-VD
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width226 mm
Depth173 mm
