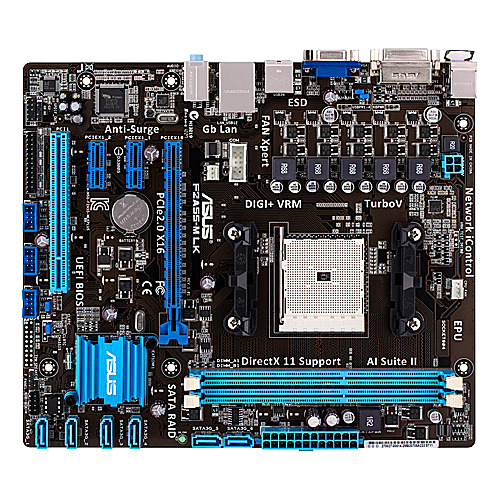

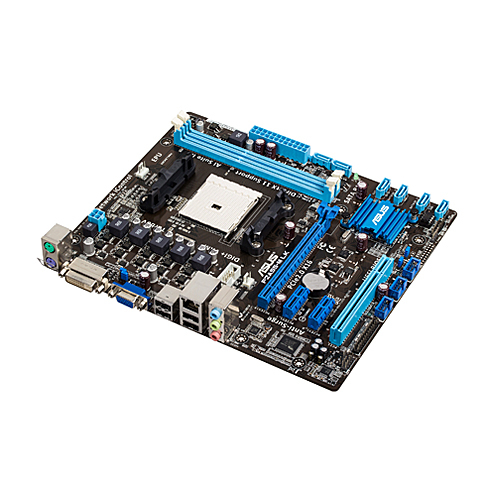

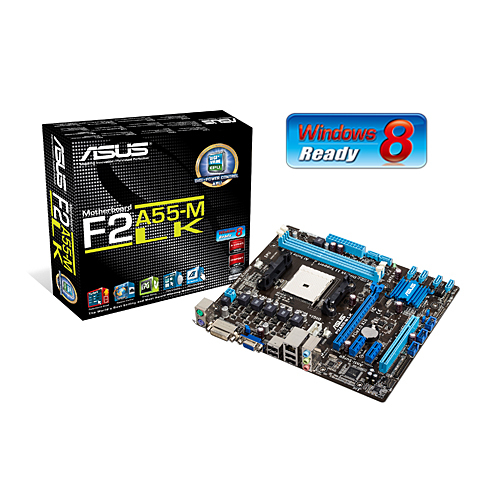

ASUS F2A55-M LK

ASUS F2A55-M LK

Model F2A55-M LKPart no. 90-MIBJT0-G0EAY0GZEAN 4716659329480

76 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
2048 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
F2A55-M LK
Part numbers
90-MIBJT0-G0EAY0GZ, F2A55-M LK
EAN / UPC
4716659329480, 886227329489
Also known as
ASUS F2A55-M LK AMD A55 Socket FM2 micro ATX

Specifications

76 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM2
Compatible processor seriesAMD A
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2200,2250,2400 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology supportHybrid CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 7000
Maximum resolution2560 x 1600 pixels
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors6
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
Parallel connectorYes

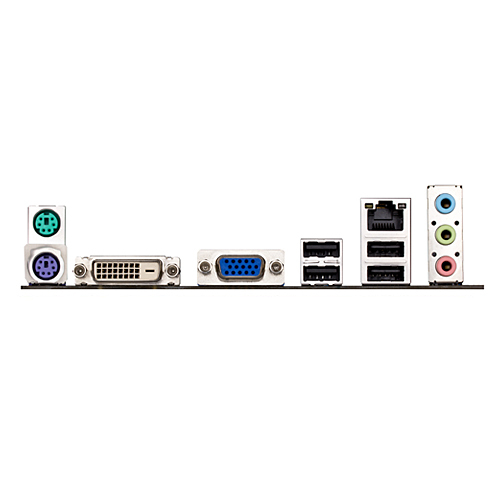

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111F

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express configurations1x16, 2x1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth208 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS utilities ASUS Update

Other features

Controller interface typeAMD A55
Audio output3
PCI Express slots quantity3
Quick installation guideYes
