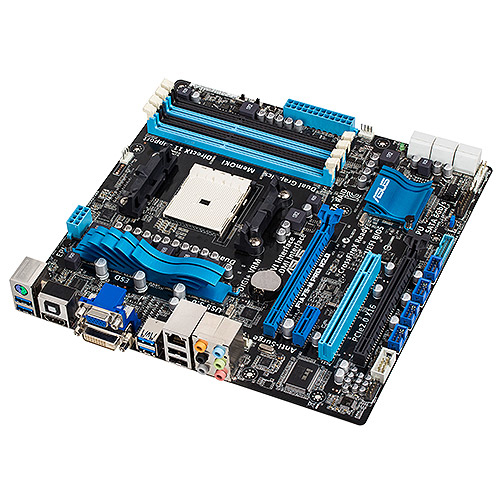

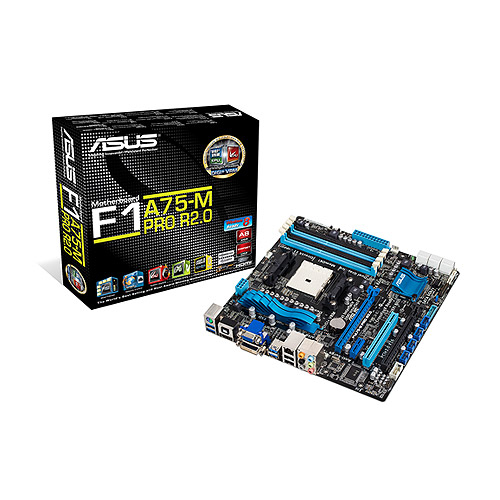

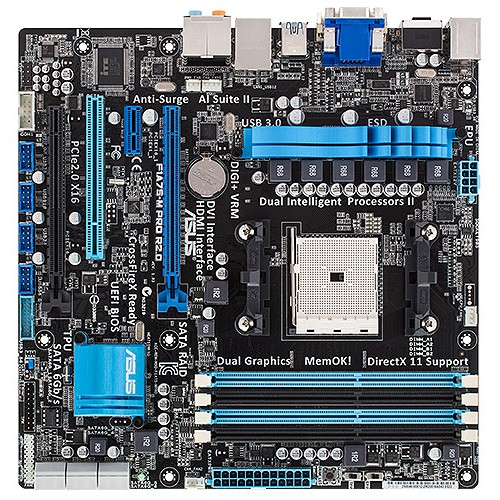

ASUS F1A75-M PRO R2.0

ASUS F1A75-M PRO R2.0

Model F1A75-M PRO R2.0Part no. 90-MIBJV0-G0EAY0MZEAN 4719543188576

73 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
F1A75-M PRO R2.0
Part numbers
90-MIBJV0-G0EAY0MZ, F1A75-M PRO R2.0
EAN / UPC
4719543188576, 610839188574
Also known as
ASUS F1A75-M PRO R2.0 AMD A75 FCH Socket FM1 micro ATX

Specifications

73 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2250 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology support2-Way CrossFireX
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6000
Maximum resolution1920 x 1600 pixels
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes

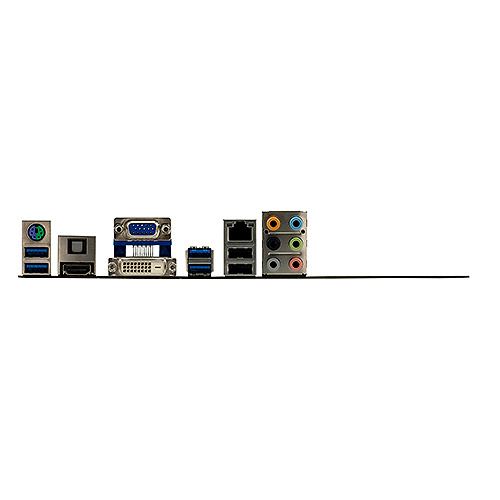

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111F

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A75 FCH
Audio chipRealtek ALC892
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Overclocking featuresASUS C.P.R.

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express configurations1x1, 1x4, 1x16
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS PC Probe II ASUS Update

Other features

Controller interface typeAMD A75 FCH
Audio output6
Quick installation guideYes
