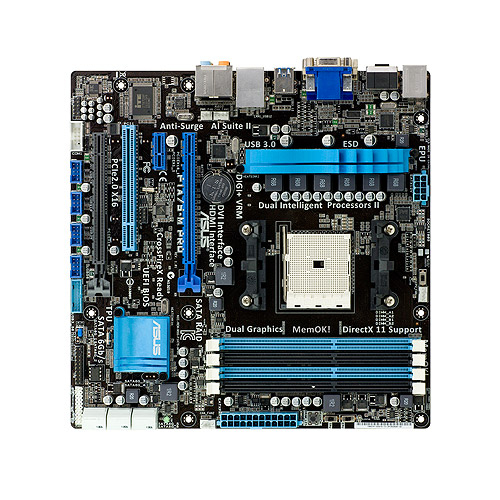

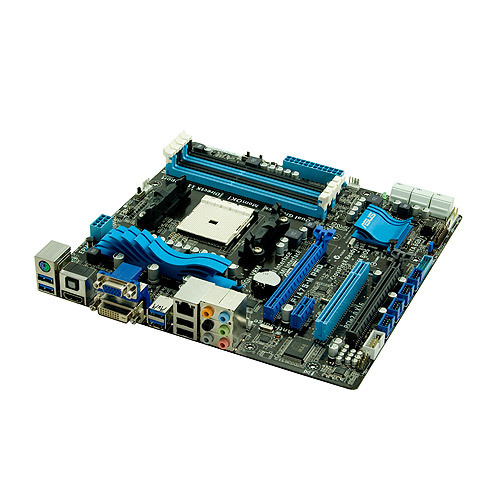

ASUS F1A75-M PRO/CSM

ASUS F1A75-M PRO/CSM

Model F1A75-M PRO/CSMEAN 610839181735

49 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • RAID levels0, 1, 10, JBOD
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
RAID levels
0, 1, 10, JBOD
Parallel processing technology support
Not supported
USB 2.0 connectors
4
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
F1A75-M PRO/CSM
Part number
F1A75-M PRO/CSM
EAN / UPC
610839181735
Also known as
ASUS F1A75-M PRO/CSM motherboard AMD A75 Socket FM1 ATX

Specifications

49 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesIntel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory64 GB
Supported memory module capacities4GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

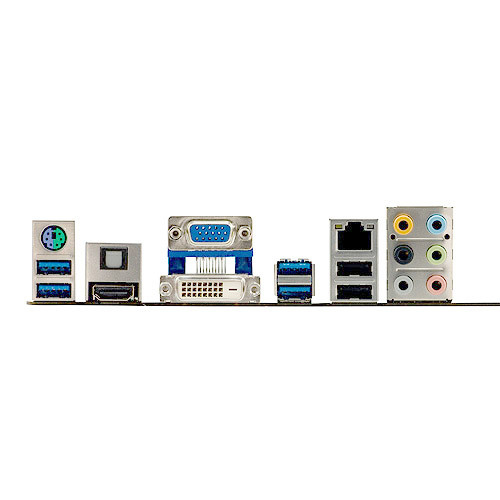

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A75
Audio chipRealtek ALC892
Power source typeATX

Expansion slots

PCI Express x4 slots1
PCI Express x16 slots1

BIOS

BIOS typeAMI
BIOS memory size32 Mbit
ACPI version2.0

Weight & dimensions

Width244 mm
Depth244 mm
