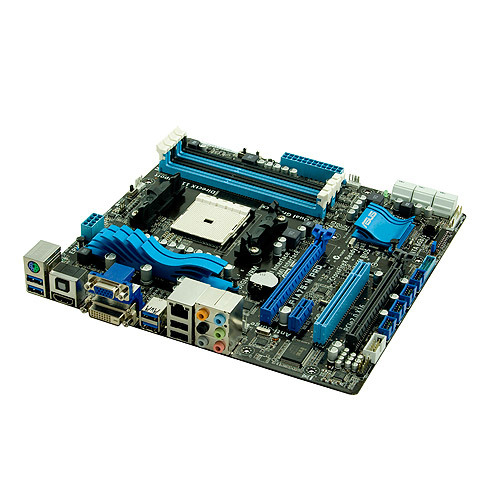

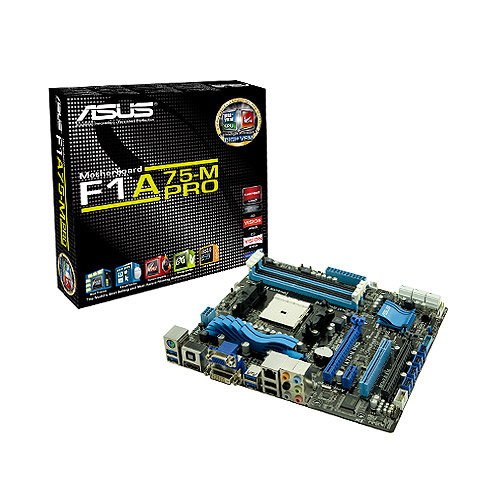

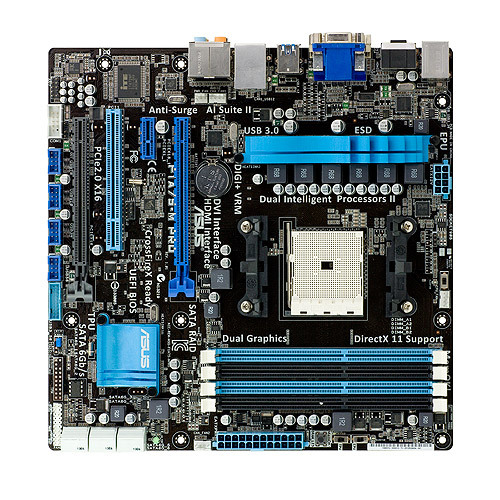

ASUS F1A75-M PRO

ASUS F1A75-M PRO

Model F1A75-M PROPart no. 90-MIBGJ0-G0EAY00ZEAN 4719543181324

60 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 10, JBOD
  • On-board graphics cardYes
  • USB 2.0 ports quantity2
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 10, JBOD
On-board graphics card
Yes
USB 2.0 ports quantity
2
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
F1A75-M PRO
Part numbers
90-MIBGJ0-G0EAY00Z, F1A75-M PRO
EAN / UPC
4719543181324, 610839181322
Also known as
ASUS F1A75-M PRO AMD A75 Socket FM1 mini ATX

Specifications

60 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Maximum number of SMP processors1

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory64 GB
Supported memory module capacities16GB, 1GB, 2GB, 4GB, 8GB

Storage controllers

RAID levels0, 1, 10, JBOD

Graphics

On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6000

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of COM connectors1

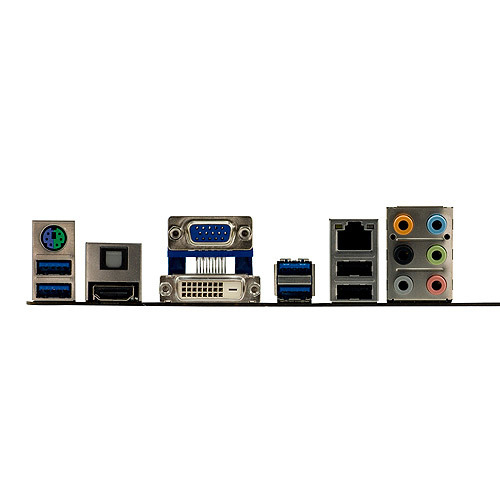

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipsetAMD A75
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Overclocking featuresASUS C.P.R.(CPU Parameter Recall)

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeAMI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAnti-virus
Bundled softwareASUS PC Probe II ASUS Update

Other features

Controller interface typeAMD A75
Quick installation guideYes
