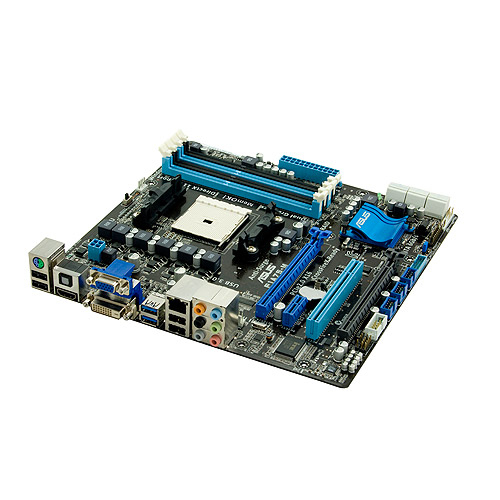

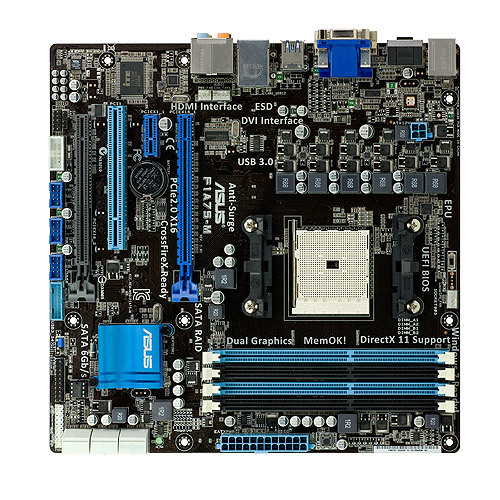

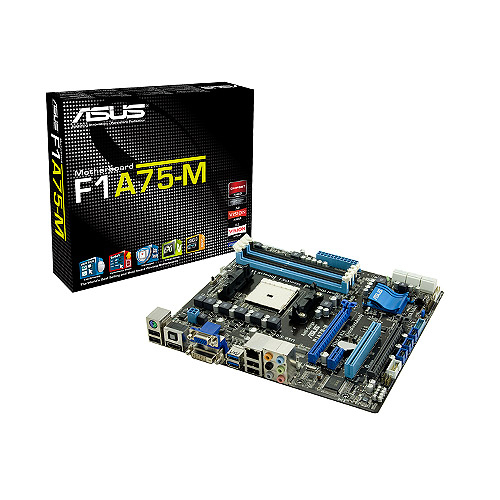

ASUS F1A75-M AMD A75 Socket FM1 micro ATX
Model F1A75-MPart no. 90-MIBGK0-G0EAY0GZEAN 610839181490
59 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- F1A75-M
- Part numbers
- 90-MIBGK0-G0EAY0GZ, 90-MIBGK0-G0AAY0GZ, 90-MIBGK0-G0EAY00Z, F1A75-M
- EAN / UPC
- 610839181490, 4719543181492, 6108391814900
- Also known as
- ASUS F1A75-M AMD A75 Socket FM1 micro ATX
Specifications
59 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon HD 6000 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| TPM connector | Yes |

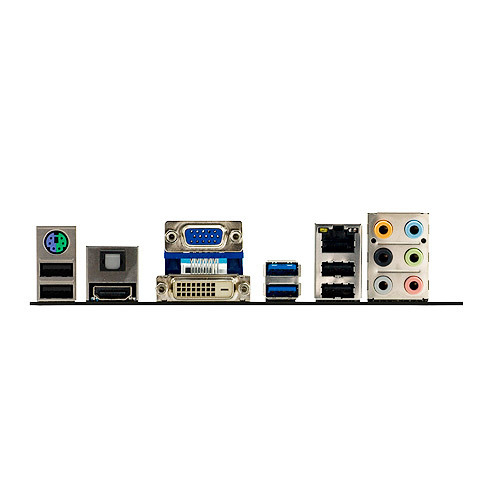

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Atheros L1E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A75 |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller interface type | AMD A75 FCH (Hudson D3) |
| Quick installation guide | Yes |
