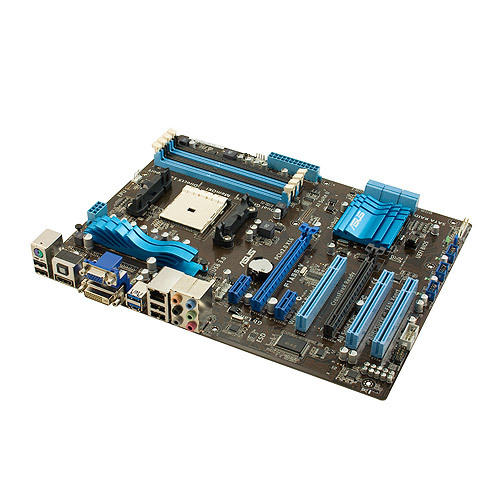

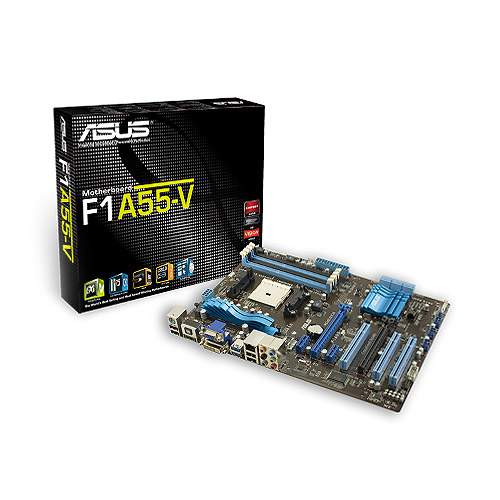

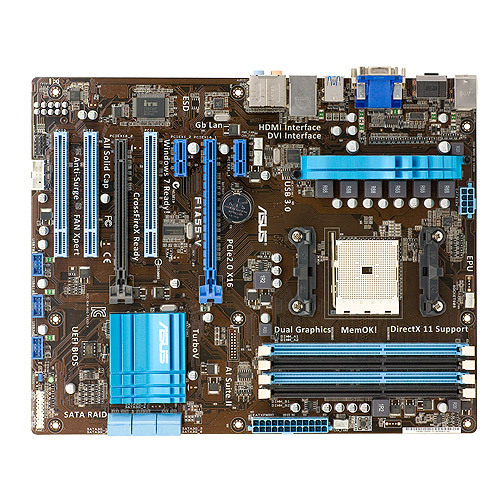

ASUS F1A55-V AMD A55 Socket FM1 ATX

ASUS F1A55-V AMD A55 Socket FM1 ATX

Model F1A55-VPart no. 90-MIBH60-G0EAY0DZEAN 4719543181942

58 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • On-board graphics cardYes
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
On-board graphics card
Yes
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
F1A55-V
Part numbers
90-MIBH60-G0EAY0DZ, F1A55-V
EAN / UPC
4719543181942, 4719543181270
Also known as
ASUS F1A55-V AMD A55 Socket FM1 ATX

Specifications

58 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesIntel® Pentium® Dual-Core

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2200 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6000

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Number of COM connectors1

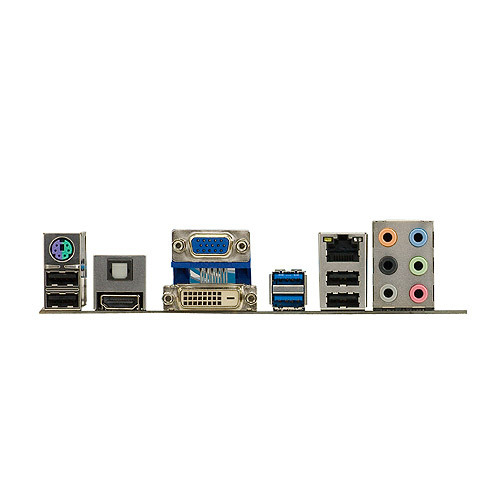

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI slots3

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeAMD A55 FCH
Quick installation guideYes
