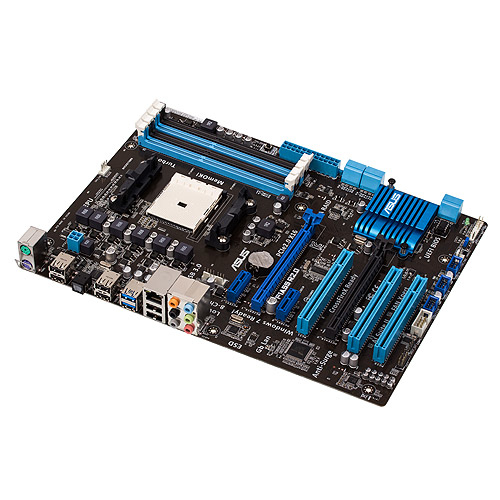

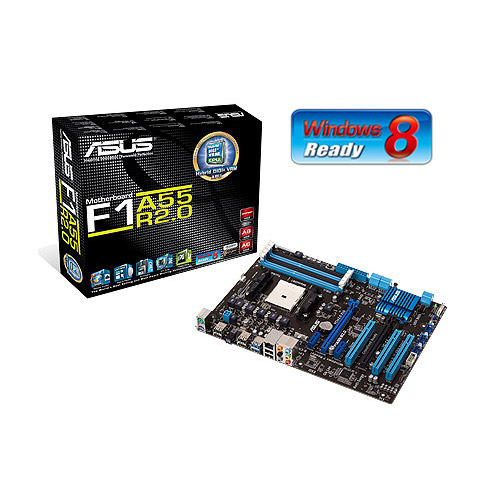

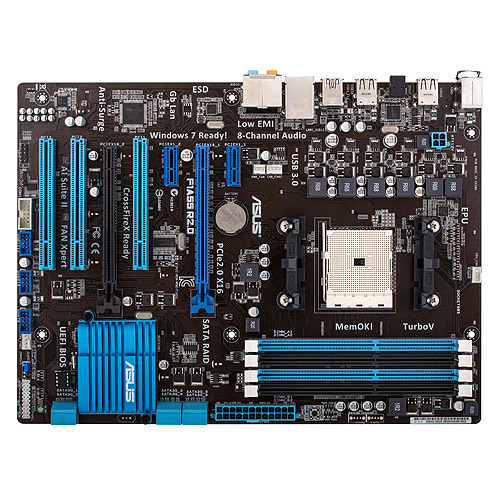

ASUS F1A55 R2.0

ASUS F1A55 R2.0

Model F1A55 R2.0Part no. 90-MIBJW0-G0EAY0DZEAN 4719543188569

64 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
F1A55 R2.0
Part numbers
90-MIBJW0-G0EAY0DZ, F1A55 R2.0
EAN / UPC
4719543188569
Also known as
ASUS F1A55 R2.0 AMD A55 Socket FM1 ATX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1866,2250 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology support2-Way CrossFireX
On-board graphics cardYes
Graphics cardRadeon HD 6000
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1

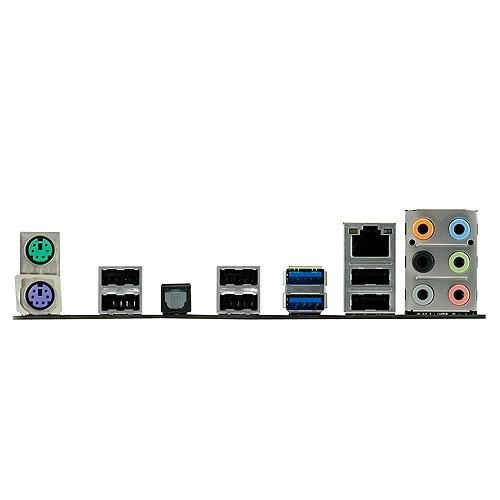

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Overclocking featuresASUS C.P.R.(CPU Parameter Recall)

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI Express configurations1x4, 1x16, 2x1
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth224 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS Utilities ASUS Update

Other features

Controller interface typeAMD A55 FCH
Audio output6
Quick installation guideYes
