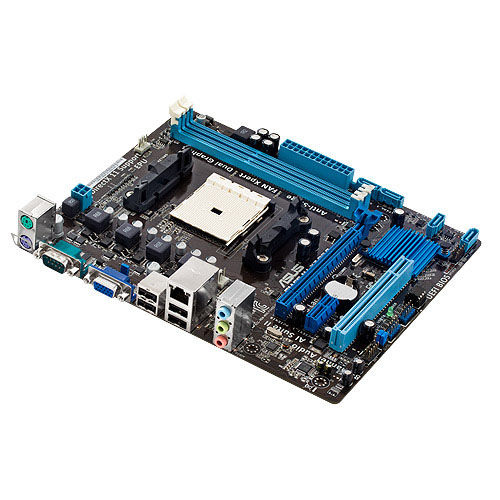

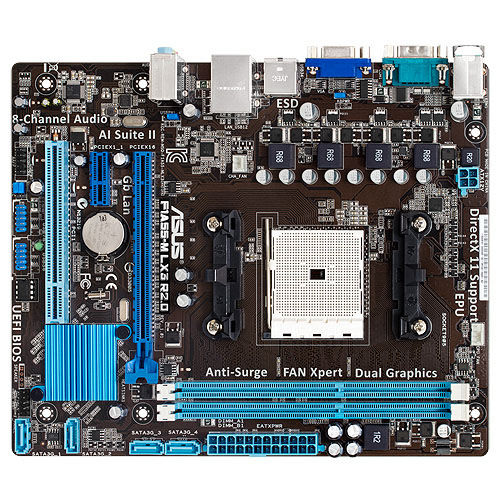

ASUS F1A55-M LX3 R2.0

ASUS F1A55-M LX3 R2.0

Model F1A55-M LX3 R2.0

56 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
F1A55-M LX3 R2.0
Part number
F1A55-M LX3 R2.0
Also known as
ASUS F1A55-M LX3 R2.0 motherboard AMD A55 FCH Socket FM1 micro ATX

Specifications

56 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1

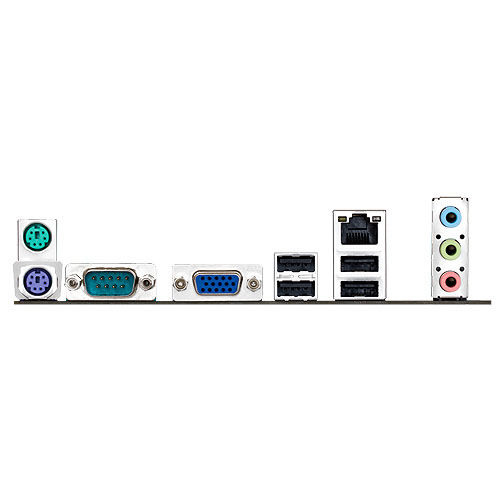

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55 FCH
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Weight & dimensions

Width226 mm
Depth186 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
