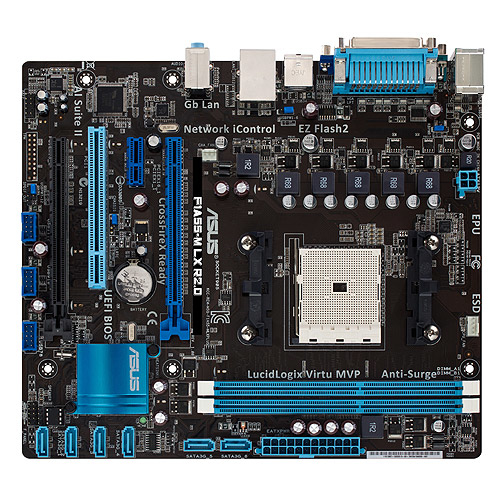

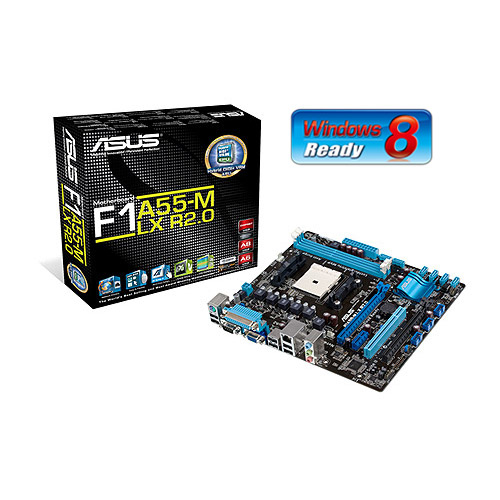

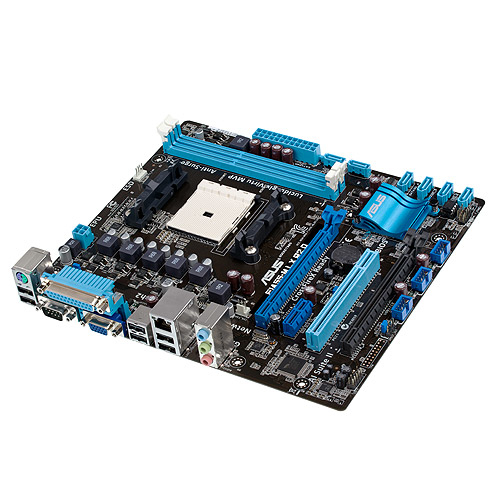

ASUS F1A55-M LX R2.0

ASUS F1A55-M LX R2.0

Model F1A55-M LX R2.0Part no. 90-MIBIQ0-G0EAY0GZEAN 4719543186633

62 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • On-board graphics cardYes
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
On-board graphics card
Yes
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
F1A55-M LX R2.0
Part number
90-MIBIQ0-G0EAY0GZ
EAN / UPC
4719543186633
Also known as
ASUS F1A55-M LX R2.0 AMD A55 Socket FM1 micro ATX

Specifications

62 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2250 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

Parallel processing technology support2-Way CrossFireX, LucidLogix Virtu
On-board graphics cardYes
Graphics cardRadeon HD 6000
Maximum resolution1920 x 1600 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express configurations1x1, 1x4, 1x16
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version3.0

Weight & dimensions

Width244 mm
Depth213 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS utilities ASUS Update

Other features

Controller interface typeAMD A55 FCH
Audio output3
