ASUS F1A55-M LX PLUS

ASUS F1A55-M LX PLUS

Model F1A55-M LX PLUSPart no. 90-MIBHB0-G0EAY0DZEAN 4719543182253

71 specifications
  • Memory0 GB
  • Processor manufacturerAMD
  • Number of memory slots2
  • Supported storage drive interfacesSATA II
  • On-board graphics cardYes
  • USB 2.0 connectors3
See all specifications

Overview

Memory
0 GB
Processor manufacturer
AMD
Number of memory slots
2
Supported storage drive interfaces
SATA II
On-board graphics card
Yes
USB 2.0 connectors
3
Brand
ASUS
Category
Motherboard
Model
F1A55-M LX PLUS
Part numbers
90-MIBHB0-G0EAY0DZ, F1A55-M LX PLUS
EAN / UPC
4719543182253, 610839182251
Also known as
ASUS F1A55-M LX PLUS AMD A55 Socket FM1 micro ATX

Specifications

71 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2

Memory

Number of memory slots2
Memory channelsDual-channel
Internal memory0 GB
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Supported memory module capacities16GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6000

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Number of IEEE1394 connectors0
TPM connectorNo

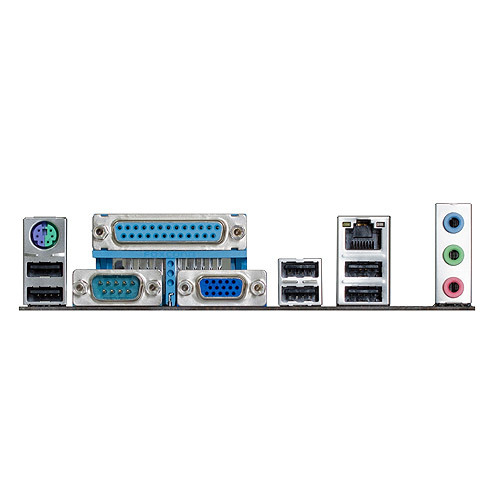

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
DVI-I ports quantity0
DisplayPorts quantity0
Headphone outputs1
Microphone inYes
Digital audio optical out0
COM ports quantity1
Parallel ports quantity1
Serial ports quantity1
WiFi-AP antenna jack0
Modem (RJ-11) ports0

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
BluetoothNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
CertificationRoHS

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth213 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in connectorNo
Controller interface typeSATA
CNR slotNo
GAME/MIDI connectorNo
