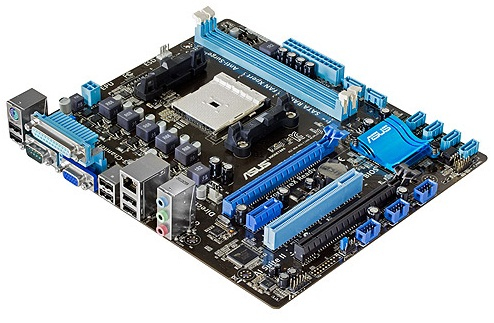

ASUS F1A55-M LX

ASUS F1A55-M LX

Model F1A55-M LXEAN 4719543182352

66 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • On-board graphics cardYes
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
On-board graphics card
Yes
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
F1A55-M LX
Part numbers
F1A55-M LX, 90-MIBHJ0-G0EAY0GZ
EAN / UPC
4719543182352
Also known as
ASUS F1A55-M LX motherboard AMD A55 Socket FM1 micro ATX

Specifications

66 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD A, AMD E2
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 10, JBOD

Graphics

On-board graphics cardYes
Graphics cardRadeon HD 6000
Maximum resolution1920 x 1600 pixels
DirectX version11
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1

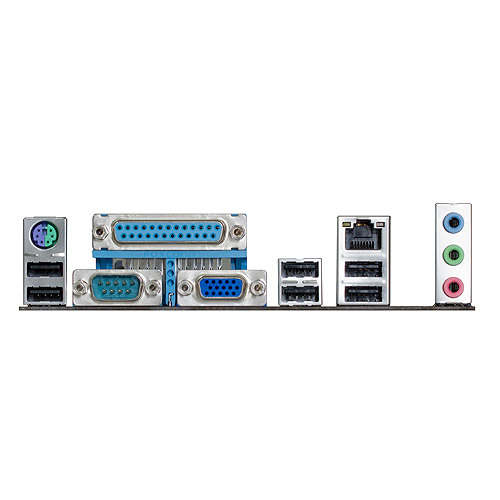

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Overclocking featuresASUS C.P.R.

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width224 mm
Depth213 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAnti-virus
Bundled softwareASUS utilities ASUS Update

Other features

Audio output3
