ASUS F1A55-M LE

ASUS F1A55-M LE

Model F1A55-M LEPart no. 90-MIBH00-G0EAY0DZEAN 4719543181751

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • On-board graphics cardYes
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
On-board graphics card
Yes
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
F1A55-M LE
Part numbers
90-MIBH00-G0EAY0DZ, 90-MIBH00-G0EAY0GZ, F1A55-M LE
EAN / UPC
4719543181751, 610839181759
Also known as
ASUS F1A55-M LE AMD A55 Socket FM1 micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket FM1
Compatible processor seriesAMD Athlon II X2, AMD Athlon II X4

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II
RAID levels0, 1, 10, JBOD

Graphics

On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6000

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1
Parallel connectorYes

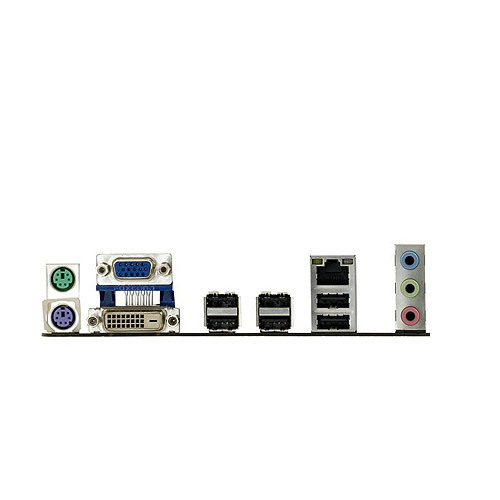

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD A55
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth229 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeAMD A55 FCH
Quick installation guideYes
