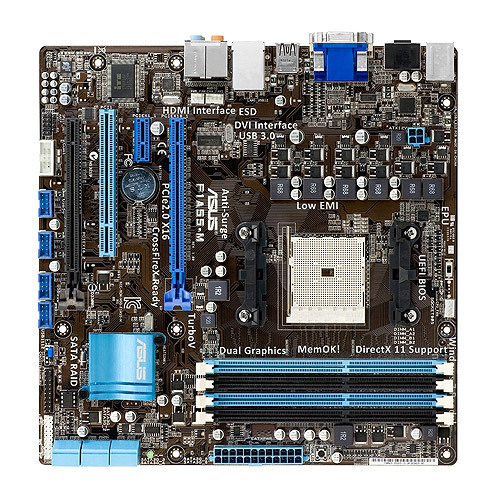

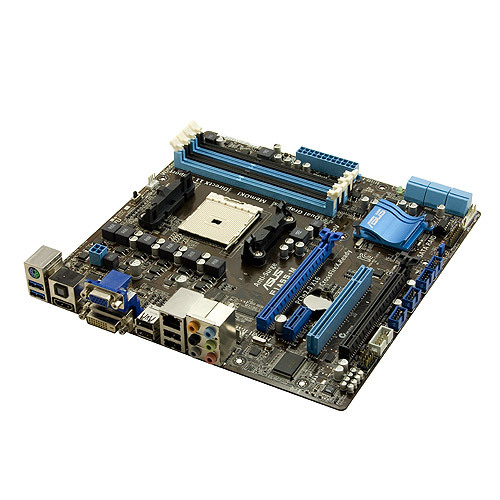

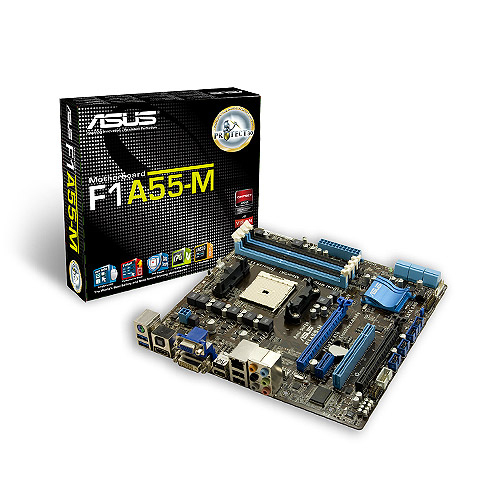

ASUS F1A55-M AMD A55 Socket FM1 micro ATX
Model F1A55-MPart no. 90-MIBH30-G0EAY0GZEAN 4719543181980
58 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- On-board graphics cardYes
- USB 2.0 connectors4
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- On-board graphics card
- Yes
- USB 2.0 connectors
- 4
- Ethernet interface type
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- F1A55-M
- Part number
- 90-MIBH30-G0EAY0GZ
- EAN / UPC
- 4719543181980
- Also known as
- ASUS F1A55-M AMD A55 Socket FM1 micro ATX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket FM1 |
| Compatible processor series | Intel® Pentium® Dual-Core |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2200 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID levels | 0, 1, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon HD 6000 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA II connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| TPM connector | Yes |

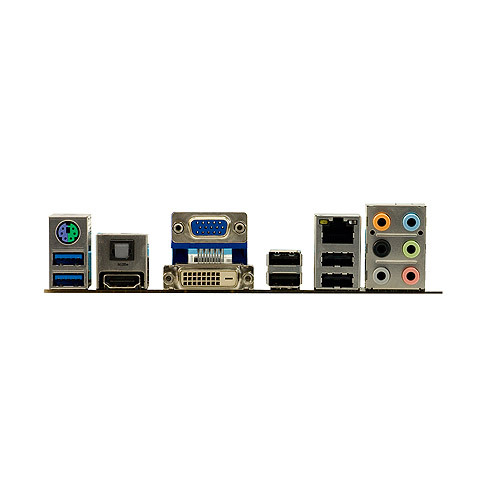

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A55 |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | AMD A55 FCH |
What people say
Reviews & ratings
ASUS F1A55-M AMD A55 Socket FM1 micro ATX
No reviews yet
Be the first to tell others how ASUS F1A55-M AMD A55 Socket FM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS F1A55-M AMD A55 Socket FM1 micro ATX
All motherboard comparisons- ASUS F1A55-M AMD A55 Socket FM1 micro ATX vsASUS F1A55-M LECompare specs
- ASUS F1A55-M AMD A55 Socket FM1 micro ATX vsASUS F1A55 AMD A55 Socket FM1 ATXCompare specs

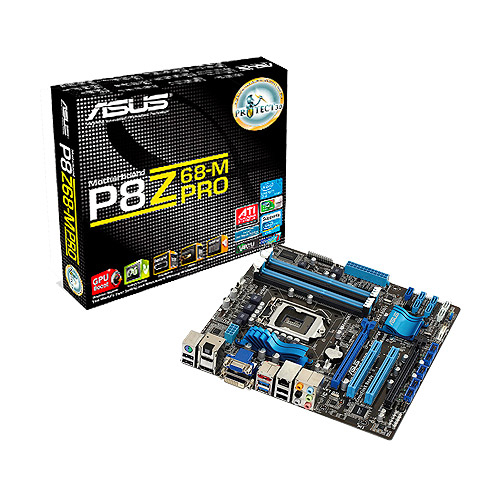

- ASUS F1A55-M AMD A55 Socket FM1 micro ATX vsASUS P8Z68-M PROCompare specs

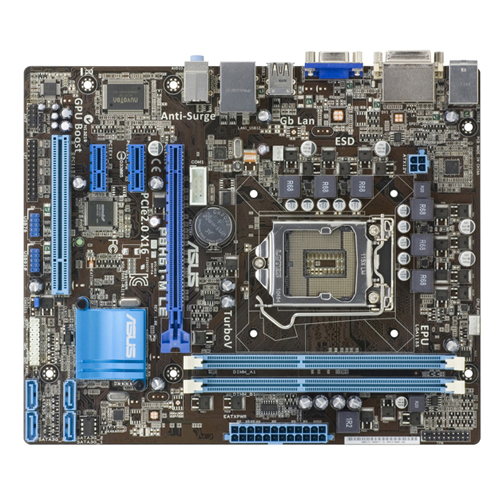

- ASUS F1A55-M AMD A55 Socket FM1 micro ATX vsASUS P8H61-M LE/CSMCompare specs
