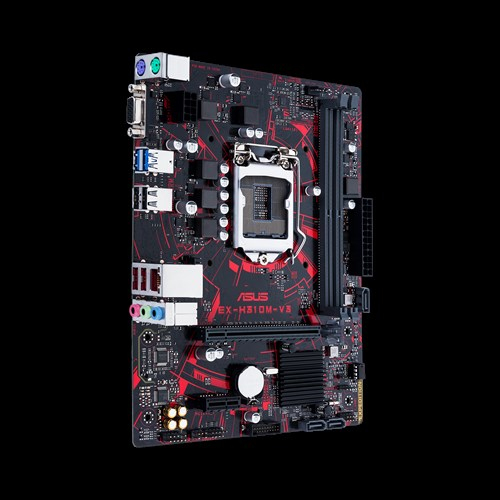

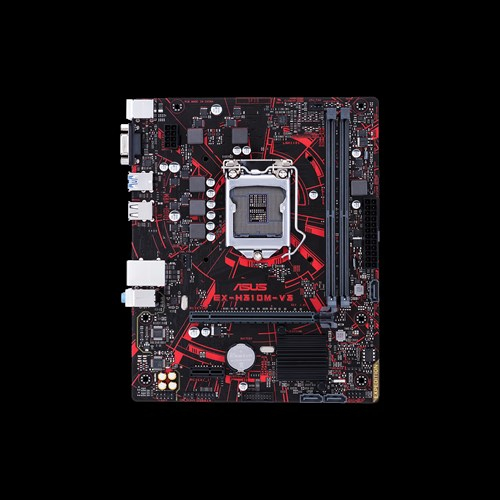

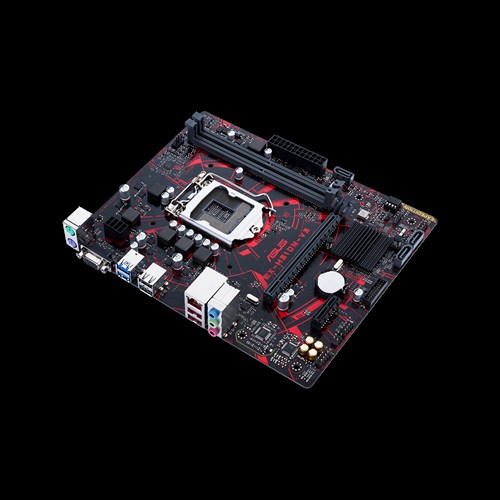

ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
Model EX-H310M-V3
39 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA
- Maximum resolution1920 x 1200 pixels
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA
- Maximum resolution
- 1920 x 1200 pixels
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- EX-H310M-V3
- Part number
- EX-H310M-V3
- Also known as
- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i9 |
| Supported processor sockets | LGA 1151 (Socket H4) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 3 |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| Number of COM connectors | 1 |

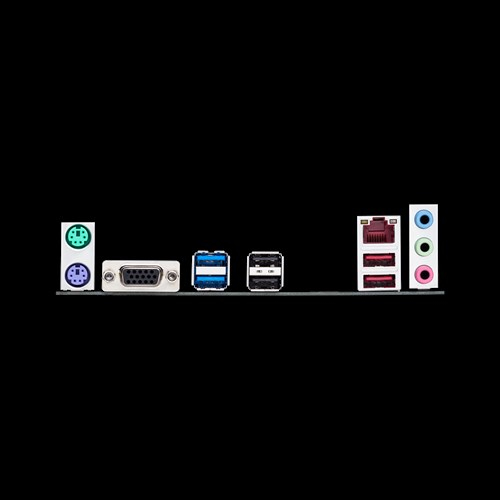

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111H |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H310 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 8.0 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 226 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX

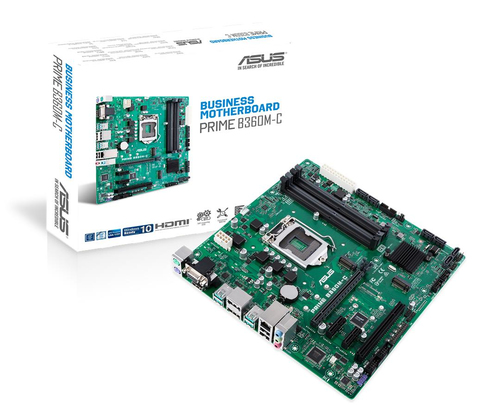

All motherboard comparisons- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsASUS PRIME B360M-C/CSMCompare specs

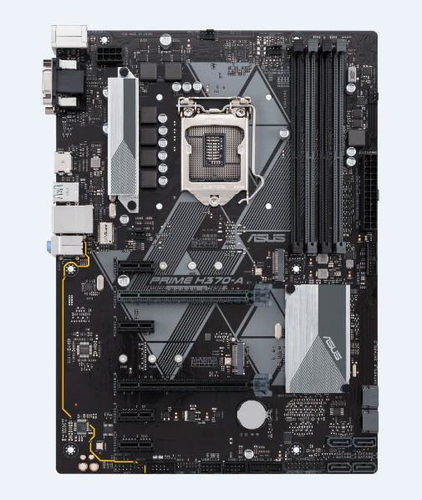

- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsASUS Prime H370-A/CSMCompare specs
- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsASUS TUF H370-PRO GAMING (WI-FI)Compare specs
- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsASUS B360M-C Intel® B360 LGA 1151 (Socket H4) micro ATXCompare specs

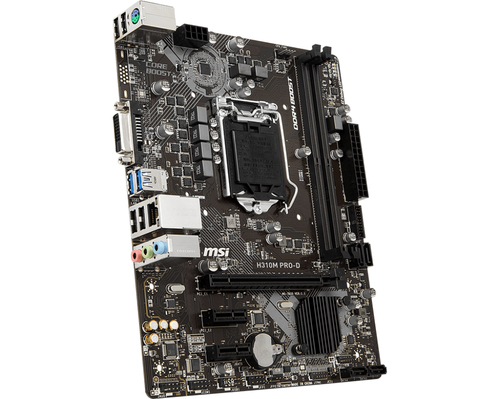

- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsMSI H310M PRO-DCompare specs

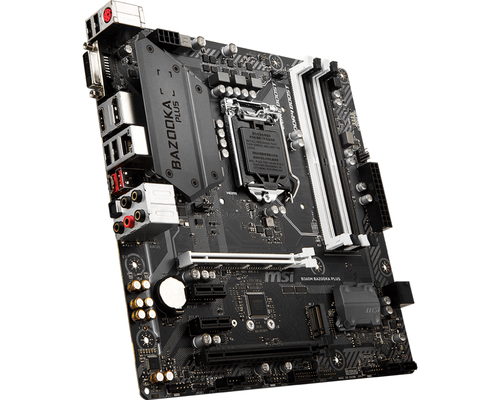

- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsMSI B360M Bazooka PlusCompare specs

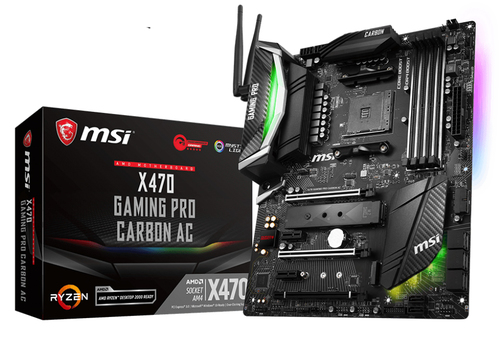

- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsMSI X470 Gaming Pro Carbon ACCompare specs

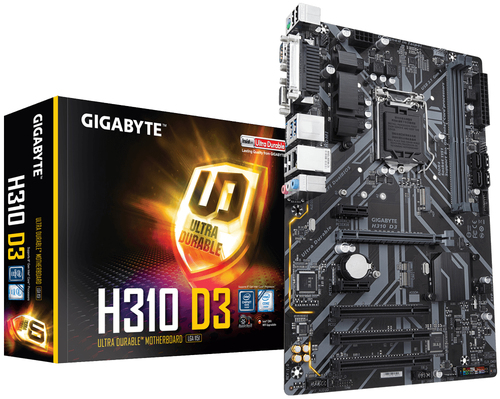

- ASUS EX-H310M-V3 motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX vsGIGABYTE H310 D3Compare specs
