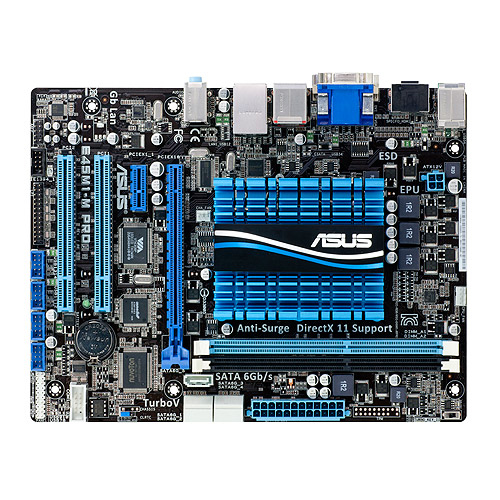

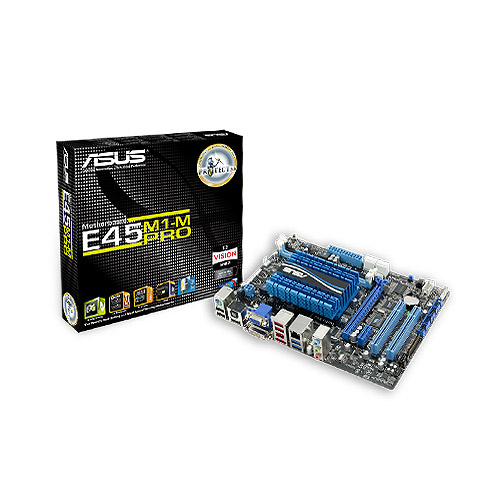

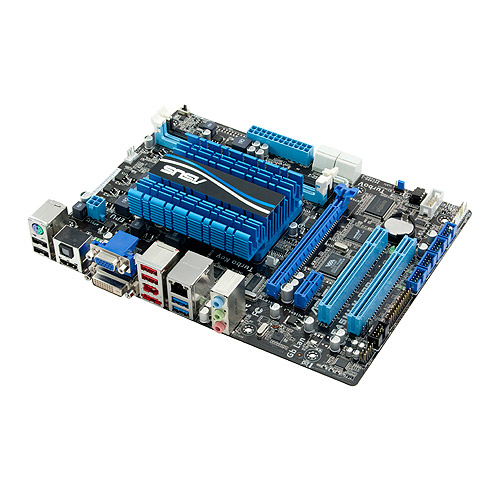

ASUS E45M1-M PRO

ASUS E45M1-M PRO

Model E45M1-M PROEAN 4719543182291

60 specifications
  • ProcessorE-450
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
See all specifications

Overview

Processor
E-450
Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Parallel processing technology support
Not supported
USB 2.0 connectors
4
Brand
ASUS
Category
Motherboard
Model
E45M1-M PRO
Part numbers
E45M1-M PRO, 90-MIBHG0-G0EAY0DZ
EAN / UPC
4719543182291, 6108391822998
Also known as
ASUS E45M1-M PRO motherboard AMD Hudson M1 NA (integrated CPU) ATX

Specifications

60 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketNA (integrated CPU)
Compatible processor seriesAMD E2
System bus rate2.5 GT/s
Processor modelE-450

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesSATA

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyATI
Graphics cardRadeon HD 6320

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors5
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Number of COM connectors1
Number of IEEE1394 connectors1
Parallel connectorYes

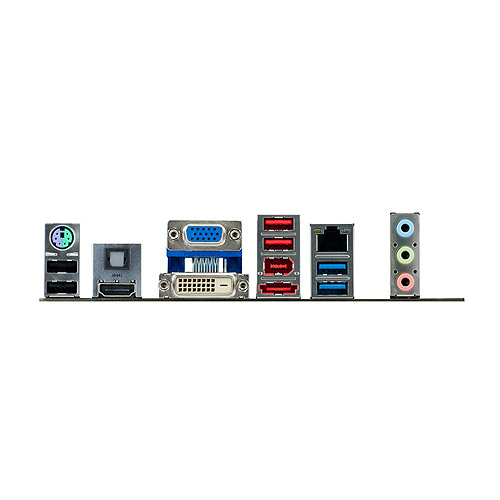

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Modem (RJ-11) ports0

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD Hudson M1
Audio chipRealtek ALC887
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth183 mm

Packaging content

Drivers includedYes

Other features

Controller 2nd interface typeeSATA 6Gb/s
Controller interface typeSATA 6Gb/s
Audio output7.1
