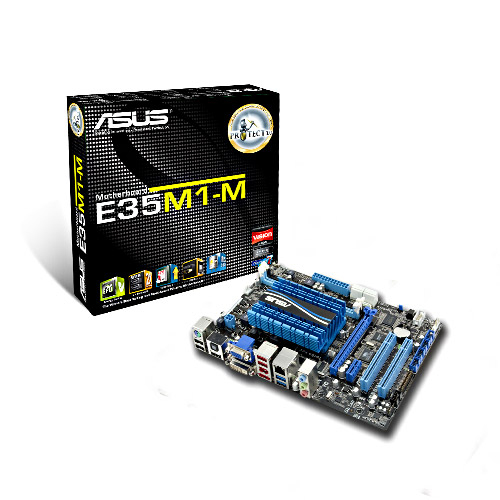

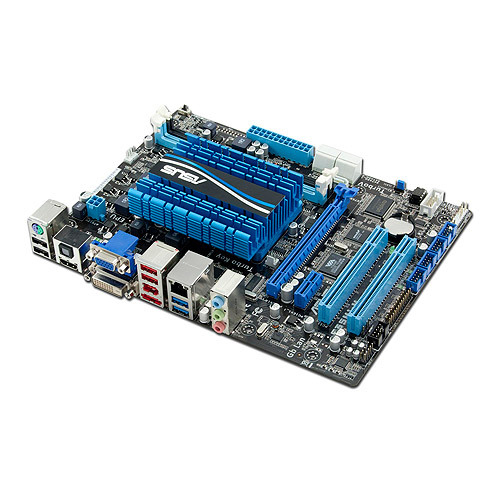

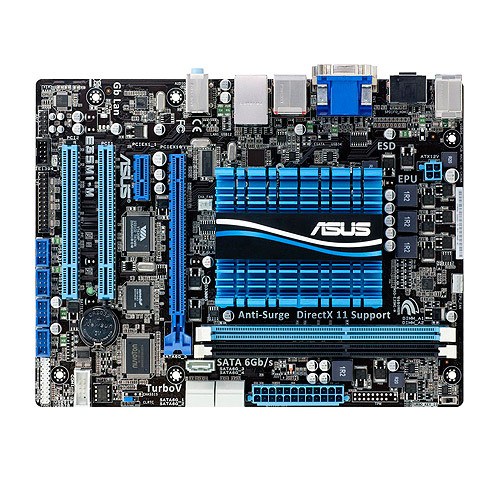

ASUS E35M1-M AMD Hudson M1 NA (integrated CPU) micro ATX

ASUS E35M1-M AMD Hudson M1 NA (integrated CPU) micro ATX

Model E35M1-MPart no. 90MIBEU0G0EAY0DZEAN 5913465345034

58 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • USB 2.0 ports quantity6
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
4
USB 2.0 ports quantity
6
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
E35M1-M
Part numbers
90MIBEU0G0EAY0DZ, 90-MIBEU0-G0EAY0DZ, E35M1-M
EAN / UPC
5913465345034, 4719543178522, 610839178520, 4054318055968
Also known as
ASUS E35M1-M AMD Hudson M1 NA (integrated CPU) micro ATX

Specifications

58 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketNA (integrated CPU)
System bus rate2.5 GT/s

Memory

Number of memory slots2
ECC сompatibilityNon-ECC
Supported memory clock speeds1066 MHz
Maximum internal memory8 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyAMD
Graphics cardRadeon HD 6310
HDCPYes

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors5
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1
Parallel connectorYes

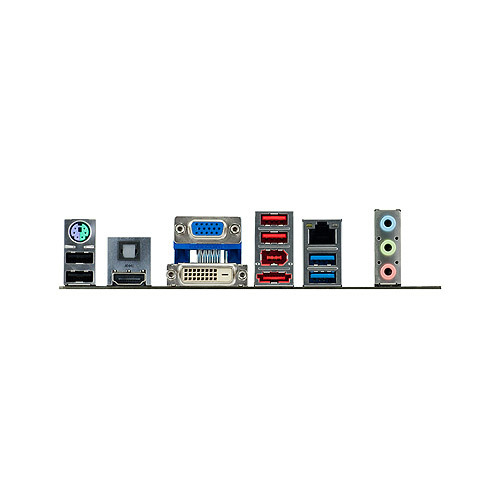

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetAMD Hudson M1
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width183 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Controller interface typeSATA 6Gb/s
