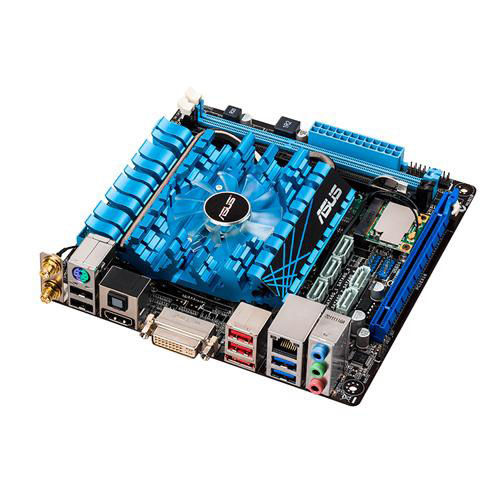

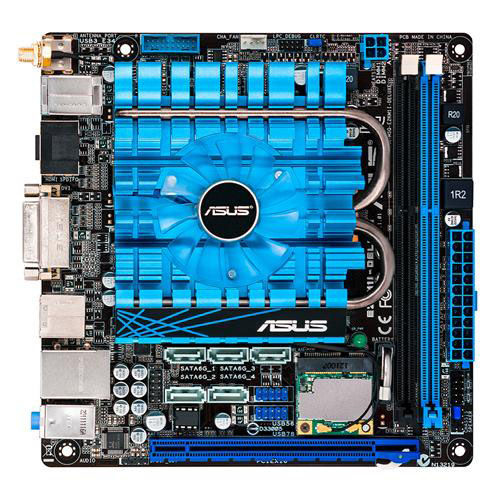

ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX
Model E2KM1I-DELUXEPart no. 90MB0E40-M0EAY0EAN 886227363414
83 specifications
- ProcessorE2-2000
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Processor
- E2-2000
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- E2KM1I-DELUXE
- Part number
- 90MB0E40-M0EAY0
- EAN / UPC
- 886227363414, 4716659363415
- Also known as
- ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX
Specifications
83 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | BGA 413 (Socket FT1) |
| Compatible processor series | AMD E2 |
| Maximum number of SMP processors | 1 |
| Processor model | E2-2000 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Single-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon HD 7340 |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 5 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

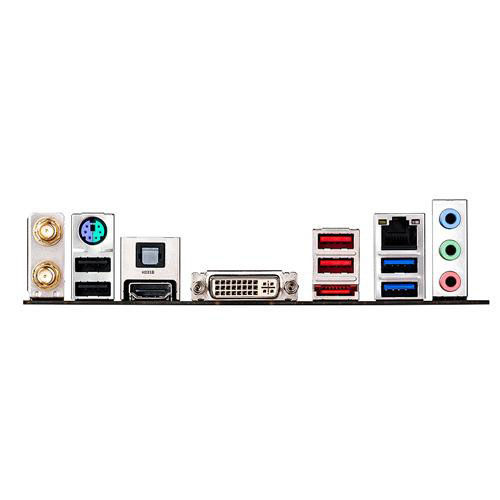

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 0 |
| Thunderbolt ports quantity | 0 |
| COM ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111F |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A50M FCH |
| Audio chip | Realtek ALC898 |
| Audio output channels | 7.1 channels |
| Cooling type | Active |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| S/PDIF in port | No |
| eSATA/USB 2.0 ports quantity | 0 |
What people say
Reviews & ratings
ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX
No reviews yet
Be the first to tell others how ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX
All motherboard comparisons- ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX vsASUS H61M-PLUS Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX vsASUS H61M-E Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

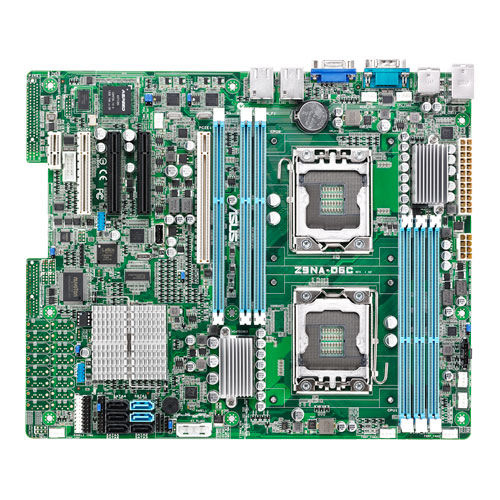

- ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX vsASUS Z9NA-D6C Intel® C602 LGA 1356 (Socket B2) ATXCompare specs

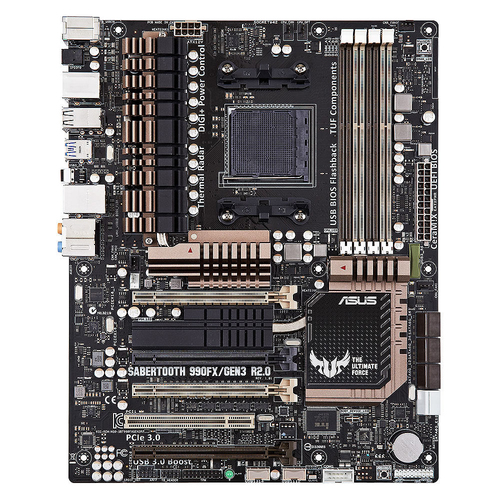

- ASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITX vsASUS SABERTOOTH 990FX/GEN3 R2.0Compare specs
