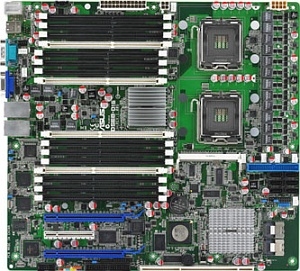

ASUS DSEB-D16/SAS LGA 771 (Socket J) SSI EEB
Model DSEB-D16/SASPart no. 90-MSVC60-G0UAY00ZEAN 610839159185
26 specifications
- Processor manufacturerIntel
- Maximum internal memory128 GB
- RAID levels0, 1, 5, 10
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- LAN controllerIntel® 82563EB
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 128 GB
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82563EB
- Brand
- ASUS
- Category
- Motherboard
- Model
- DSEB-D16/SAS
- Part numbers
- 90-MSVC60-G0UAY00Z, DSEB-D16/SAS
- EAN / UPC
- 610839159185, 4719543159187
- Also known as
- ASUS DSEB-D16/SAS LGA 771 (Socket J) SSI EEB
Specifications
26 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82563EB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI-X slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 330.2 mm |
