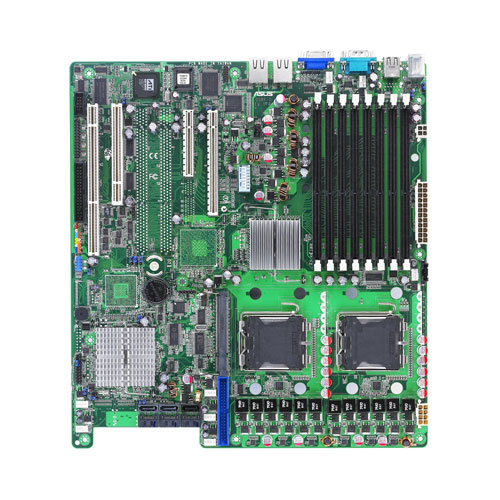

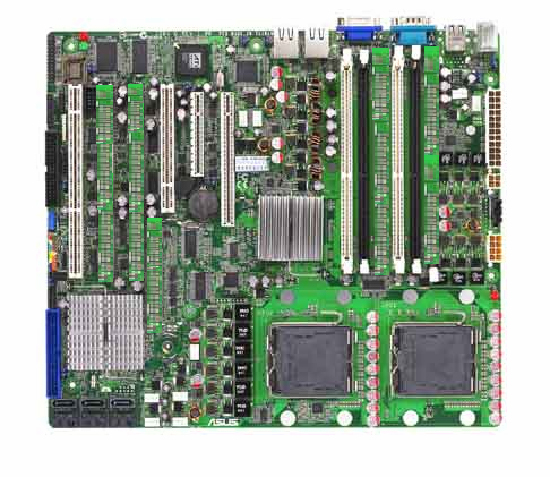

ASUS DSBV-D/C motherboard Intel®
5000V LGA 771 (Socket J) SSI CEB
Model DSBV-D/C
27 specifications
- Processor manufacturerIntel
- Maximum internal memory16 GB
- RAID levels0, 1
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- LAN controllerIntel® 82563EB
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 16 GB
- RAID levels
- 0, 1
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82563EB
- Brand
- ASUS
- Category
- Motherboard
- Model
- DSBV-D/C
- Part number
- DSBV-D/C
- Also known as
- ASUS DSBV-D/C motherboard Intel® 5000V LGA 771 (Socket J) SSI CEB
Specifications
27 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82563EB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Motherboard chipset | Intel® 5000V |
| Certification | - FCC, CFR47 Part 15, Class B - CE, EN55022 & EN55024 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
What people say
Reviews & ratings
ASUS DSBV-D/C motherboard Intel®
No reviews yet
Be the first to tell others how ASUS DSBV-D/C motherboard Intel® works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS DSBV-D/C motherboard Intel®

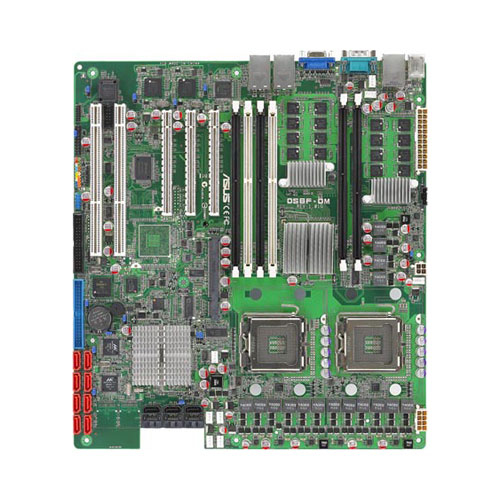

All motherboard comparisons- ASUS DSBV-D/C motherboard Intel® vsASUS DSBF-DM motherboard Intel® 5000P LGA 771 (Socket J) SSI EEBCompare specs

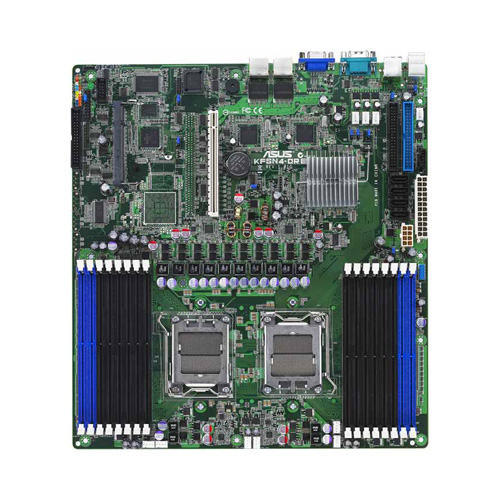

- ASUS DSBV-D/C motherboard Intel® vsASUS KFSN4-DRE/iKVM Socket F (1207) SSI EEBCompare specs
